Siemens SIMATIC IM151-1 STANDARD User Manual

Properties
Interface module IM151-1 STANDARD (6ES7151-1AA06-0AB0)
Manual, 07/2015, A5E01075950-AD
9
Block diagram

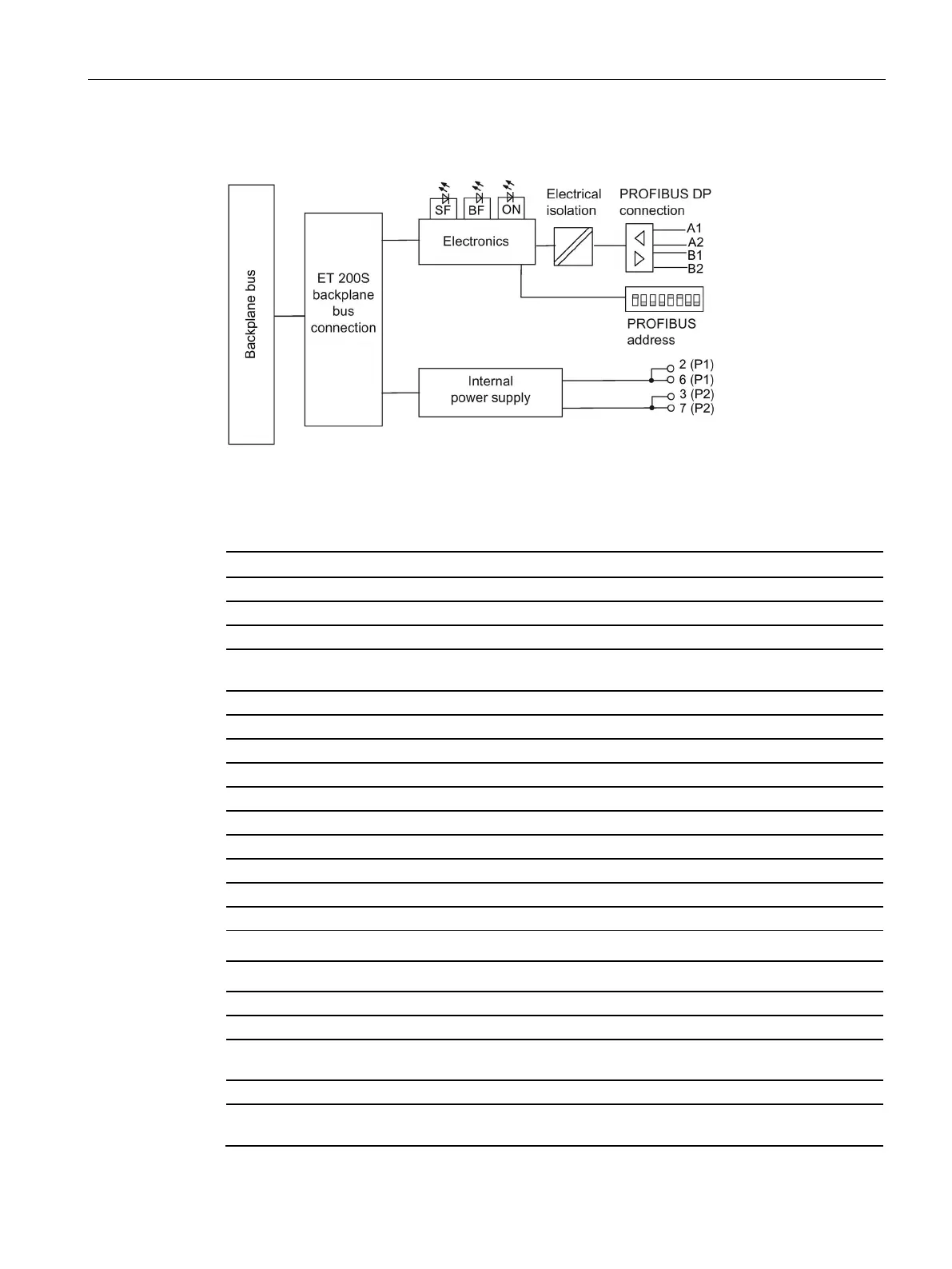

Figure 1-1 Block diagram for the IM151-1 STANDARD interface module
Technical specifications of IM151-1 STANDARD (6ES7151-1AA06-0AB0)
Dimensions and weight
Dimension B (mm) 45
Weight
Approx. 150 g
Module-specific data
Transmission rate 9.6; 19.2; 45.45; 93.75; 187.5; 500 kBd, 1.5; 3; 6;
12 Mbps
Bus protocol
PROFIBUS DP
Interface
RS 485
SYNC capability
Yes
FREEZE capability
Yes
Manufacturer ID
806A
H
Direct data exchange
Yes
Isochronous operation
No
Parameter length
27 bytes
Address space
244 bytes I/O
Option handling
• With reserve module
Yes
• Without reserve module
Yes
I&M data
Yes
Firmware update
Via PROFIBUS DP with STEP 7
Max. output current of the PROFIBUS DP inter-
face (5, 6)
80 mA
Voltages, currents, potentials
Rated supply voltage of the electronic compo-
nents (1L+)
24 V DC
