1.3 Construction of the devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200
14 Operating Instructions, 06/2014, A5E31298376-AB
1.3.2
IFP1500, IFP1900, IFP2200 Touch
This section describes the design of the monitor and touch devices, using the IFP1500
Touch as an example.

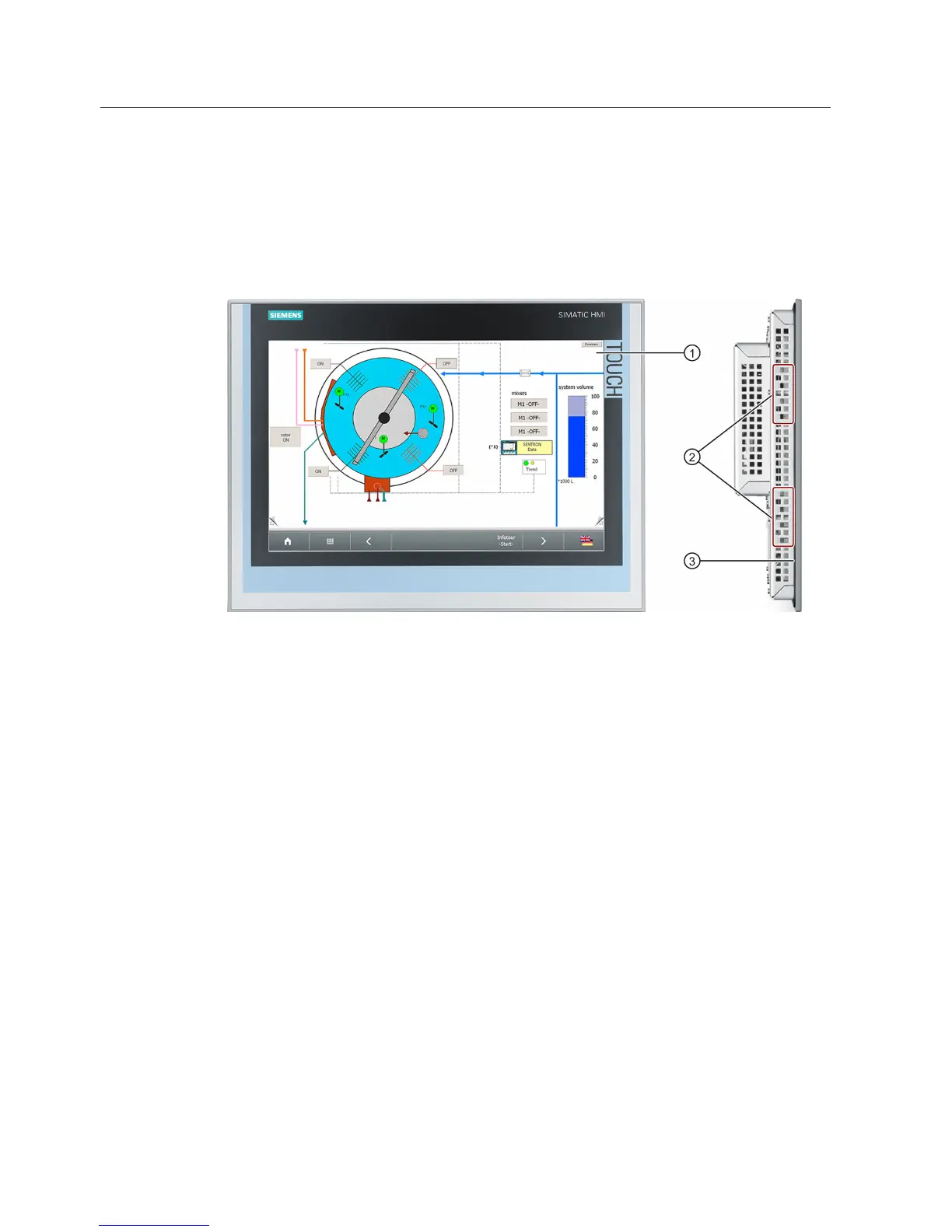

Front view and side view
①
Display/touch screen
②
Recesses for mounting clamps
③
Mounting seal
Rear view
See section "IFP1900, IFP2200 Multitouch".
