Siemens SIMATIC Industrial Flat Panel IFP1500

Technical information
7.3 Dimension drawings
Industrial Flat Panel IFP1500, IFP1900, IFP2200
82 Operating Instructions, 06/2014, A5E31298376-AB
7.3.6

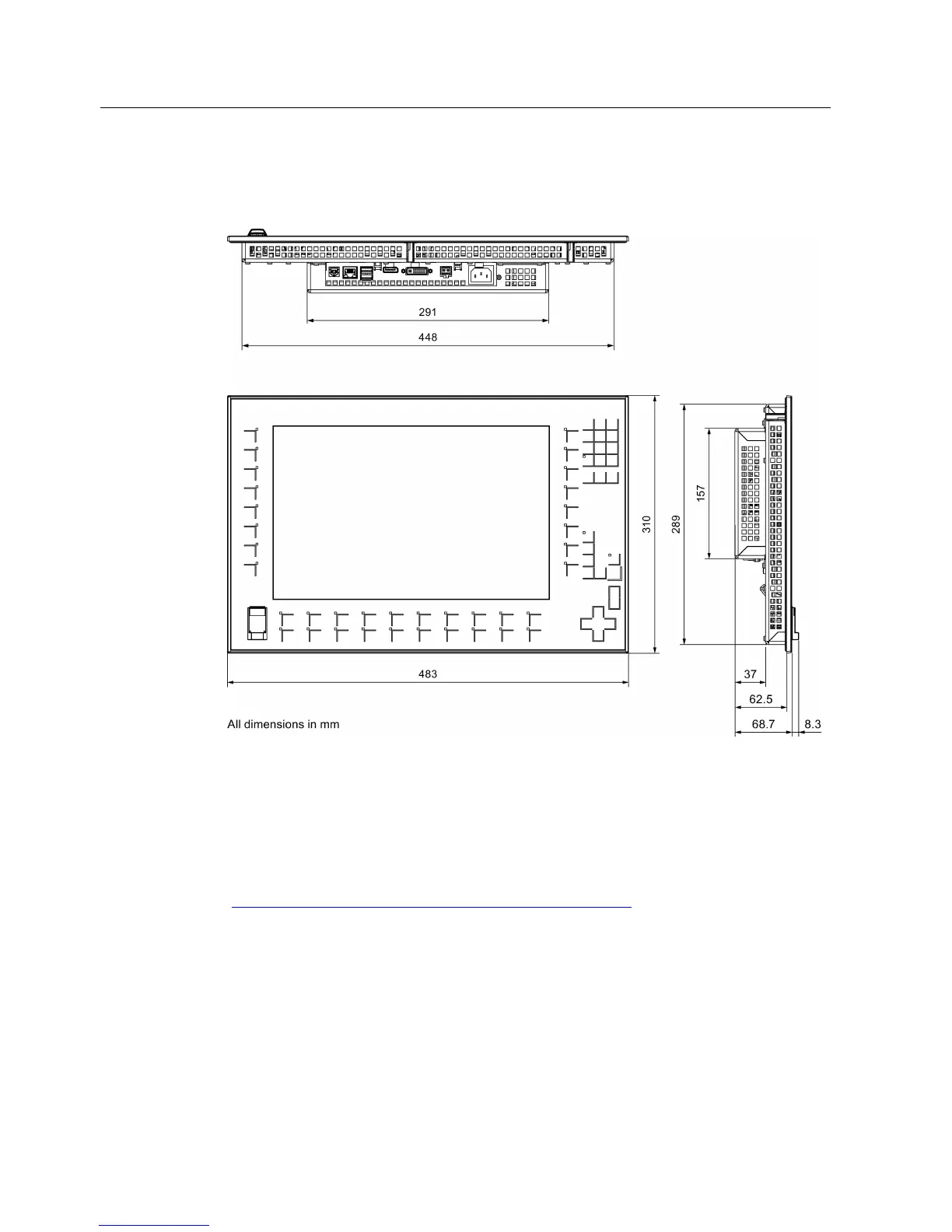

Dimension drawing of the IFP1500 Touch/Key
7.3.7
Dimensions for labeling strips
This section contains the dimensions of the labeling strips for 15" widescreen devices.
Labeling strip templates are available in a Word document on the Internet at:
Labeling strips for 15" widescreen
(http://support.automation.siemens.com/DE/view/en/59000814)
