Siemens SIMATIC Industrial Flat Panel IFP1500

Installing and connecting the device
3.3 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200
Operating Instructions, 06/2014, A5E31298376-AB
45
3.3.5

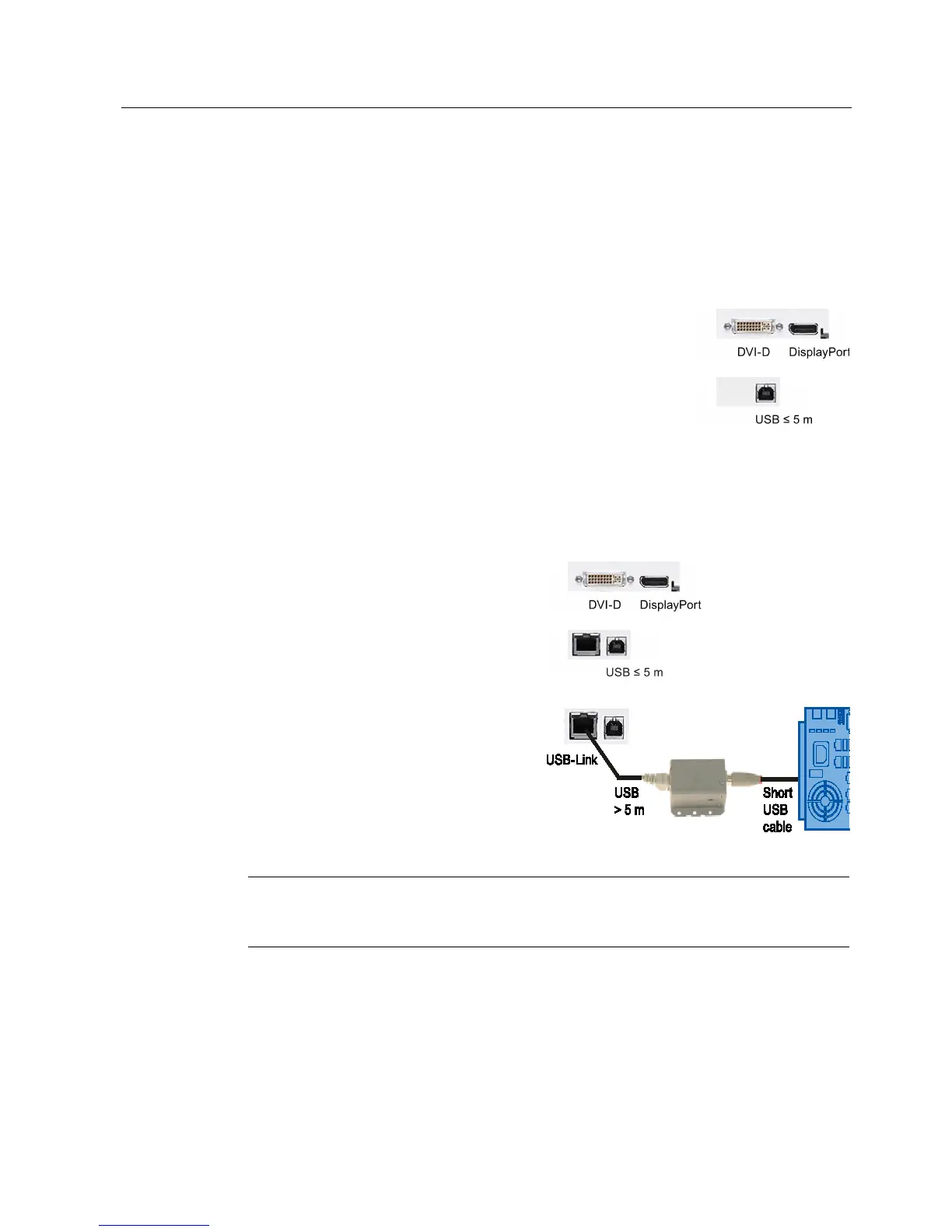

Connecting the device to a PC
3.3.5.1
Standard version
Procedure
1.
Connect the Flat Pan
el and the PC using a DVI or DisplayPort
line.
2.
If using a Touch version, also connect the device and the PC
with a USB line.
3.3.5.2
Extended version
Procedure
1.
Connect the Flat Panel and the P
C using
a DVI or DisplayPort line by means of the
respective interface.
2.
If the distance between the Flat Panel
and the PC is less than 5
m, connect the
Flat Panel and PC using the USB Type B
interface.
3.
If the distance between the Flat Panel
and
the PC is less than 5 m, connect the
Flat Panel and PC with USB transmitter
module by means of the USB
-Link
interface.
Note
Data transfer per USB transmitter module via USB1.1. The data transmission rate
corresponds to Full Speed according to USB1
.1.
