Operating the device
5.5 IPC Wizard functions
Industrial Flat Panel IFP1500, IFP1900, IFP2200
66 Operating Instructions, 06/2014, A5E31298376-AB
Extended Touch touch functionality
Procedure

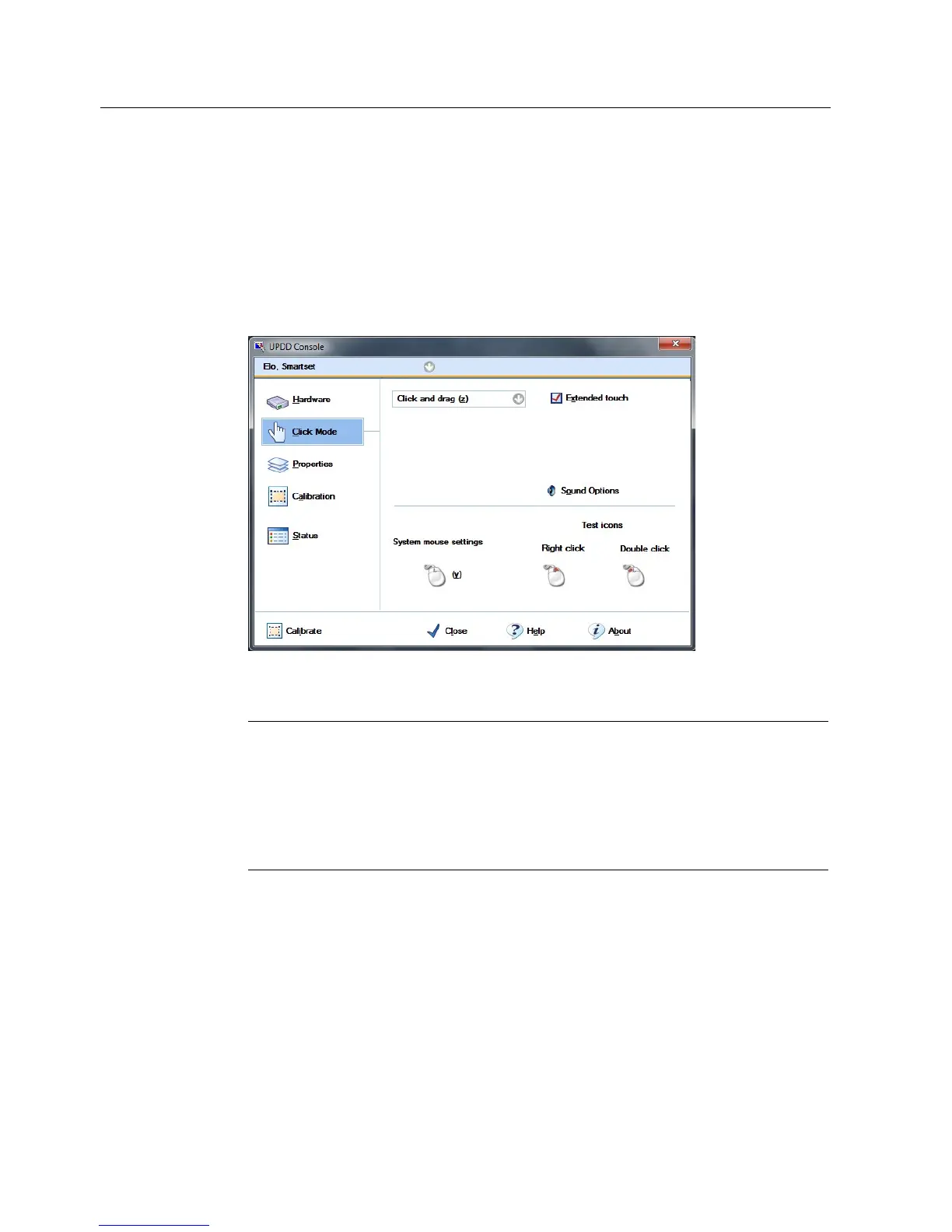

1. Select "Start > Programs > UPDD > Settings".
The "UPDD Console" dialog box opens.
Select the touch controller of the device you want to activate the extended touch
functions for in the header of the dialog.
2. Select the "Click Mode" option.
3. Activate the option "Extended Touch".
s only available for the Windows 7 Ultimate and Windows Embedded
If "Extended touch" is activated, the extended touch functions of Windows 7 are also
available, such as permanently touching the touch screen, which corresponds to the
mouse button function. In addition, the OSK is opened automatically at Windows logon
and at the activation of entry fields.
