7.6 Interface description
Industrial Flat Panel IFP1500, IFP1900, IFP2200
Operating Instructions, 06/2014, A5E31298376-AB
91
Protection against foreign objects and water
Degree of protection in accordance
with IEC 60529
Front When mounted:
• IP65
• Front face only Type 4X/Type 12 (indoor use only)
Rear panel IP20
Touch protection test with standard test probes.
There is no protection against ingress by water.
The degree of protection of the front panel can only be guaranteed if the mounting seal is
properly installed at the mounting cut-out and the cover flap of the USB interface is closed on
the Touch/Key device.
Degree of pollution / overvoltage category according to IEC 61131
● Degree of pollution 2
● Overvoltage category II

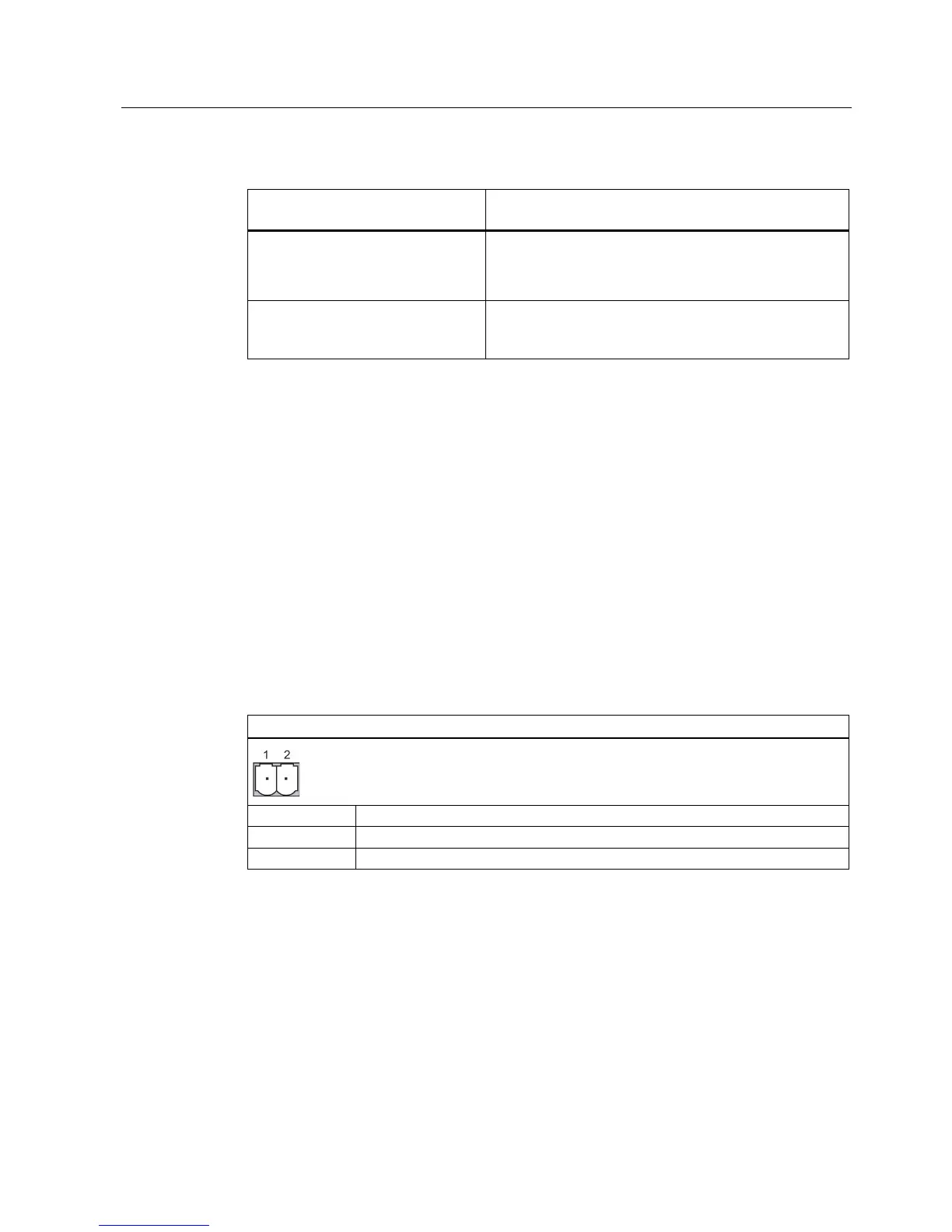

Interface description
7.6.1
1
GND is internally connected to signal ground on DVI, for example, device ground and housing.
