Siemens SIMATIC Industrial Flat Panel IFP1500

Overview
1.3 Construction of the devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200
16 Operating Instructions, 06/2014, A5E31298376-AB

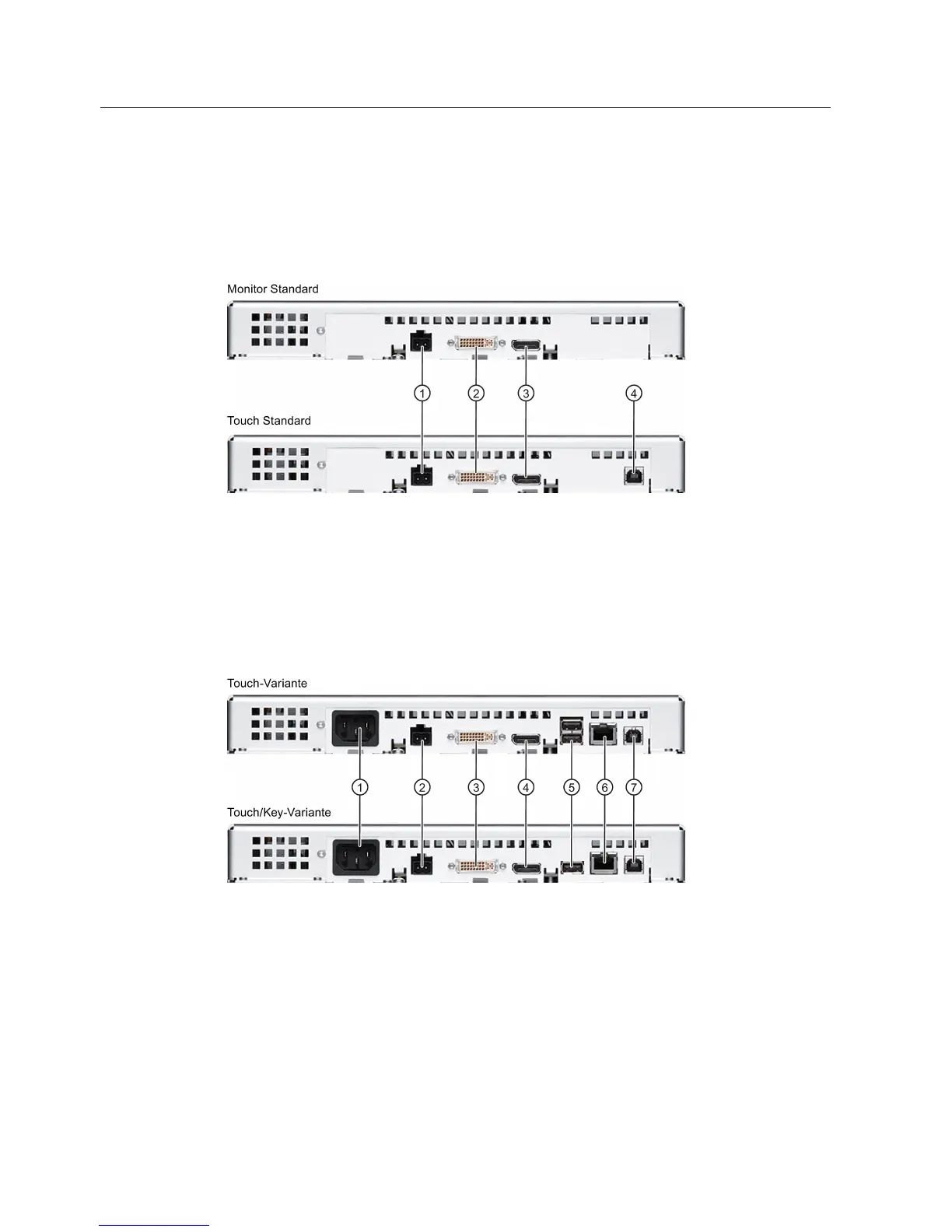

1.3.4
Interfaces
1.3.4.1
Standard versions
①
X80 connector for 24 V DC power supply
②
X71 DVI-D interface
③
X70 DisplayPort interface
④
X60 USB Type B
1.3.4.2
Extended versions
①
Connection for 100 to 240 V AC power
supply
⑤
X61/X62 USB Type A
②
X80 connector for 24 V DC power supply
⑥
X63 USB link interface
③
X71 DVI-D interface
⑦
X60 USB Type B
④
X70 DisplayPort interface
