Installing and connecting the device
3.3 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200
Operating Instructions, 06/2014, A5E31298376-AB
37
3.3
Connecting the device
3.3.1
Overview

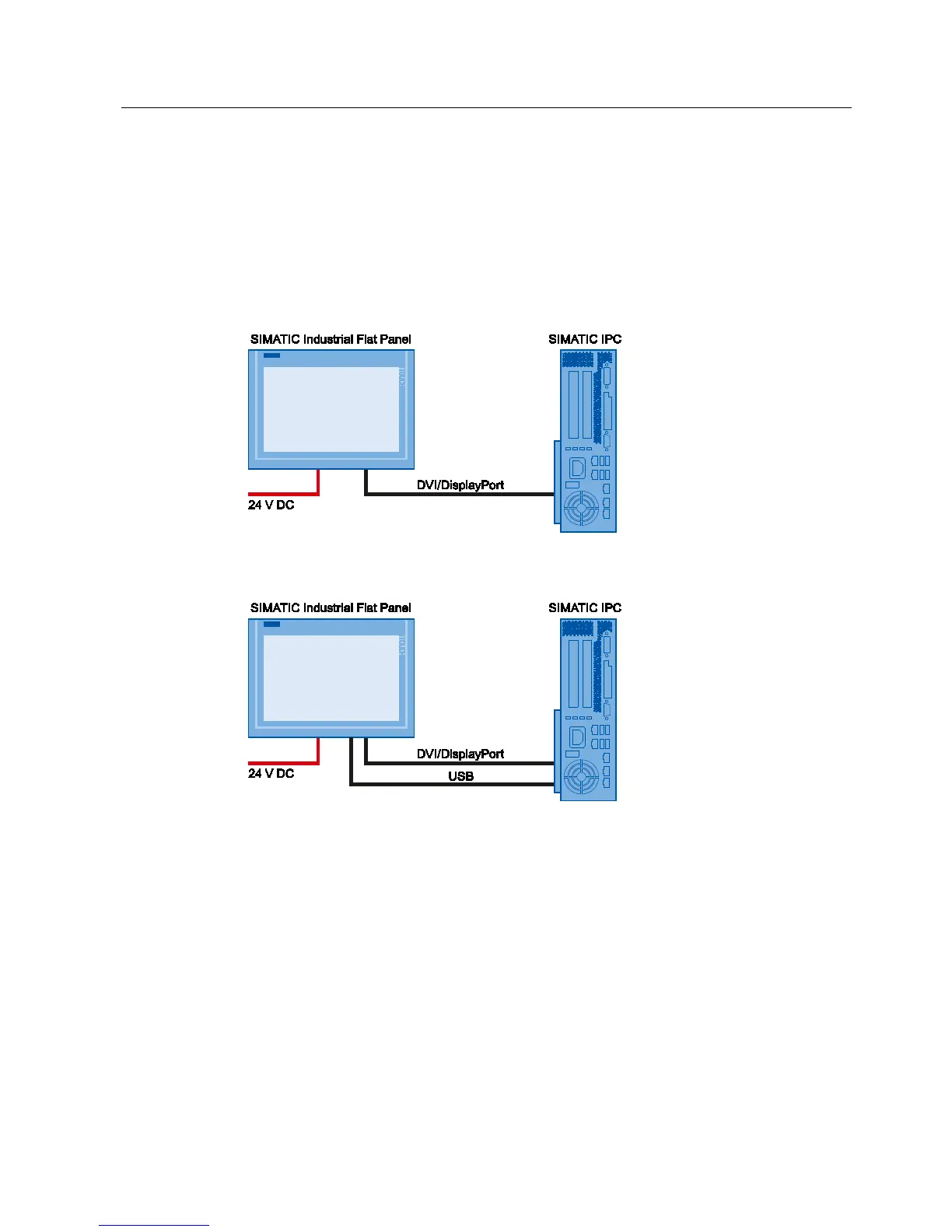

Connection diagram for standard monitor version
Connection diagram for standard touch version
