7.6 Interface description
Industrial Flat Panel IFP1500, IFP1900, IFP2200
94 Operating Instructions, 06/2014, A5E31298376-AB
7.6.4

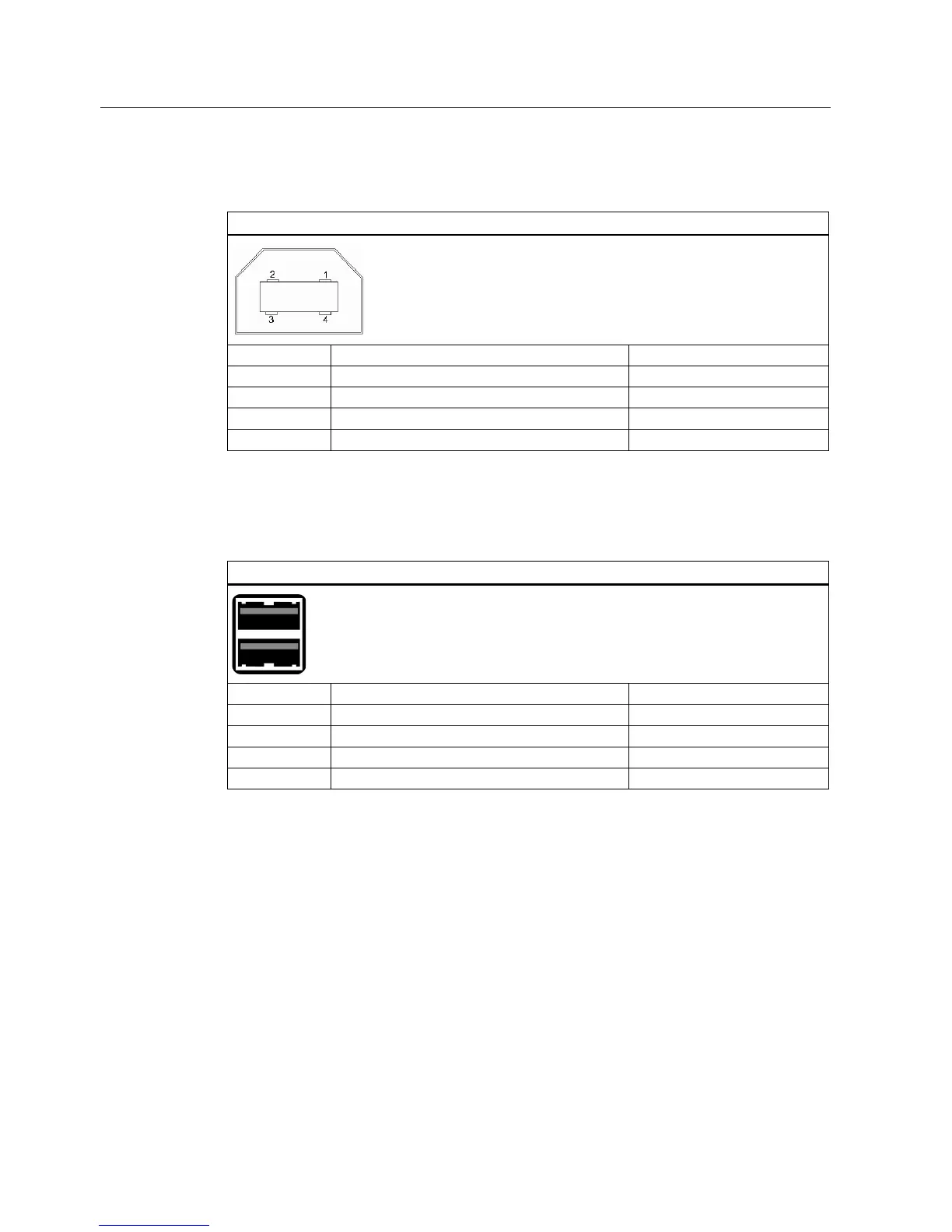

USB interface, Type B
USB interface, Type B
Pin No.
Abbreviation
Signal
1
VCC
+ 5 V (fused)
2
- Data
Data channel
3
+ Data
Data channel
4
GND
Ground
7.6.5
USB hub, Type A
USB port
Pin No.
Short name
Signal
1
VCC
+ 5 V (fused)
2
- Data
Data channel
3
+ Data
Data channel
4 GND Ground
