3.2 Mounting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200
34 Operating Instructions, 06/2014, A5E31298376-AB
Position of the mounting clips or brackets
Types of mounting clips and mounting brackets
You can mount the device as follows:
● Device with 15", 19" or 22" display:
With 12 mounting clips, steel (included in the product package)
● Device with 15", 19" or 22" display:
With 6 mounting brackets (available as accessories)

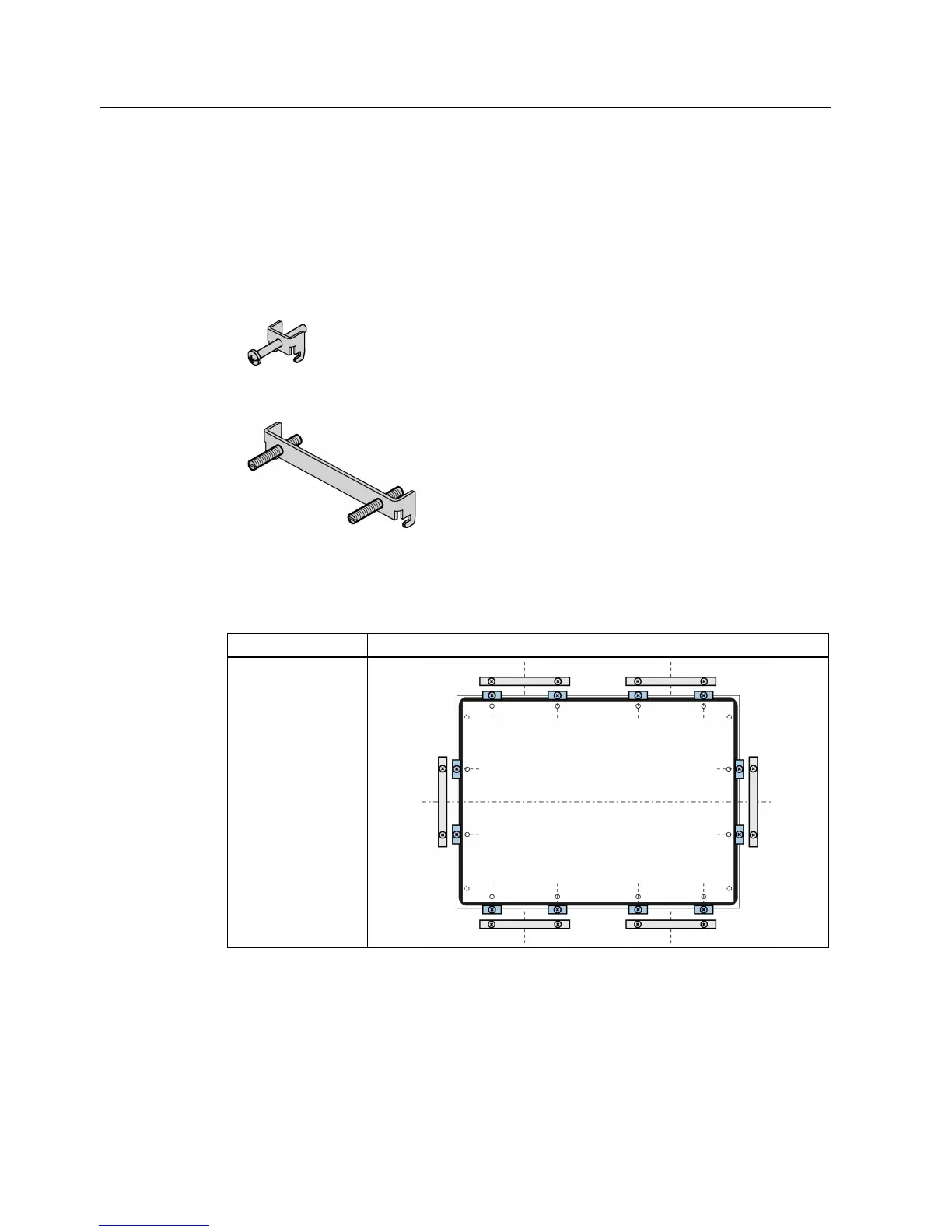

Positions of the mounting clips or mounting brackets
To achieve the degree of protection for the device, the mounting clips or brackets must be
affixed to the positions shown below.
Touch screen device
with:
• 15" display
• 19" display
• 22" display
