Installing and connecting the device
3.3 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200
44 Operating Instructions, 06/2014, A5E31298376-AB
120 V power supply
Use a flexible cable with the following characteristics:
● UL approval
● CE marking
● Type SJT with three conductors
● At least 18 AWG (0.75 mm
2
) conductor cross-section
● Maximum 4.5 m length
● Parallel grounded safety plug 15 A, min. 125 V
230 V power supply
Use a flexible cable with the following characteristics:
● UL approval
● CE marking
● Type SJT with three conductors
● At least 18 AWG (0.75 mm
2
) conductor cross-section
● Maximum 4.5 m length
● Tandem grounded safety plug 15 A, min. 250 V
Procedure

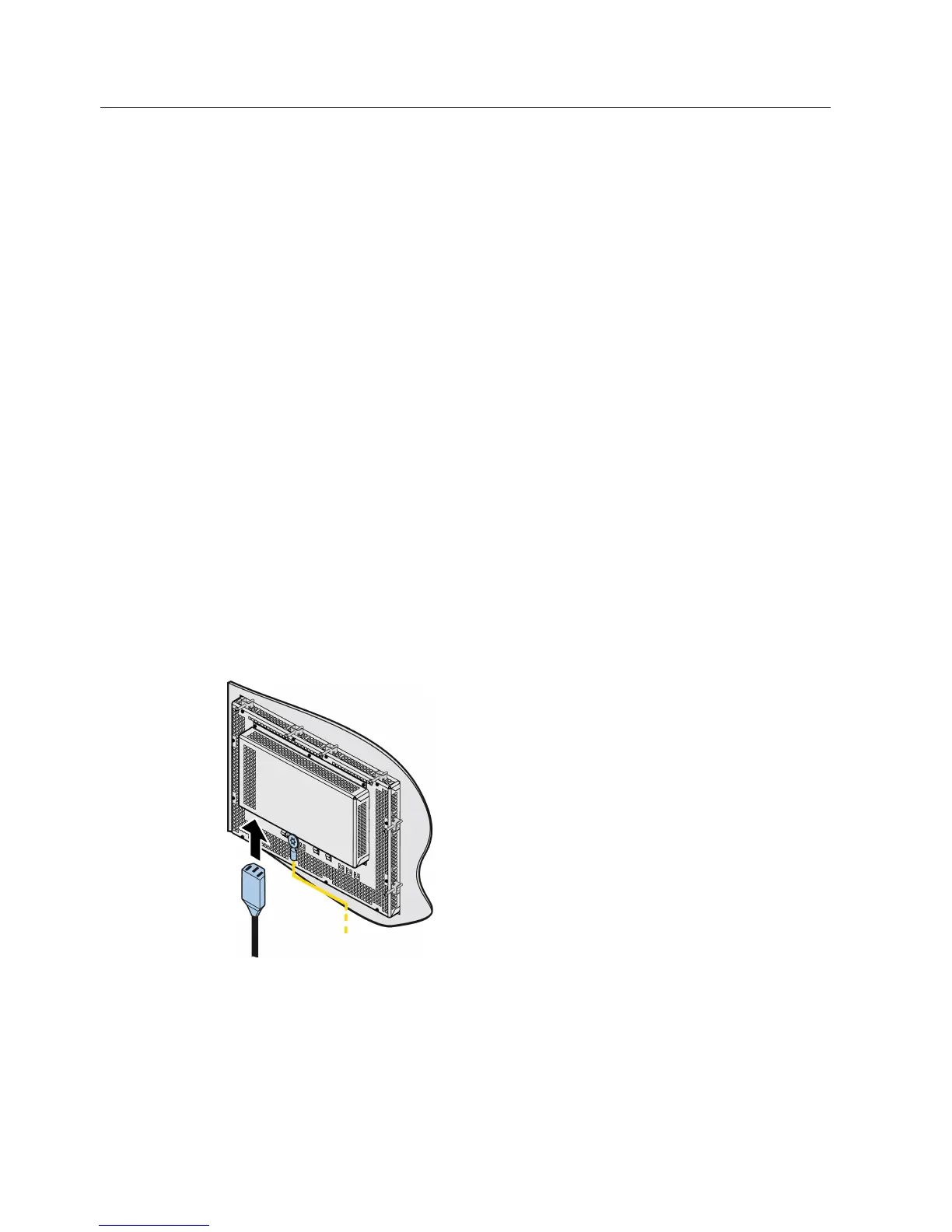

Plug the connector of the supplied power supply
cable in the AC power supply connector of the
device.
