Installing and connecting the device
3.1 Preparing for installation
Industrial Flat Panel IFP1500, IFP1900, IFP2200
28 Operating Instructions, 06/2014, A5E31298376-AB

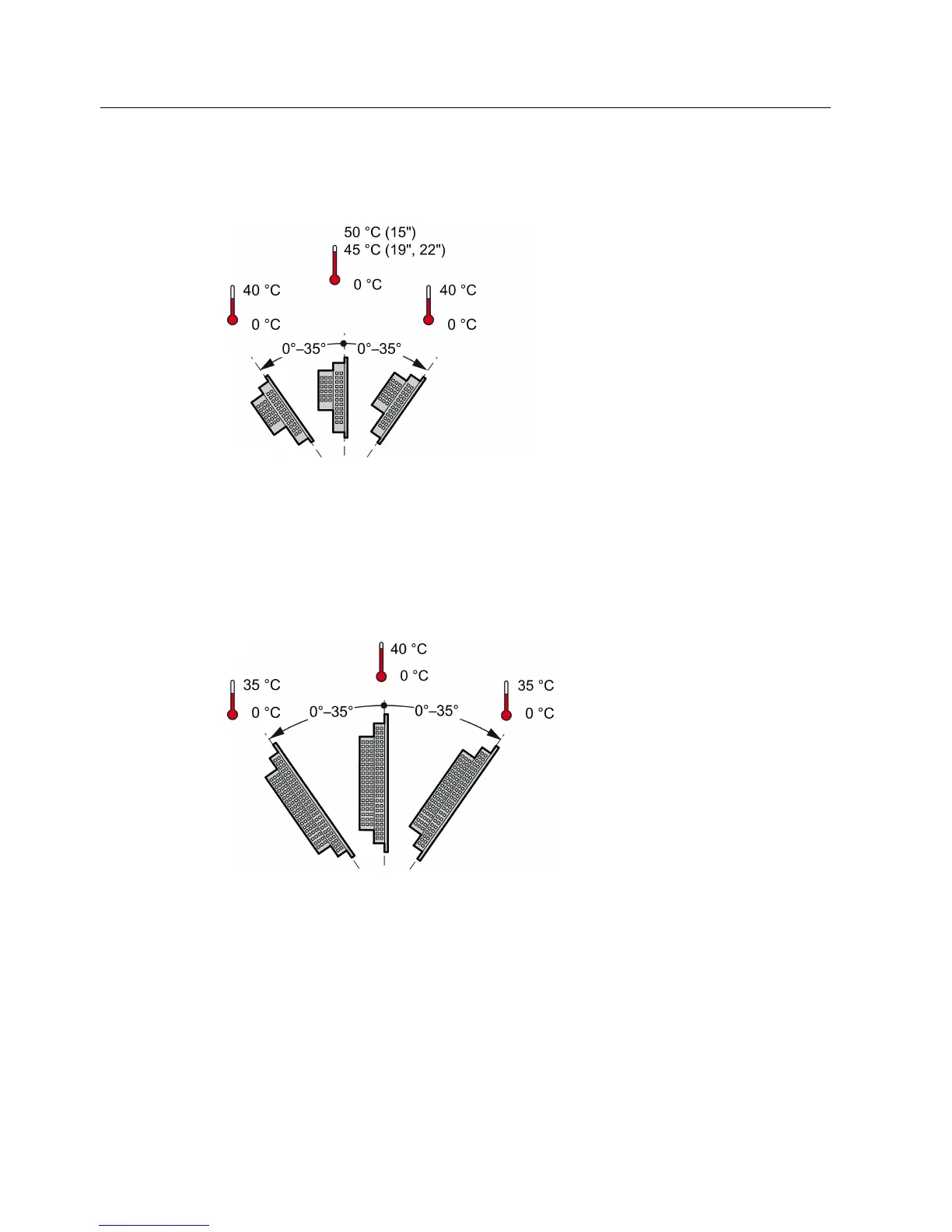

Mounting in horizontal format
All devices are suitable for horizontal mounting positions.
A maximum ambient temperature of +50 °C is permitted for vertical mounting of the IFP1500
(0° tilt angle); a maximum of +40 °C is permitted for inclined mounting.
The ambient temperature for the IFP1900 and IFP2200 when installed vertically should not
exceed +45 °C.
Mounting in vertical format
All monitor and touch versions also support vertical mounting.
A maximum ambient temperature of +40 °C is permissible for vertical mounting (0° tilt angle);
a maximum of +35 °C is permitted for inclined mounting.
