Siemens SIMATIC Industrial Flat Panel IFP1500

Installing and connecting the device
3.3 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200
42 Operating Instructions, 06/2014, A5E31298376-AB

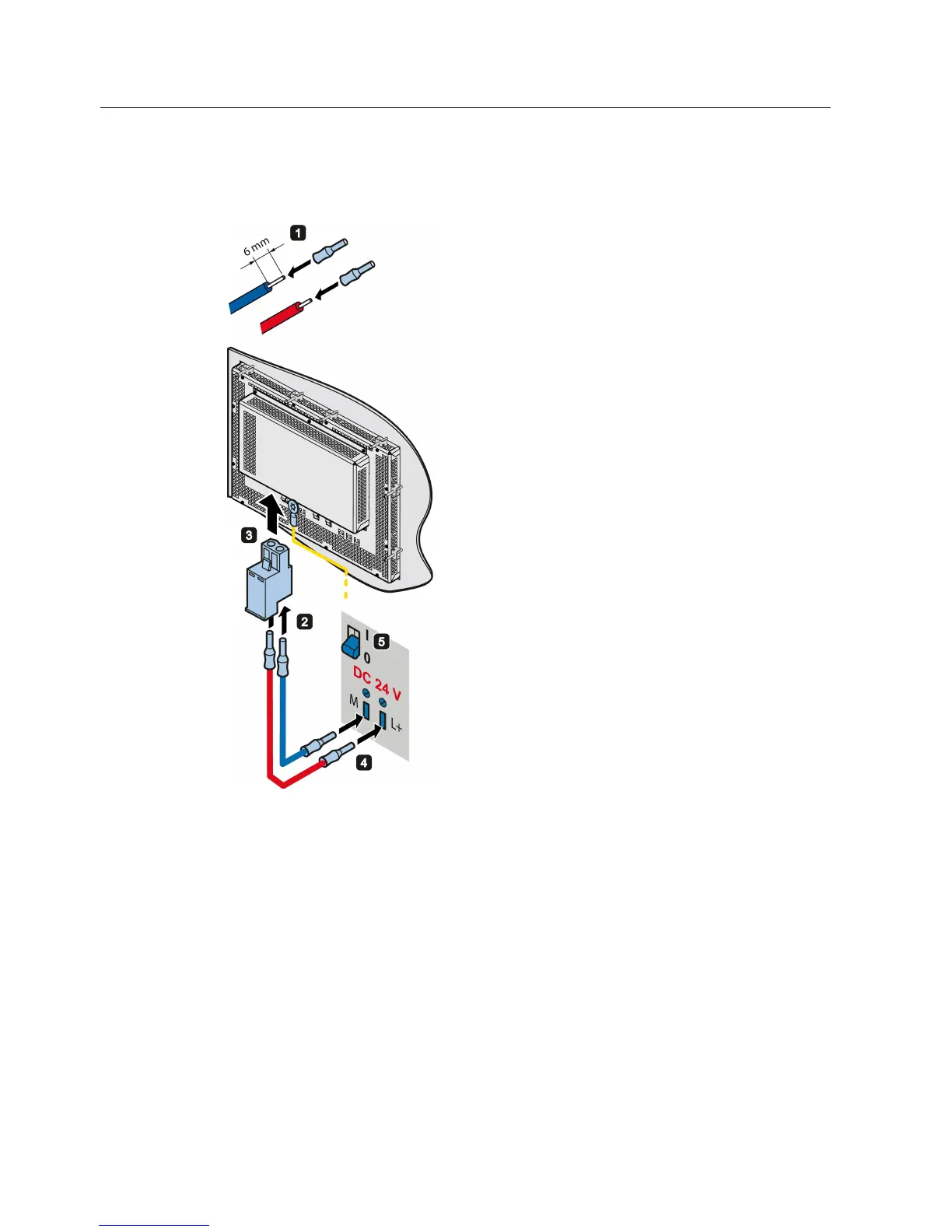

Procedure
1.
Ensure that the cable ends of the
power supply lines are fitted with end
sleeves.
2.
Fasten the end of a connecting cable
L+ and a connecting cable M with the
supplied power supply terminal.
3.
Connect the power supply terminal to
the relevant terminal on the device.
4.
Connect the remaining L+ and M ends
with the respective terminals on the
24 V DC power supply.
5.
Switch on the 24 V DC power supply.
