Technical specifications

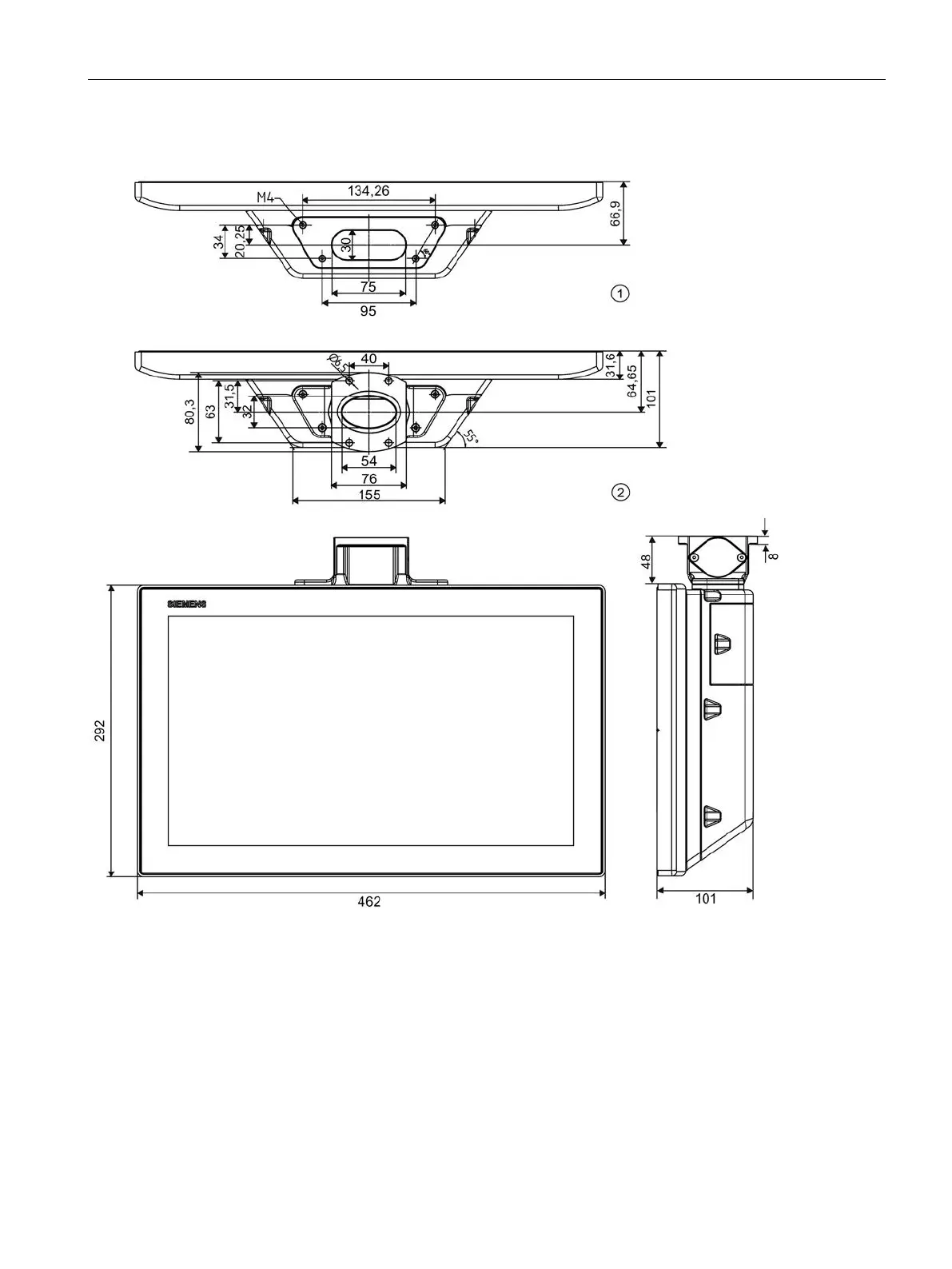

9.3 Dimension drawings
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
115
Prepared for support arm
Without base adapter
With base adapter
All dimensions in mm
