Technical specifications

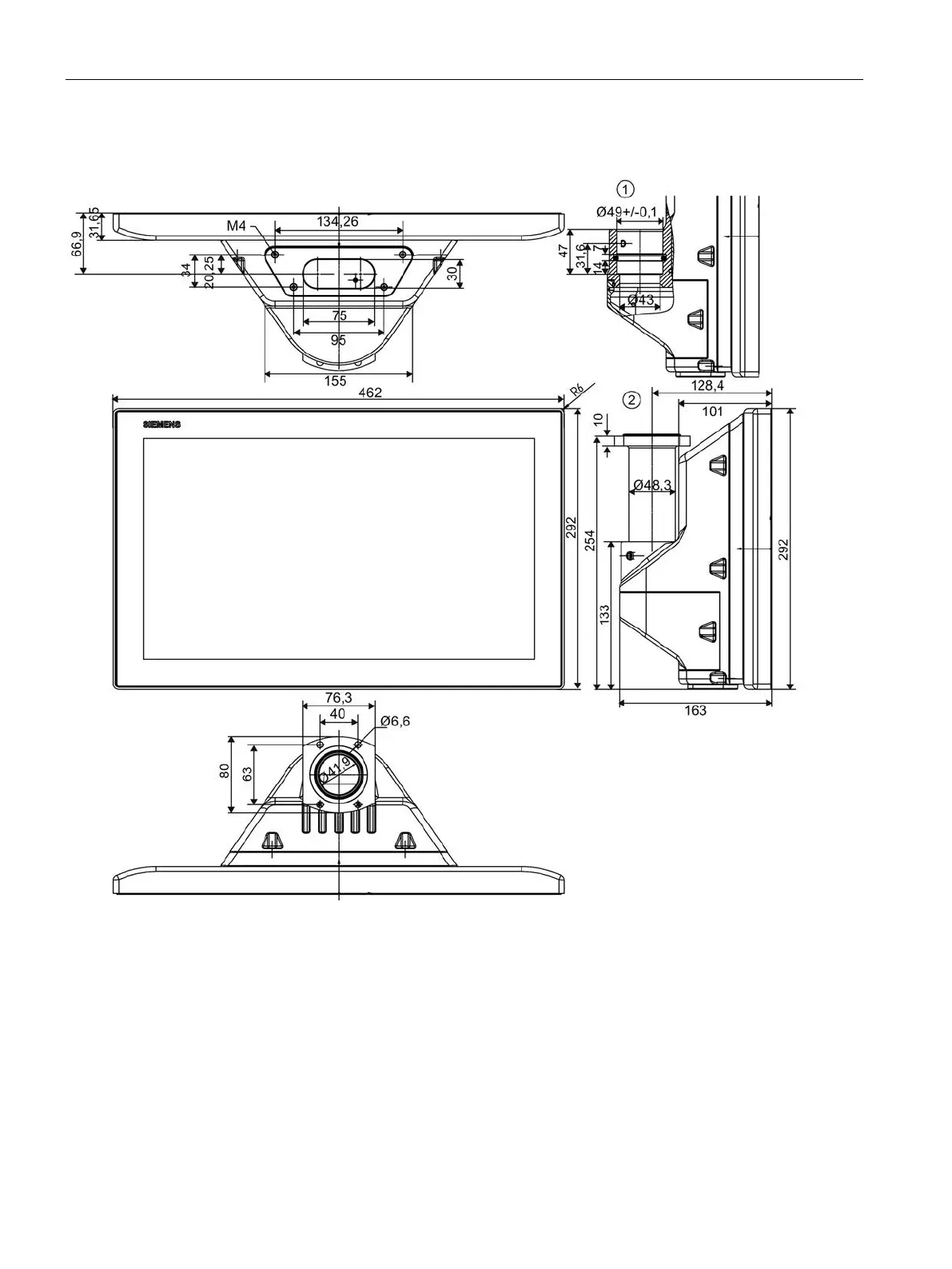

9.3 Dimension drawings
SIMATIC IPC477E PRO
116 Operating Instructions, 08/2017, A5E39912462-AA
Prepared for support arm and extension components
Without flange mount
With flange mount
All dimensions in mm
