Mounting and connecting the HMI device
4.3 Mounting the device
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
39
The following description shows an example of how to attach the PRO device to a support
arm system using the optionally available Siemens flange mount
⑦. Mounting to a 48.3 mm
round tube
⑧ that fits the opening of the PRO device is performed in a similar fashion.
If you apply
torque to tighten the screws of the backplane cover and the terminal
compartment cover or the screws for fastening the device to a support arm or pedestal, the
threads of the enclosure, intermediate plate or support arm may be damaged.
If you tighten the screws with a torque that is
, the device is not sealed.
1. Remove the screws ⑤ of the terminal compartment cover.
2. Open the terminal compartment cover and set it aside safely.

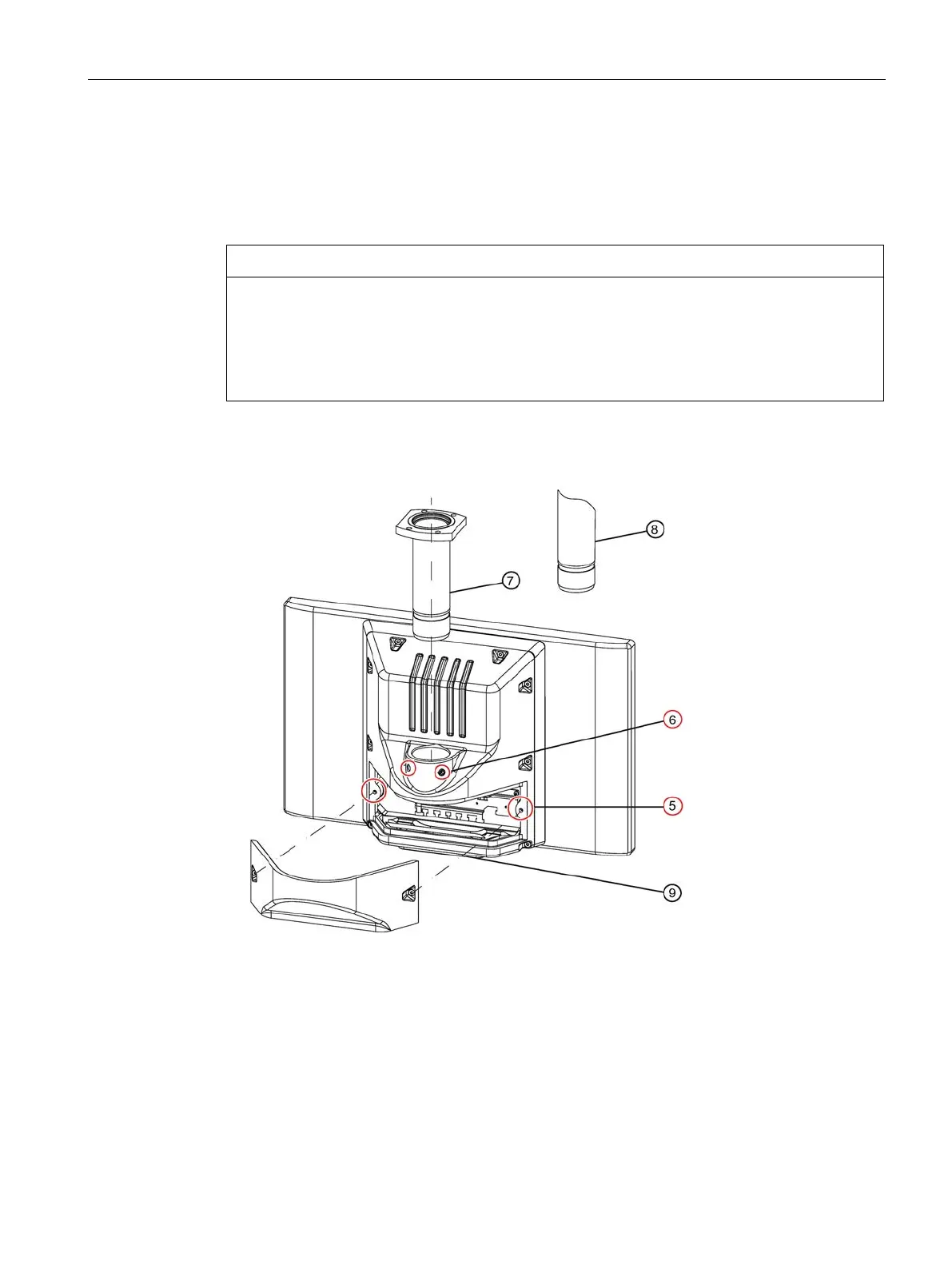

Screws for terminal compartment cover
Flange mount (not included in the product package; see System components (Page 15))
Third-party round tube (∅ 48 mm)
Cover plate (Included in the product package; see Accessory kit (Page 14))
