16.1 Motherboard
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
157

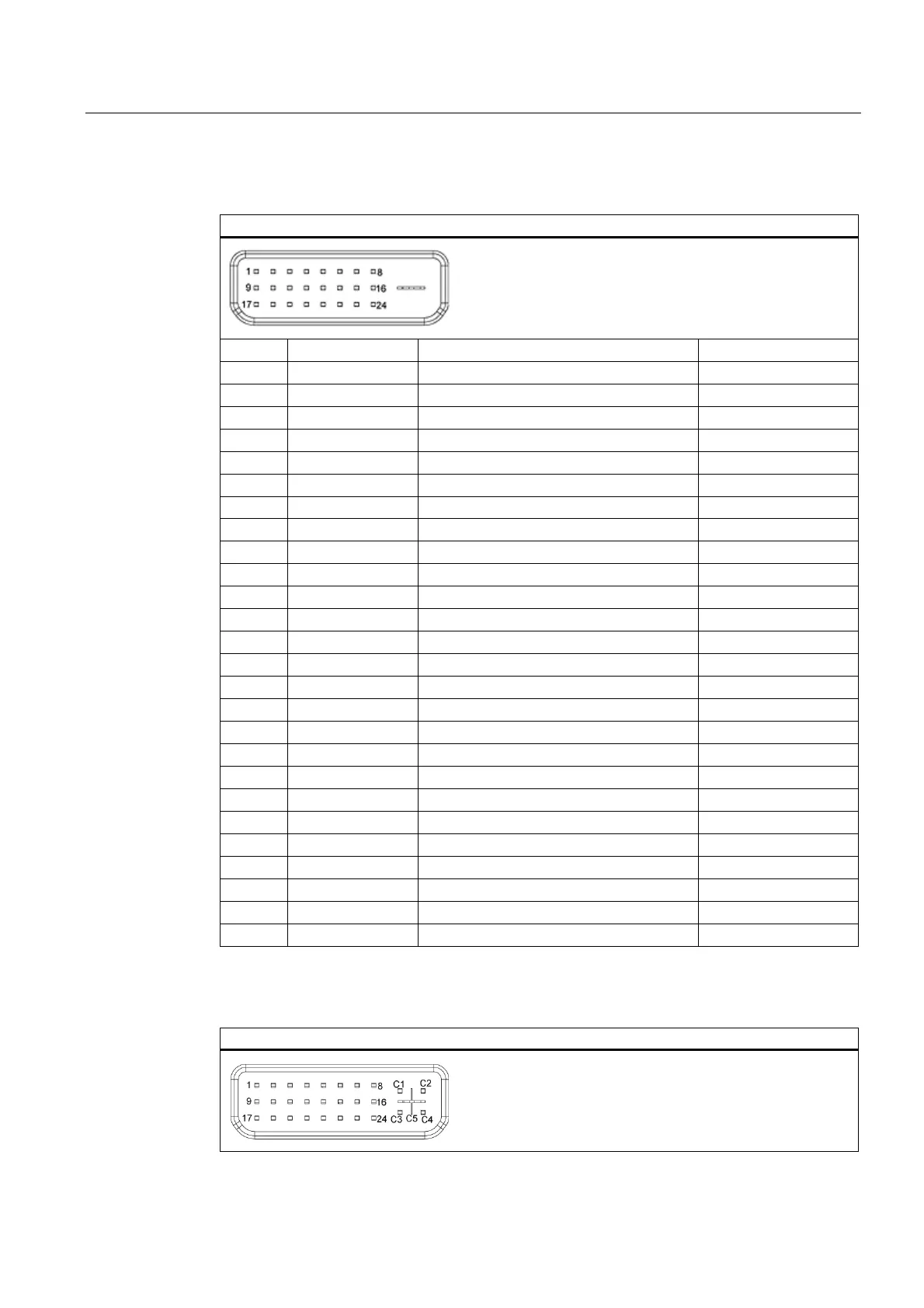

DVI-D interface of the DVI-I / DVI-D adapter or of the DP / DVI-D adapter
DVI interface
Pinno. Short name Meaning Input / output
S GND Ground –
S1 GND Ground –
1 TX2N TDMS data 2- Output
2 TX2P TDMS data 2+ Output
3 GND Ground –
4 NC Not used –
5 NC Not used –
6 DDC CLK DDC clock Input / output
7 DDC CLK DDC data Input / output
8 VSYNC Vertical synchronizing pulse Output
9 TX1N TDMS data 1- Output
10 TX1P TDMS data 1+ Output
11 GND Ground –
12 NC Not used –
13 NC Not used –
14 +5 V +5 V Output
15 GND Ground –
16 MONDET Hotplug detect Input
17 TX0N TDMS data 0- Output
18 TX0P TDMS data 0+ Output
19 GND Ground –
20 NC Not used –
21 NC Not used –
22 GND Ground –
23 TXCP TDMS clock + Output
24 TXCN TDMS clock - Output
DVI-I port
DVI-I port
