Dimension drawings
15.2 Dimensional drawings for installation of expansion modules
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
145
15.2 Dimensional drawings for installation of expansion modules
Dimensions:
mm
inch
DIM A
312
12.28

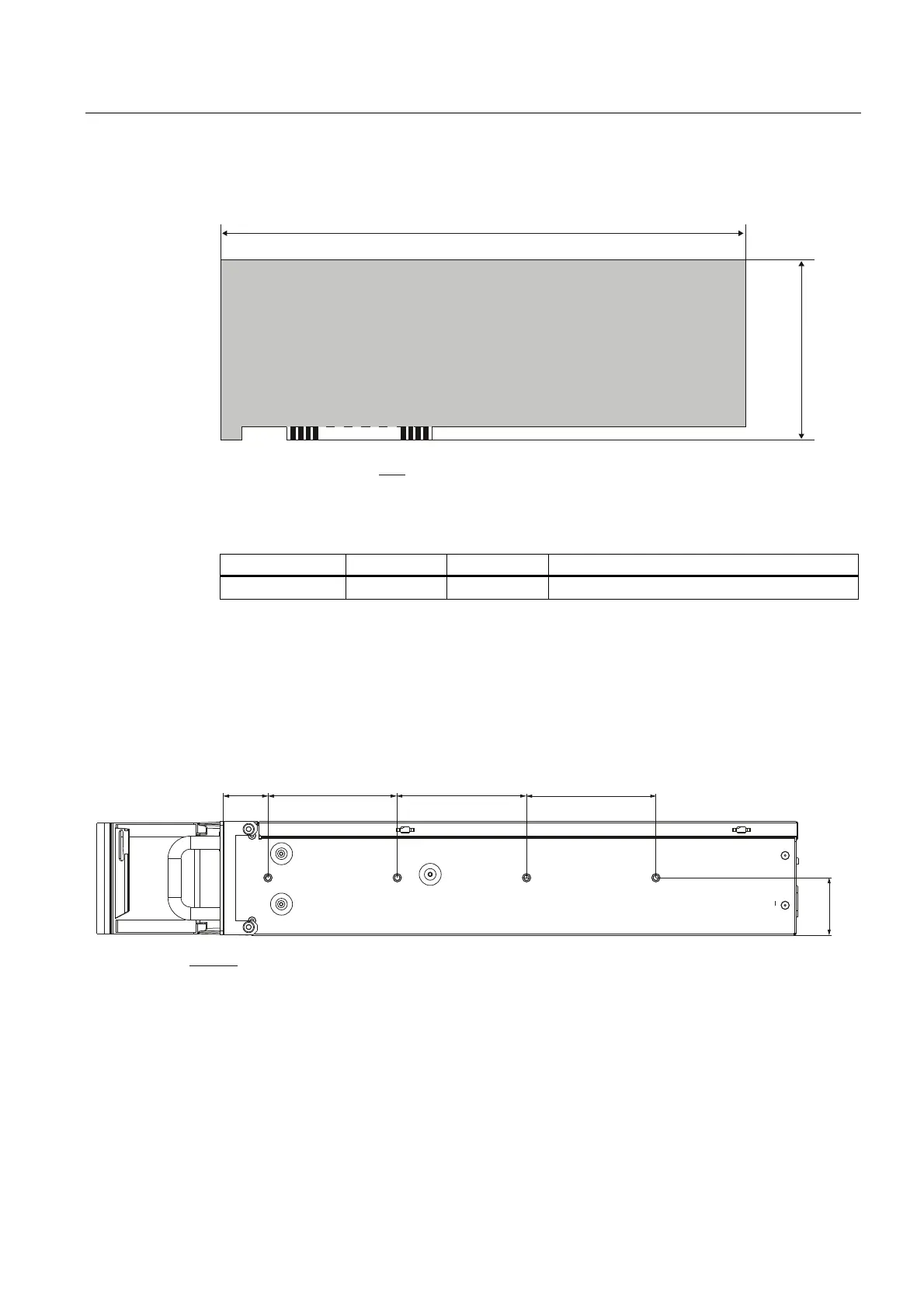

Figure 15-2 Maximum mountable PCI/PCIe module (shown without slot bracket and retainer)
PCI PCIe Meaning
DIM A (mm/inch) 106,68 / 4,2 111,15 / 4,38 Lower edge of module to upper edge of module
15.3 Dimensional drawing for the use of telescopic rails
Below you will find the dimensions of the telescopic rails from the Rittal company:
● Type RP 3659.180 for 600 mm cabinet
● Type RP 3659.190 for 800 mm cabinet
Units of
measurement:
mm
Inch
34,83 100 100 100
44,4
3.97 3.973.97
1.37
1.75
Figure 15-3 Dimensional drawing for the use of telescopic rails
