Expansions and parameter assignment
10.4 Drive racks and storage media
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
85

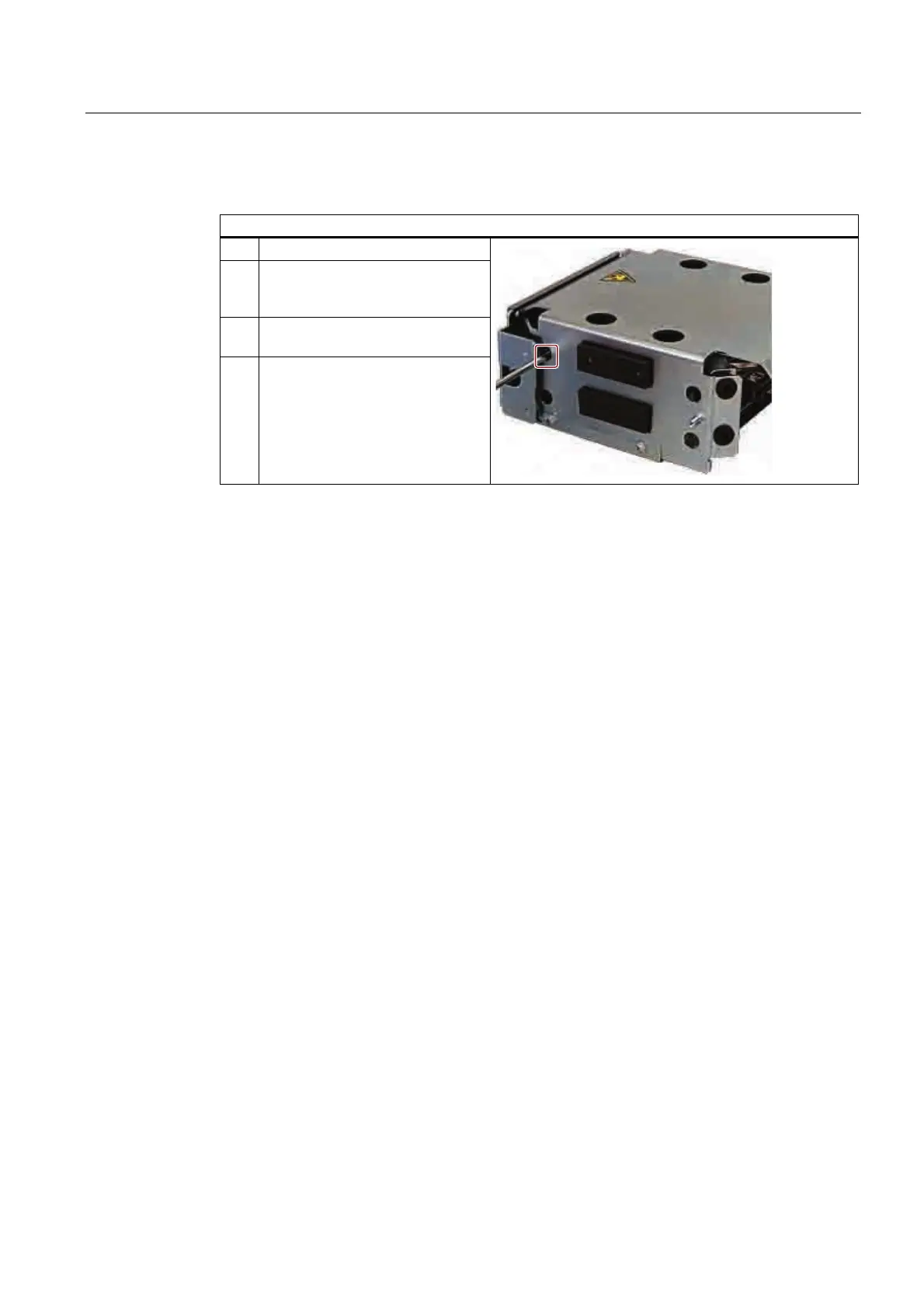

Vibration damped drive rack: Installing a HDD directly in the drive rack
Steps for mounting an HDD
1. Push the HDD into the drive rack.
2. Secure the HDD to the drive rack
with two screws on the right and
two on the left.
3. Connect the power and data cables
to the HDD.
4. Install the drive bay again.
Vibration damped drive rack: Removing the HDD for the drive rack
Perform the tasks describe above in reverse order.
10.4.5 Installation and removal of CF card rack
CF card rack in the drive rack
You can install and remove CF card racks in the following drive racks:
Vibration damped drive rack
Drive rack for a removable rack
Preparations
9. If necessary, remove the CF card from the CF card rack.
10. Remove the drive rack from the device as described in the section
5Installation and
removal of drive racks (Page
280).
