Detailed descriptions
16.2 Bus boards
SIMATIC IPC647C
168 Operating Instructions, 12/2010, A5E02669337-02

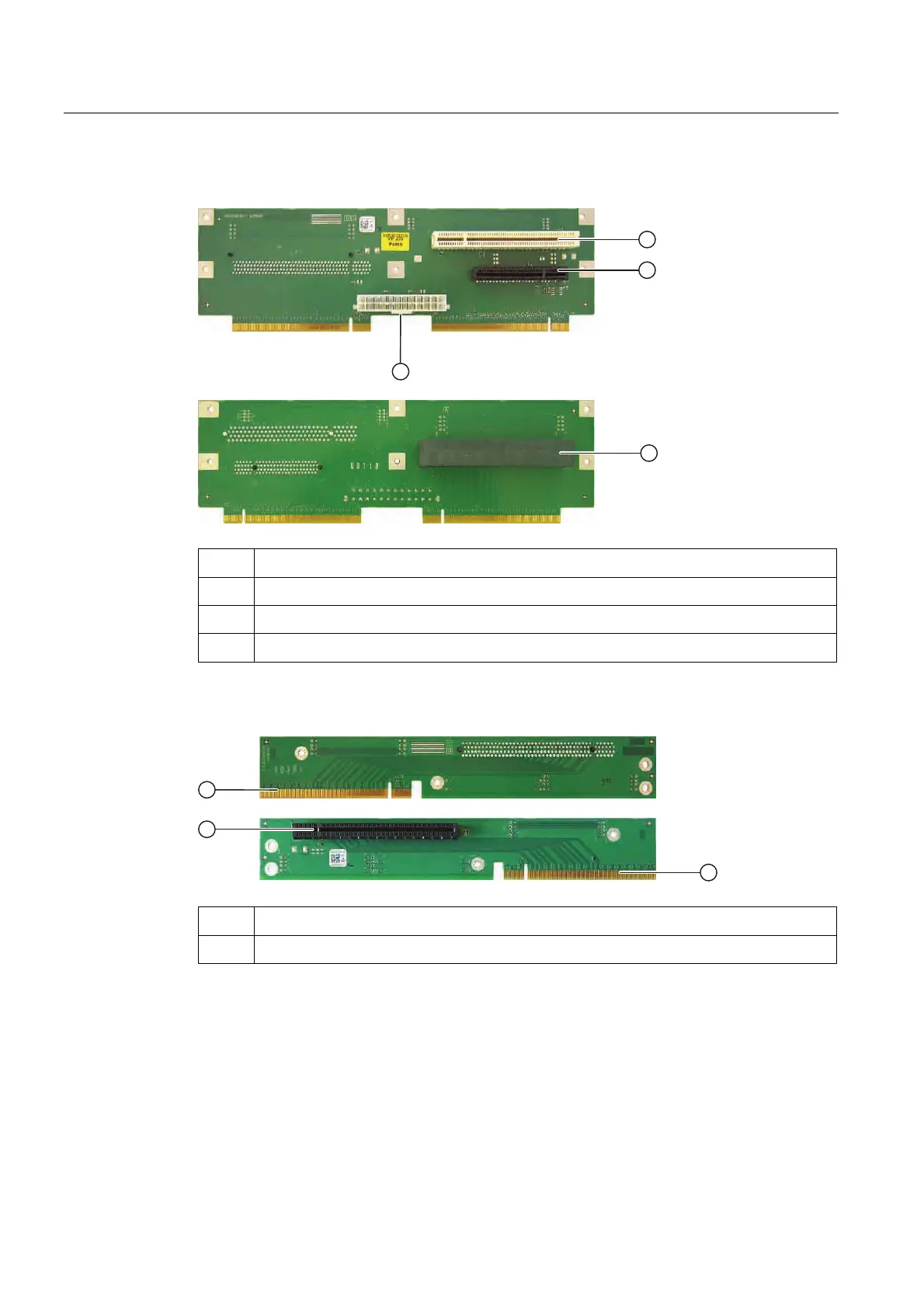

Motherboard: 1 x PCI and 1 x PCIe x4 and 1 x PCIe x16 (angled)
2
1
3
4
①
PCI edge-socket connector
②
PCIe x4 edge-socket connector
③
BTX power connector
④
PCIe x16 edge-socket connector (angled) for piggyback
Piggyback
1
2
1
①
PCIe x16 plug-in contact for edge-socket connector
②
PCIe x16 edge-socket connector
Can host expansion modules conforming to PCI specification (Rev. 2.3) or PCI specification
1.0a. All PCI/PCIe x16 edge-socket connectors are master-capable. Power is directly
supplied to the expansion modules via the bus board connection.
