6.4 Connecting the strain relief for network cables
SIMATIC IPC647C
38 Operating Instructions, 12/2010, A5E02669337-02

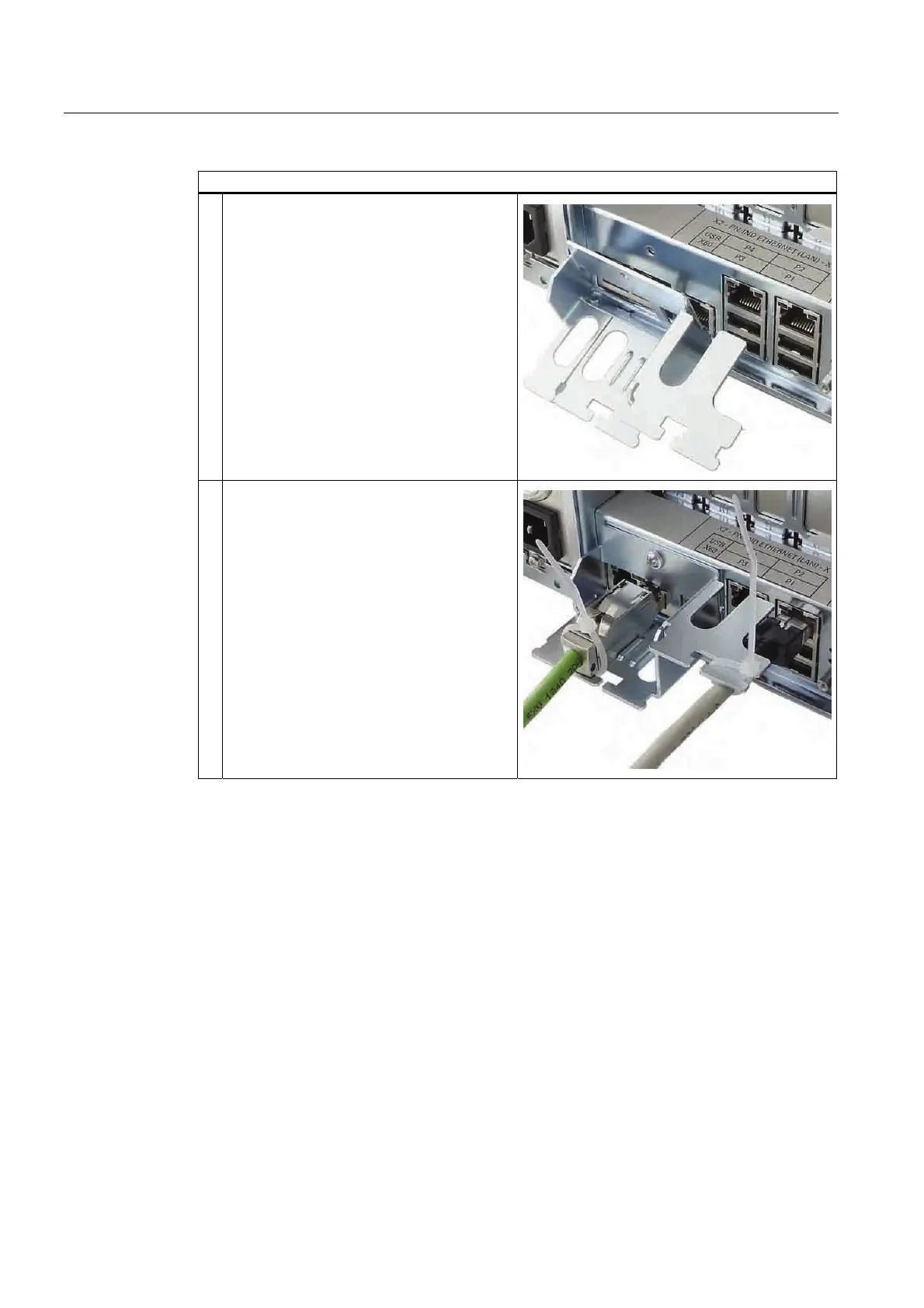

Steps for connecting the strain relief
2. Install the plate for the Profinet and Ethernet
connectors. Use the retaining screw of the
PROFINET interface plate for this purpose.
3. Install the Profinet and Ethernet connectors at
the respective positions and fasten the cables
with cable ties.
