Expansions and parameter assignment
10.4 Drive racks and storage media
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
79
Drive rack
There are two drive racks for installation:
● Drive rack for a removable rack
Drive rack with removable racks for carriers with storage media and drives, for example
HDDs and SSDs. A DVD drive or, alternatively, a CF card rack can be mounted directly in
the lower drive bay.
● Vibration damped drive rack
Drive rack containing shock and vibration damped components for mounting HDDs.
DVDs or CF card racks for CF memory cards are mounted in the lower bay.

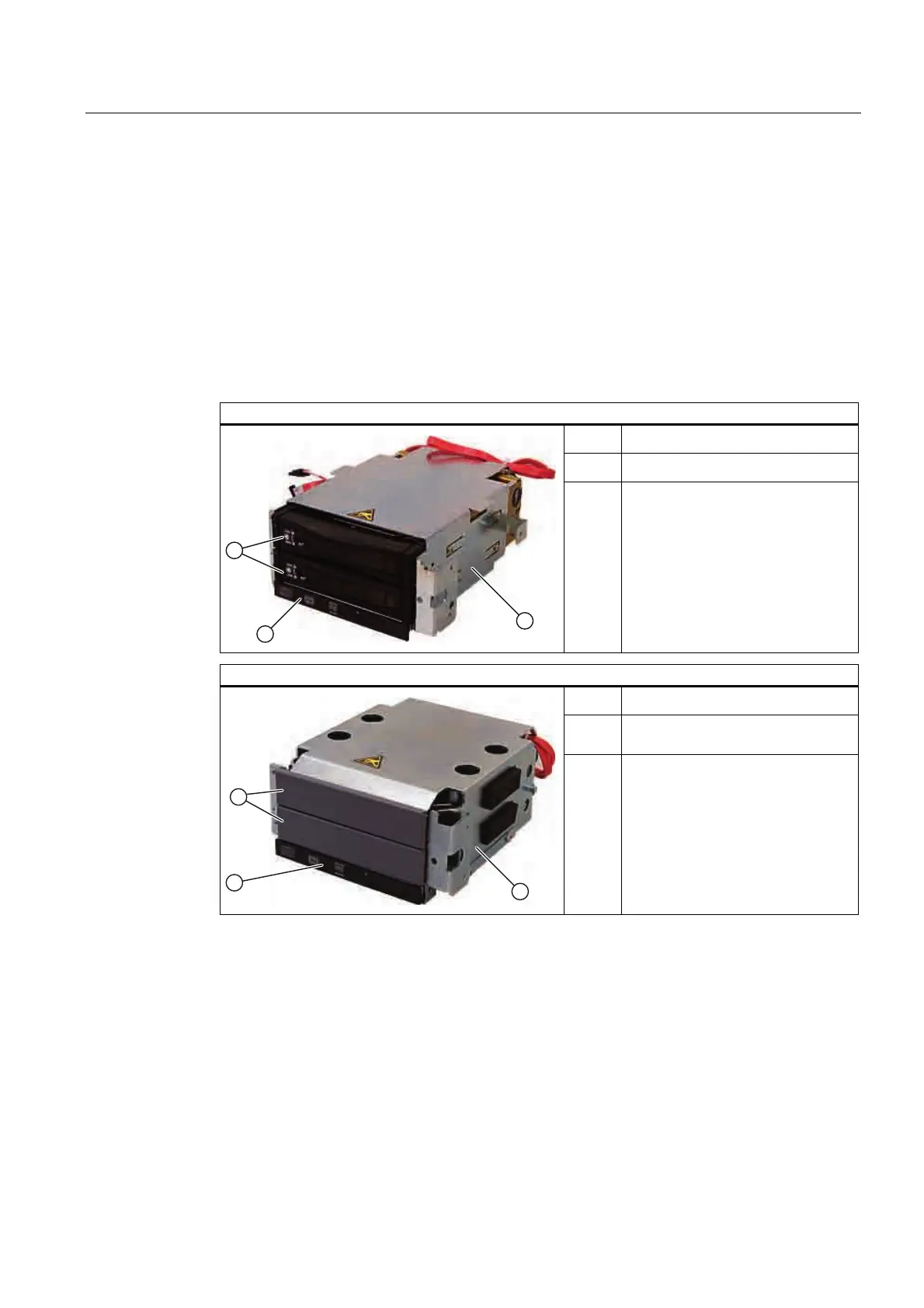

Drive rack for a removable rack
①
Drive rack for a removable rack
②
Slimline DVD mounting bay
1
2
3
③
Removable rack with carriers for
storage media
Vibration damped drive rack
①
Vibration damped drive rack
②
Two slots for storage media (shock
and vibration damped)
2
1
3
③
Slimline mounting bay for DVD drive
for CF card rack
