09/02 Features and functions
CP 243-1
J31069-D0428-U001-A1-7618
17
2.4 Connections

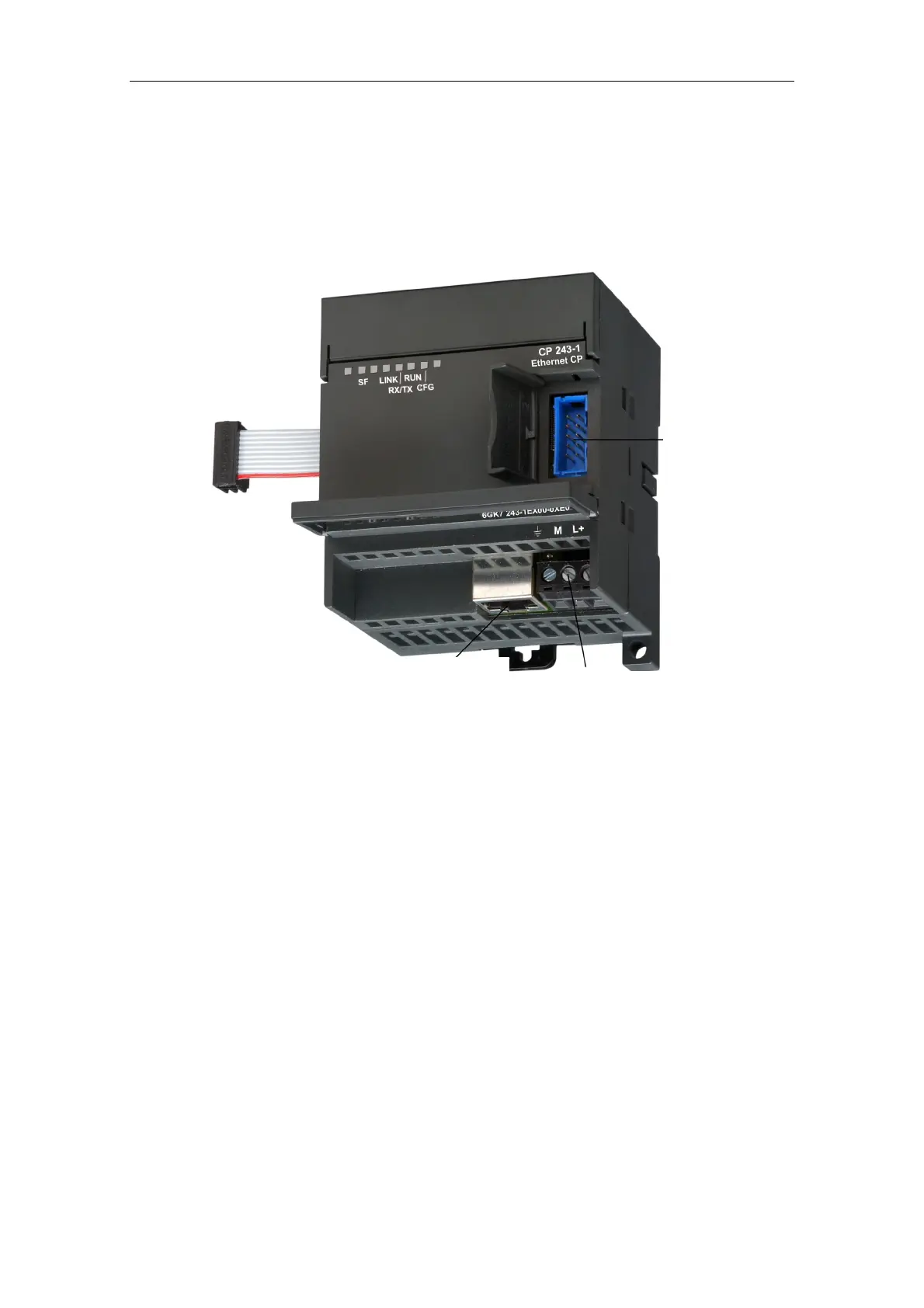

Front view:
Fig. 2. Connections
The CP 243-1 has the following connections:
• Terminal block for 24 V DC supply voltage and ground connection
• 8-pin RJ45 socket for Ethernet connection
• Plug connector for I/O bus
• Integrated ribbon cable with socket for I/O bus
The connections are located underneath the covers of the front doors.
Integrated ribbon cable
with socket for I/O bus
Connector
for I/O bus
8-pin RJ45 socket for
Ethernet connection
Terminal block for 24 V DC supply
voltage and ground connection
