Supplementary information
15.6 Communication services
CPU 410-5H Process Automation
248 System Manual, 09/2014, A5E31622160-AB
S7 routing: TeleService application example
The following figure shows an application example of the remote maintenance of an S7
station using a PG. The connection to other subnets is set up via modem.
The bottom of the figure shows how this can be configured in STEP 7.

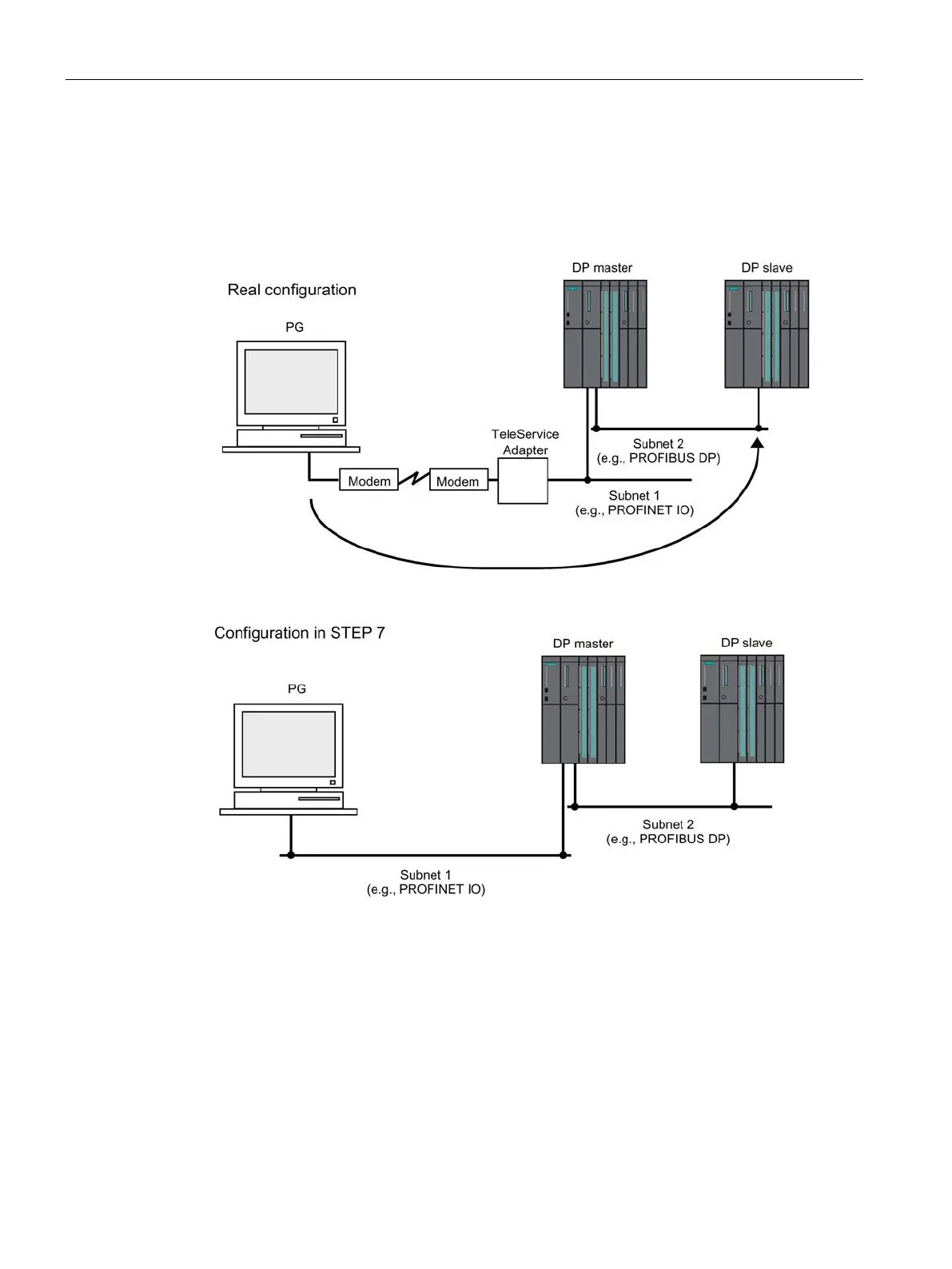

Figure 15-4 S7 routing: TeleService application example
