Siemens SIMATIC PCS 7 CPU 410-5H

Connection examples for redundant I/Os
C.31 SM 331; AI 8 x 16 Bit; 6ES7 331–7NF00–0AB0
CPU 410-5H Process Automation
System Manual, 09/2014, A5E31622160-AB
367
C.31
SM 331; AI 8 x 16 Bit; 6ES7 331–7NF00–0AB0

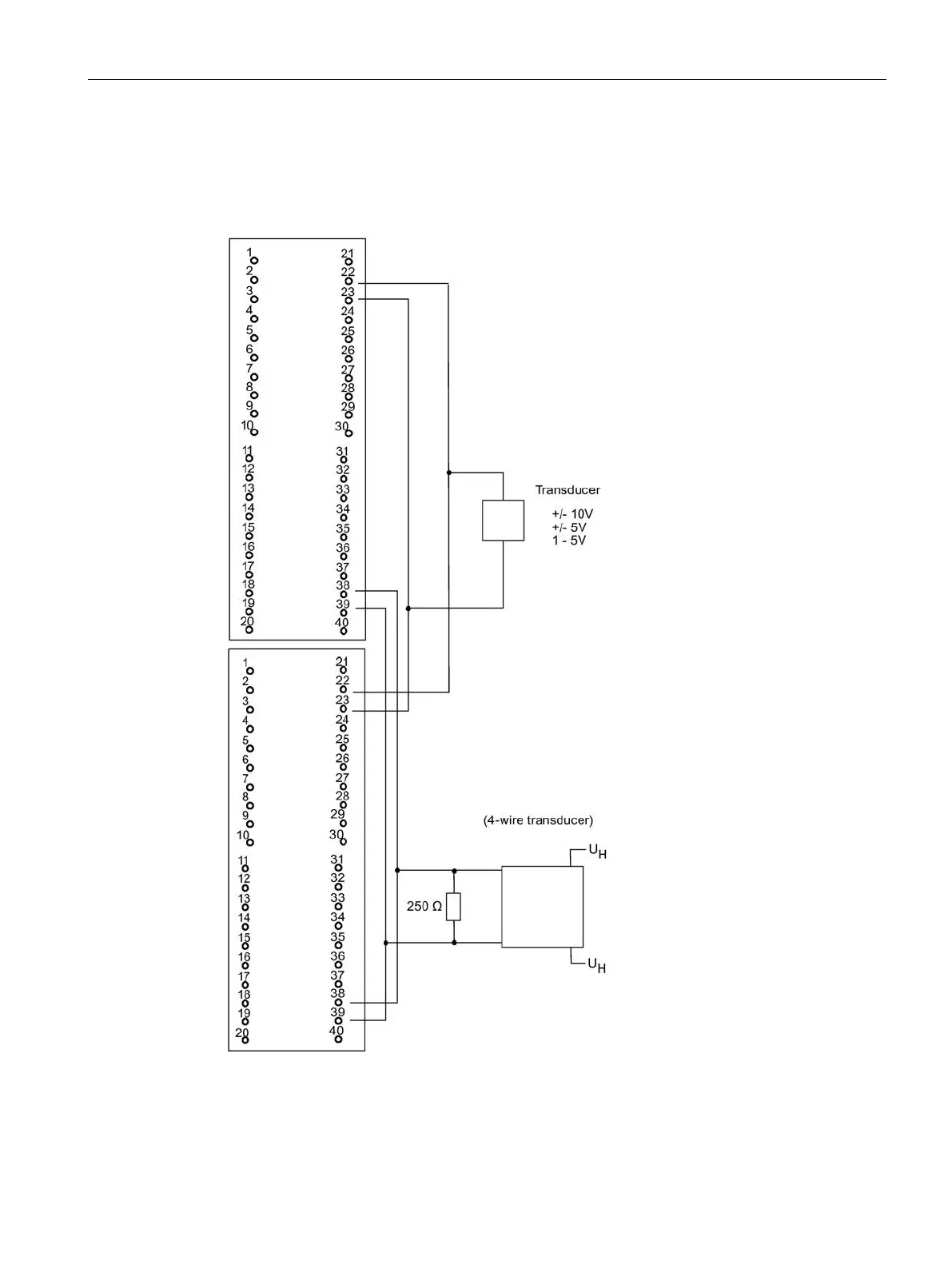

The figure below shows the connection of a transmitter to two redundant SM 331;
AI 8 x 16 Bit. The transmitter is connected to channel 0 and 7 respectively.
Figure C-29 Example of an interconnection with SM 331; AI 8 x 16 Bit
