Connection examples for redundant I/Os
C.13 SM 326; DI 24 x DC 24 V, 6ES7 326–1BK00–0AB0
CPU 410-5H Process Automation
System Manual, 09/2014, A5E31622160-AB
349
SM 326; DI 24 x DC 24 V, 6ES7 326–1BK00–0AB0

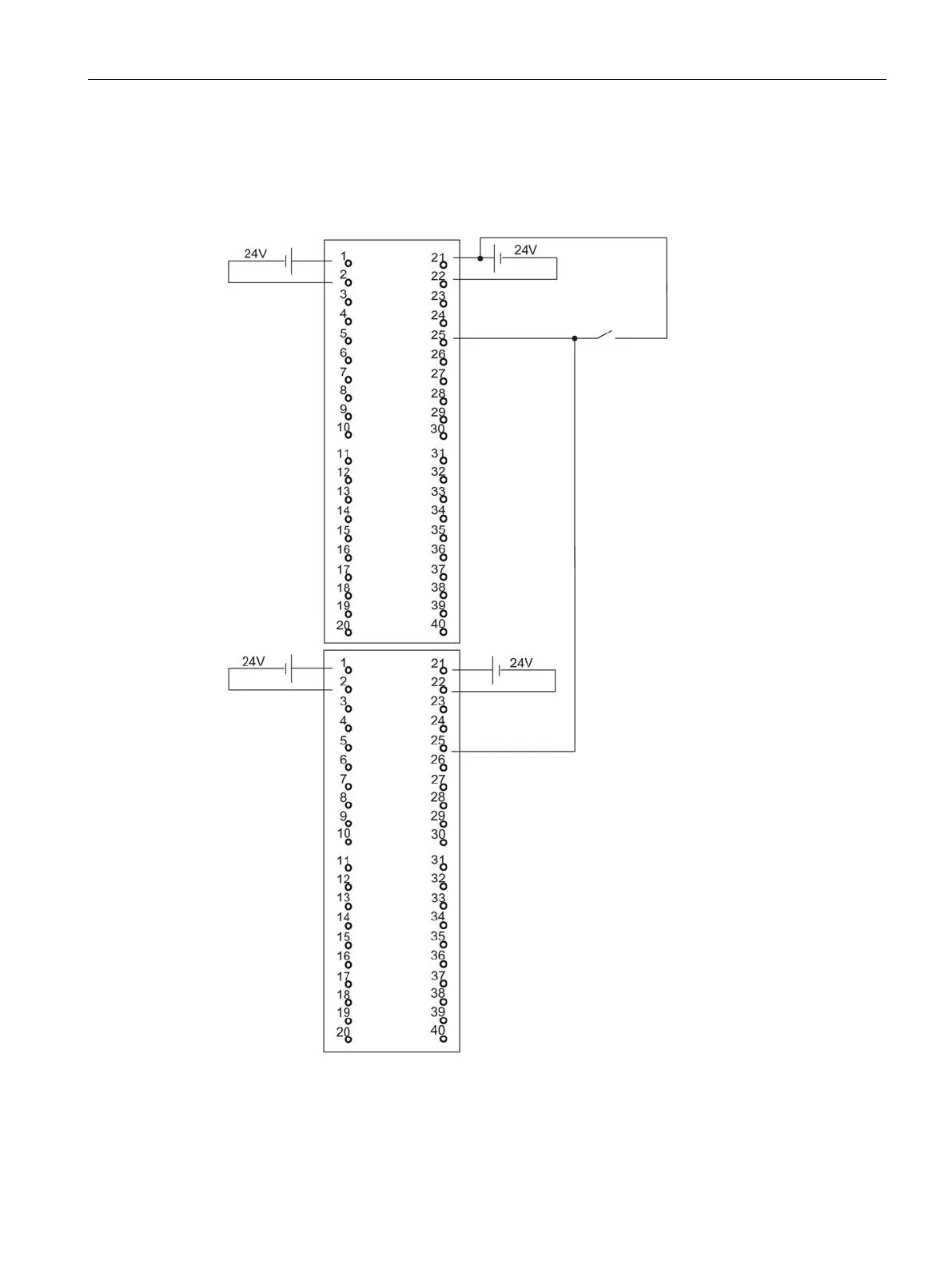

The diagram below shows the connection of one encoder to two redundant SM 326;
DI 24 x DC 24 V. The encoder is connected to channel 13.
Figure C-11 Example of an interconnection with SM 326; DI 24 x DC 24 V
