Connection examples for redundant I/Os
C.30 SM 331; AI 8 x 12 Bit, 6ES7 331–7KF02–0AB0
CPU 410-5H Process Automation
366 System Manual, 09/2014, A5E31622160-AB
C.30
SM 331; AI 8 x 12 Bit, 6ES7 331–7KF02–0AB0

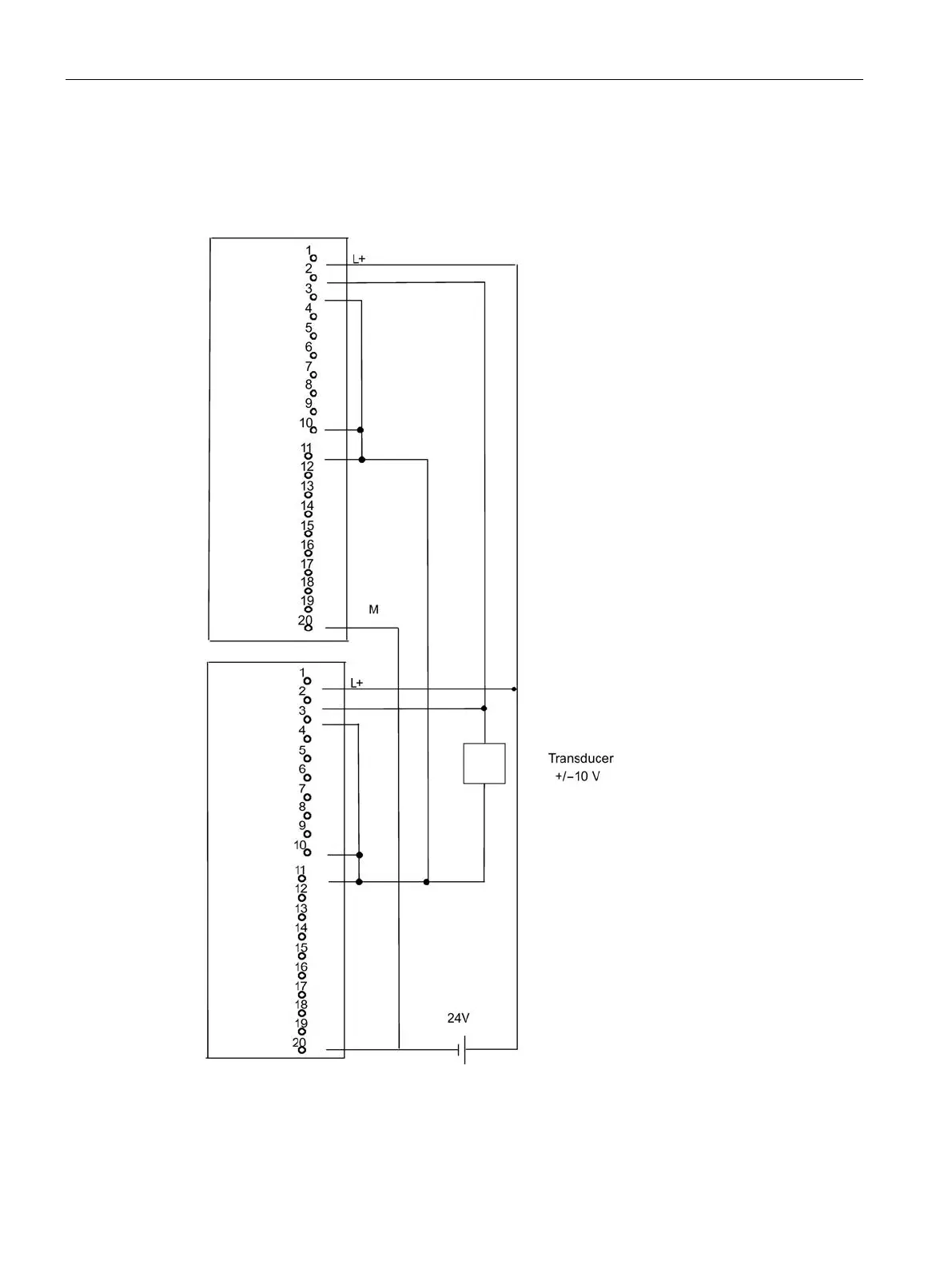

The diagram below shows the connection of a transmitter to two SM 331; AI 8 x 12 Bit. The
transmitter is connected to channel 0.
Figure C-28 Example of an interconnection with SM 331; AI 8 x 12 Bit
