15.6 Communication services
CPU 410-5H Process Automation
250 System Manual, 09/2014, A5E31622160-AB
Data set routing

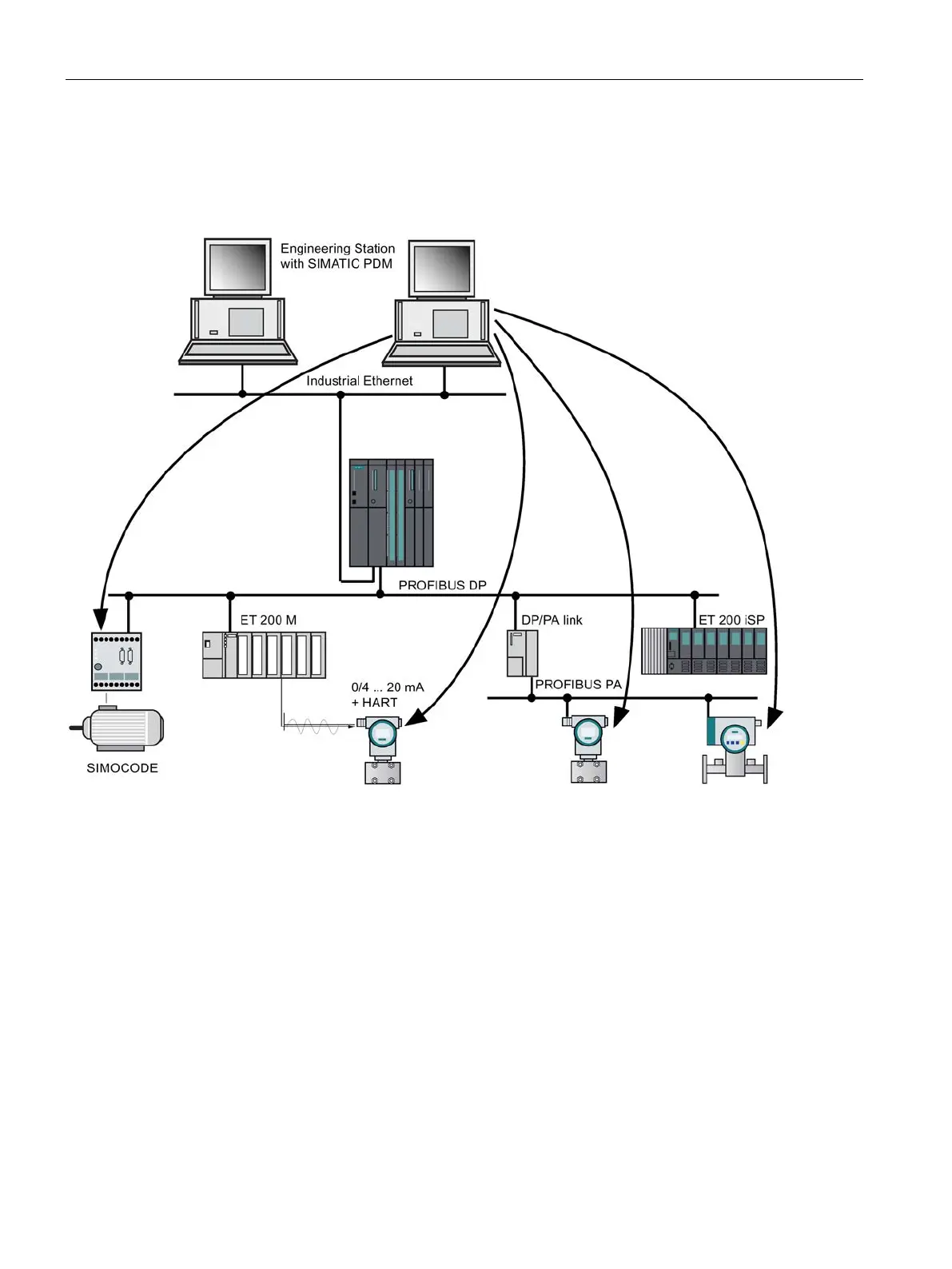

The following figure shows the engineering station accessing a variety of field devices. The
engineering station is connected to the CPU via Industrial Ethernet in this scenario. The CPU
communicates with the field devices via the PROFIBUS.
Figure 15-5 Data set routing
See also
For more information on SIMATIC PDM, refer to Manual The Process Device Manager .
