Supplementary information
15.10 Communication via fault-tolerant S7 connections
CPU 410-5H Process Automation
System Manual, 09/2014, A5E31622160-AB
277
Configuring connections
The PC must be engineered and configured as a SIMATIC PC station. Additional
configuration of fault-tolerant communication is not necessary at the PC end. The connection
configuration is uploaded from the STEP 7 project to the PC station.
You can find out how to use STEP 7 to integrate fault-tolerant S7 communication for a PC
into your OS system in the WinCC documentation.

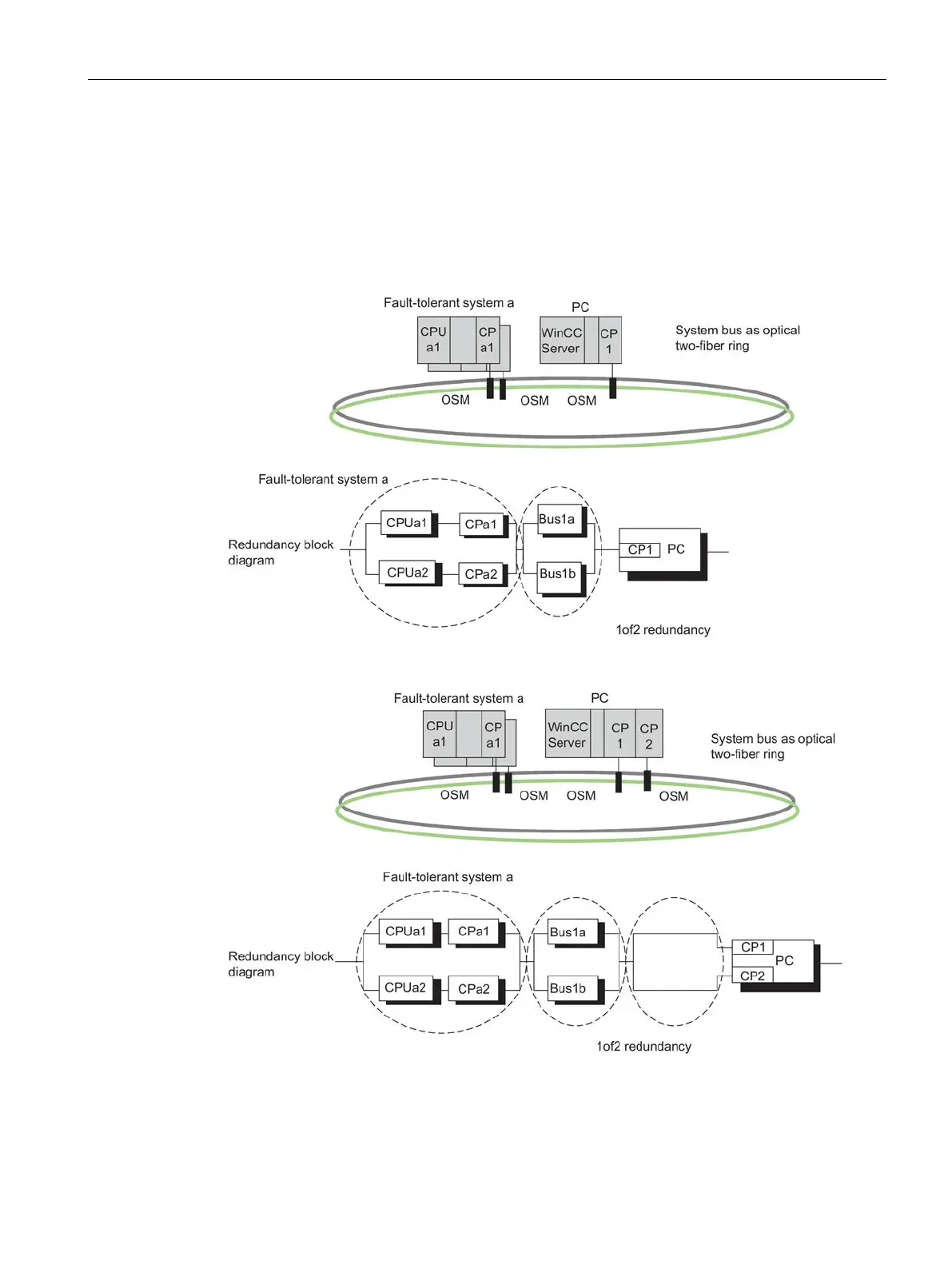

Figure 15-20 Example of redundancy with fault-tolerant system and redundant bus system
Figure 15-21 Example of redundancy with a fault-tolerant system, redundant bus system and
redundant connection to the PC.
