Connection
5.3 Electrical design of the CM
SIMATIC RF185C, RF186C, RF188C, RF186CI, RF188CI
Operating Instructions, 04/2020, C79000-G8976-C512-03
33
5.3 Electrical design of the CM
Electrical isolation
In the electrical design of the communication module, electrical isolation is provided
between:
● Load voltage 2L+ and all other circuit components
● Communication interfaces (PROFINET) of the communication module and all other circuit
components
The following figure shows the potential relationships of the communication modules.

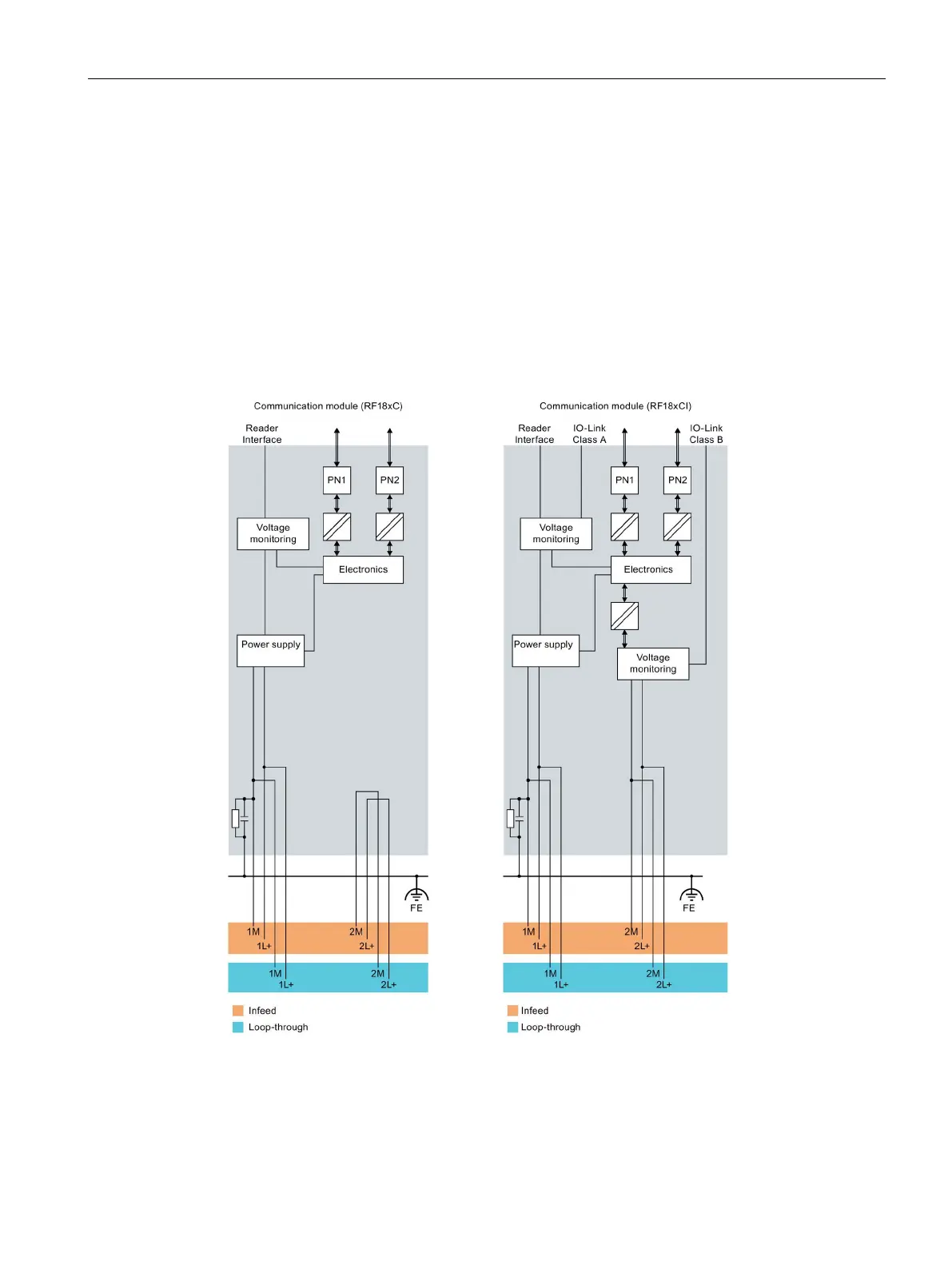

Figure 5-6 Potential relationships of the communication modules
