Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF185C, RF186C, RF188C, RF186CI, RF188CI
68 Operating Instructions, 04/2020, C79000-G8976-C512-03
7.3 The menu items of the WBM
7.3.1 The "Start page" menu item
The "Start page" menu item is divided into the following areas.
● Device-specific information
● Project ID
● Address information
● Device clock
● Configuration display

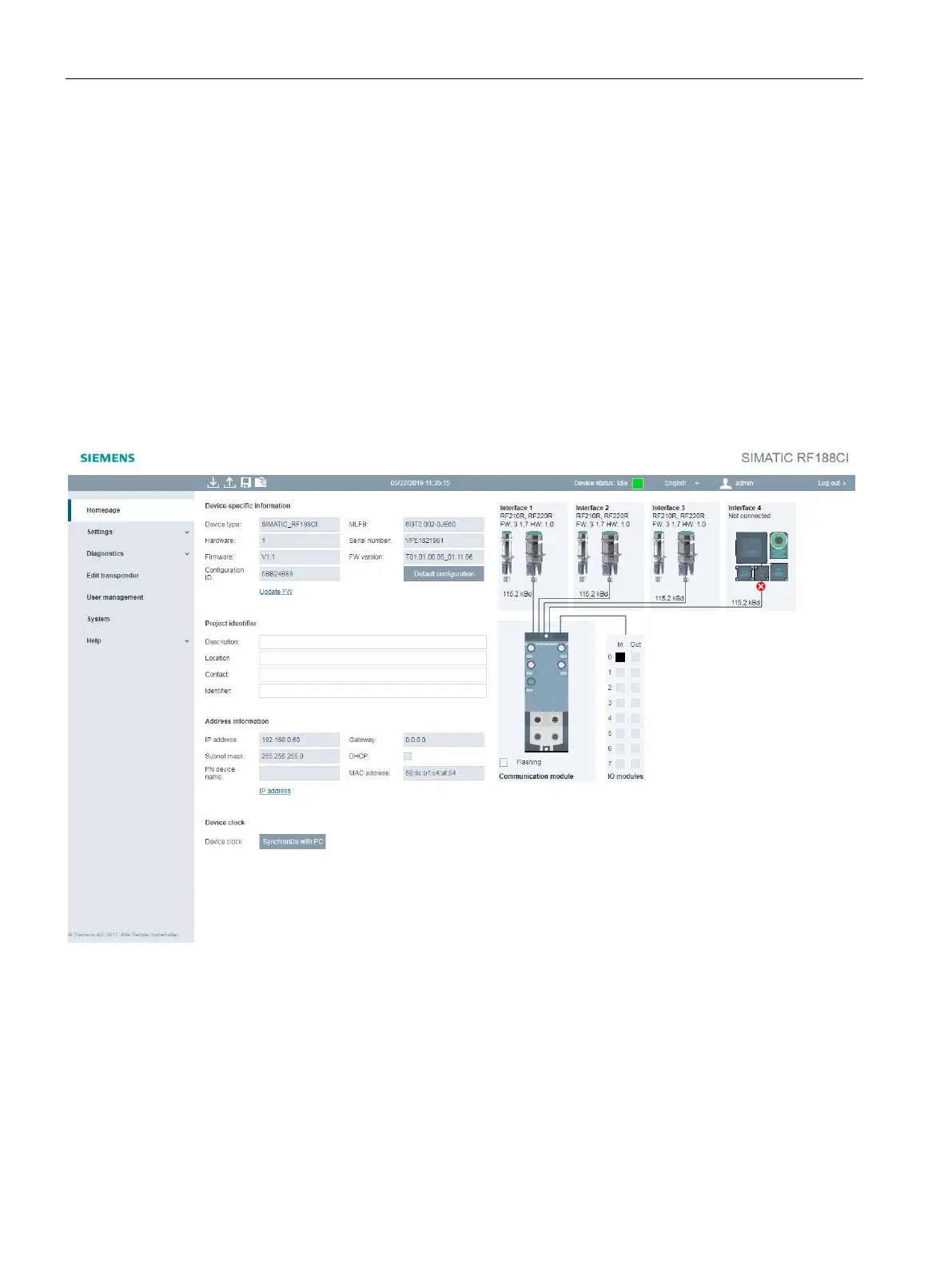

Figure 7-4 The "Start page" menu item
Device-specific information
The first area contains device-specific information. The "Device type", "MLFB", "Hardware"
and "Serial number" boxes are specified in the factory. The content of the "Firmware" and
"Firmware version" boxes depends on the firmware stored on the communication module.
Using the "Update firmware" link, you jump to the "System" menu item in which you can
update firmware. The "Configuration ID" box contains a unique identifier for the configuration
that was last activated on the communication module or loaded into the communication
To Next Page
