Siemens Simatic S7-200 CPU 210 User Manual

A-7
S7-200 Programmable Controller, CPU 210
C79000-G7076-C235-01
Inputs (15 to 35 VDC)
Outputs 30 VDC / 250 VAC
3.3K ohms
470 ohms
Power Supply
Note: Actual component values may vary.
OUTPUTS 1L 0.0 0.1 2L 0.2 0.3
RELAY
NL1
85–264 VAC
+
1M 0.0 0.1 0.2 0.3
DC INPUTS
24 VDC Power for
Input Sensors
24 V DC OUT
ML+
N (-)
L (+)
N (-)
L (+)
Analog Adjustment
Potentiometer
Location for the
Memory Cartridge

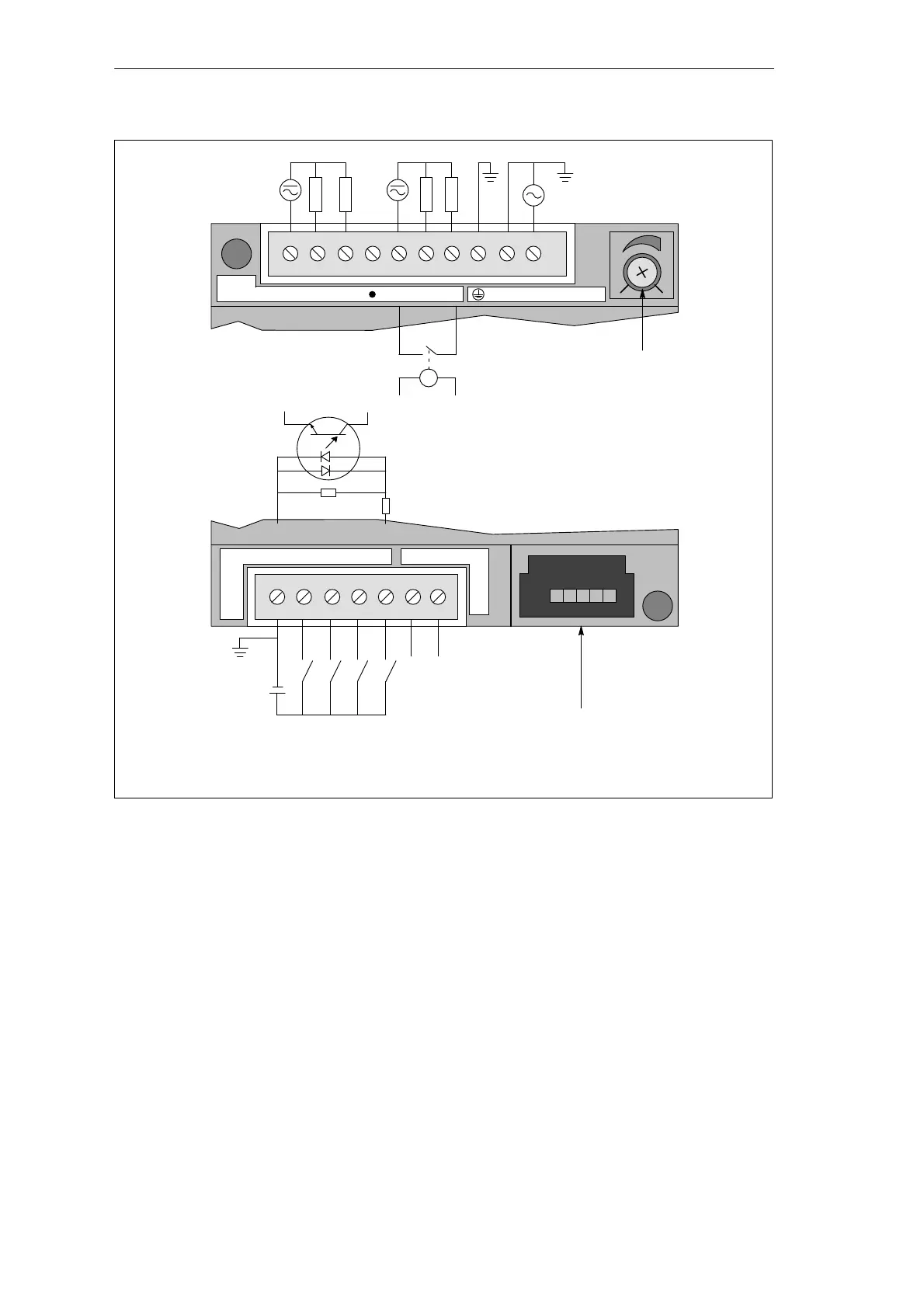

Figure A-2 Connector Terminal Identification for CPU 210 AC/DC/Relay
CPU 210 Data Sheets

Siemens Simatic S7-200 CPU 210 Specifications

General

Digital Inputs	6
Digital Outputs	4
Program Memory	2 KB
Data Memory	1 KB
Timers	128
Counters	128
Analog Inputs	0
Analog Outputs	0
Communication Ports	1 x RS-485
Power Supply	24 V DC
Type	CPU
