Siemens Simatic S7-200 CPU 210 - Move Instruction

5-10
S7-200 Programmable Controller, CPU 210
C79000-G7076-C235-01
5.7 Move Instruction
Move Word
The Move Word instruction moves the input word (IN) to the
output word (OUT). The input word is not altered by the move.
Operands: IN: T, C, MW, SMW, Constant
OUT: T, C, MW
Move Examples
LAD STL
Network
LD I0.1
MOVW SMW2, MW2
I0.1
MOV_W
EN
OUT MW2SMW2 IN
Application
127SMW2
MW2
move
127
Move

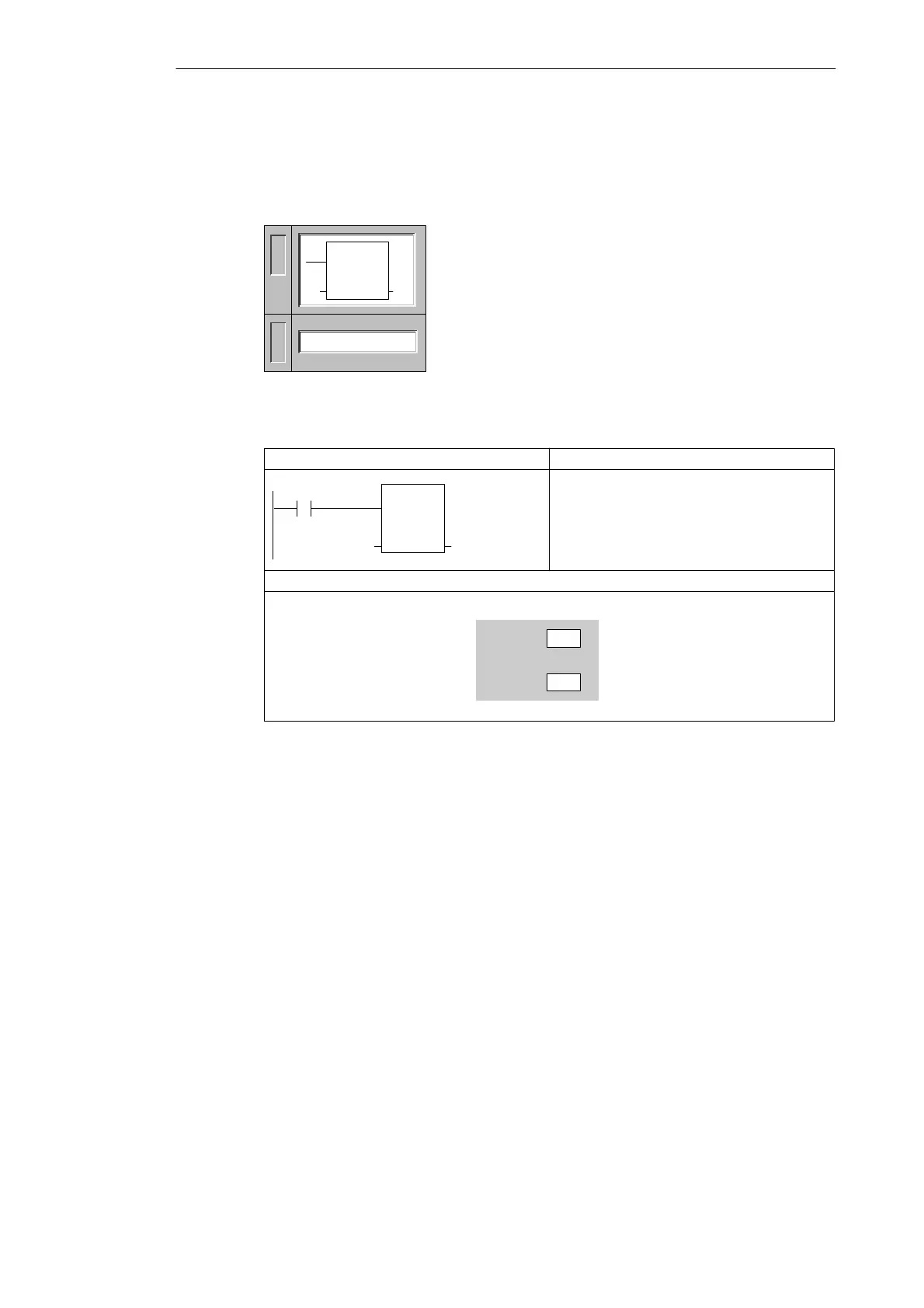

Figure 5-7 Example of Move Instruction
Instruction Set
L
A
D
S
T
L
MOVW IN, OUT
MOV_W
EN
IN OUT
