Siemens Simatic S7-200 CPU 210 User Manual

A-9
S7-200 Programmable Controller, CPU 210
C79000-G7076-C235-01
3.3K ohms
390 ohms
Note: Actual component values may vary.
Inputs (164 to 265 VAC)
N 0.0 0.1 0.2 0.3
Outputs 30 VDC / 250 VAC
Power Supply
1L 0.0 0.1 2L 0.2 0.3
RELAY
OUTPUTS
NL1
85–264 VAC
AC INPUTS
0.1 F
N (-)
L (+)
N (-)
L (+)
Analog Adjustment
Potentiometer
Location for the
Memory Cartridge

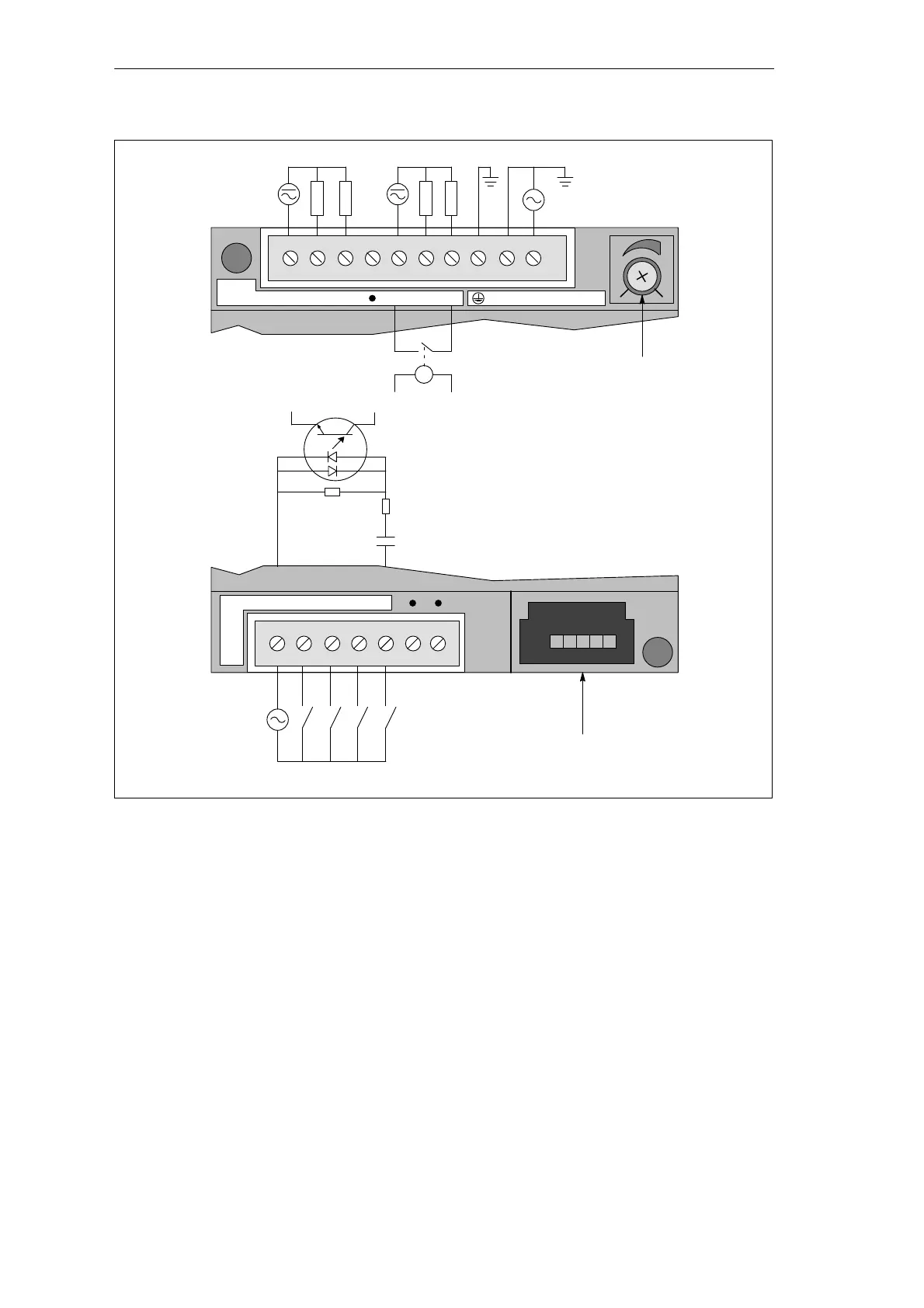

Figure A-3 Connector Terminal Identification for CPU 210 AC/AC/Relay
CPU 210 Data Sheets

Siemens Simatic S7-200 CPU 210 Specifications

General

Digital Inputs	6
Digital Outputs	4
Program Memory	2 KB
Data Memory	1 KB
Timers	128
Counters	128
Analog Inputs	0
Analog Outputs	0
Communication Ports	1 x RS-485
Power Supply	24 V DC
Type	CPU
