Wiring
S7-300 Programmable Controller Hardware and Installation
6-12 A5E00105492-01
6.7 Labeling the module I/Os
Introduction
The assignment of module I/Os to the sensors/actuators of your system is recorded
on labeling strips.
You must use the labeling strips, depending on the module:
Table 6-8 Assigning labeling strips to modules
Module Labeling strip
Order No.:
Signal modules (not 32-channel),
Function modules,
Communication module CP 342-2
6ES7 392-2XX00-0AA0
Signal modules (32-channel) 6ES7 392-2XX10-0AA0
Labeling and inserting labeling strips
1. Label the strips with the addresses of the sensors/actuators.
2. Slide the labelled strips into the front panel.

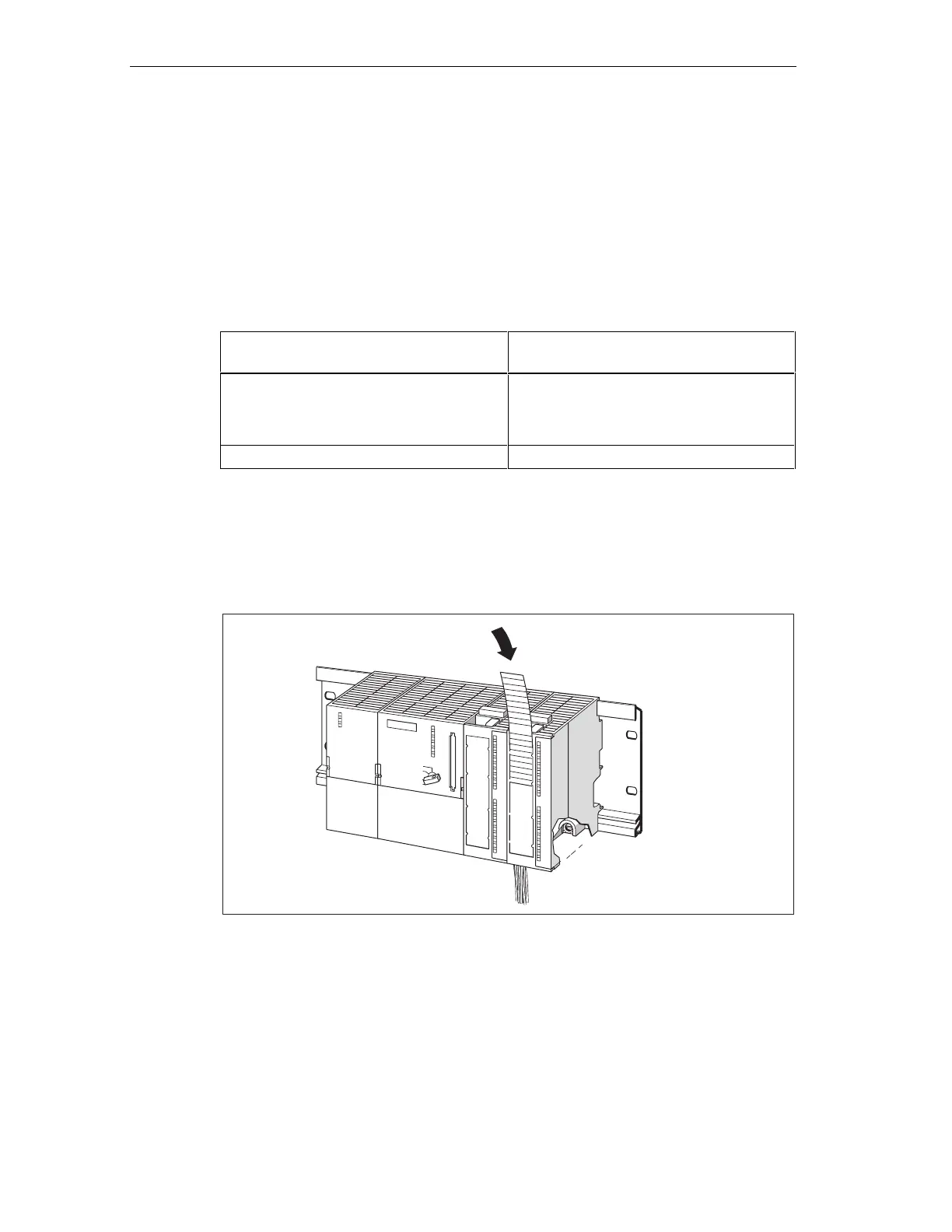

Figure 6-5 Slide the labelled strips into the front panel
Tip:
Templates for labeling strips can be obtained from the internet at
http://www.ad.siemens.de/csinfo under article ID 406745.
