03/2013 5 Statistics/export
5.1 Multi-machine views
© Siemens AG 2006-2012 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
5-245

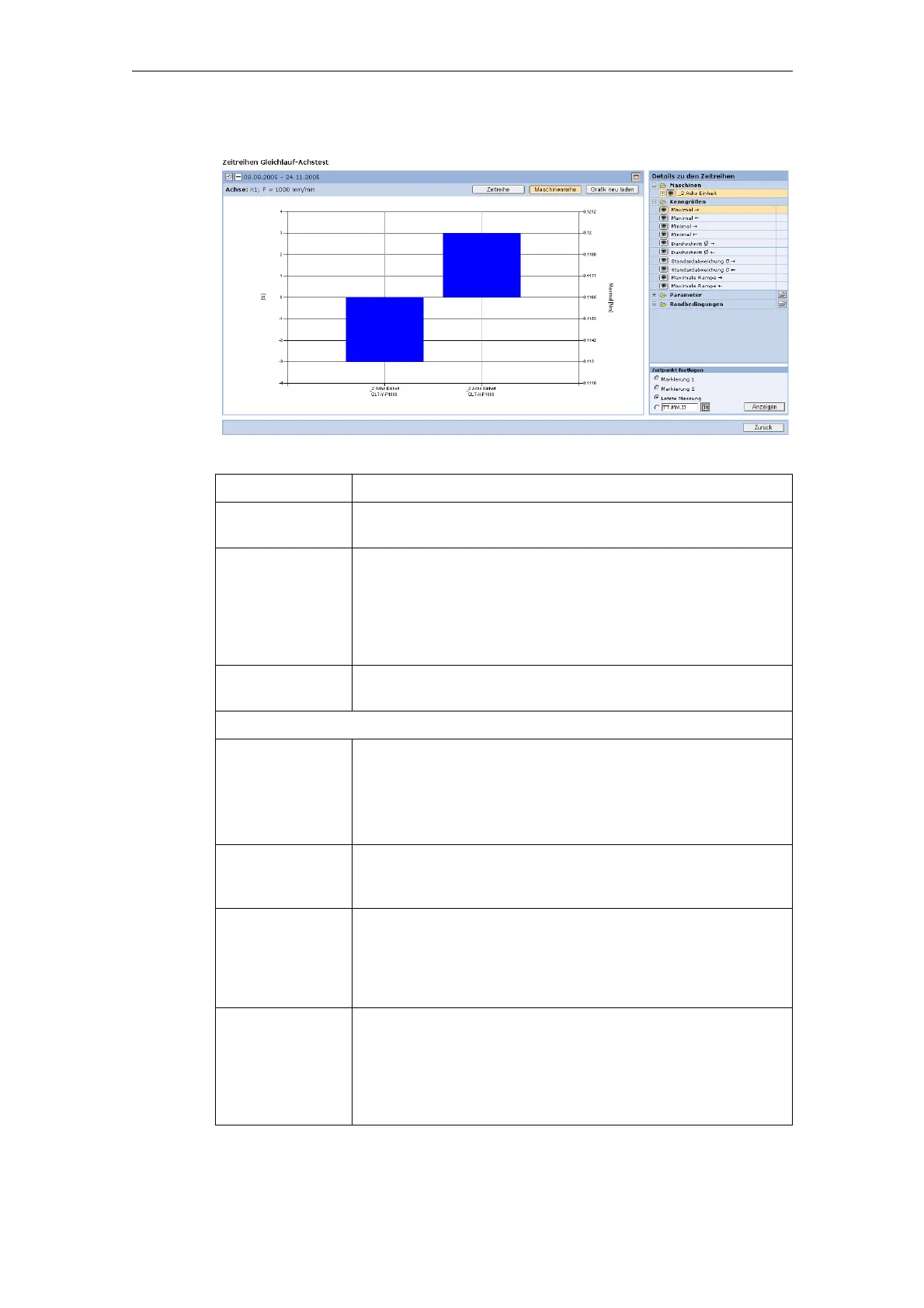

Fig. 5-13: Displaying the measurement series as machine series
Function Description
Time series This function displays the progression over time of the
selected characteristic within the defined period.
Machine series This function displays the selected characteristic from the
compared measurement series at a defined point in time. It is
displayed as a bar chart. The ordinate at the left-hand side
indicates the relative deviation from the average value of the
examined characteristics values. The right-hand ordinate
indicates the absolute value.
Reload the
graphics
Changing settings will update and reload the graphics.
Details of the time series
Machines In the "Machines" table, all measurement series considered in
the comparative function will be listed by machines. Individual
measurement series can be excluded from being displayed in
the diagram or included again.
Characteristics The table shows the characteristics that are calculated for the
examined type of measurement series. The representation in
the diagram requires a characteristic to be selected.
Parameters The pull-down "Parameters" table shows the parameters of the
measurement being performed. Parameters that are not
identical in all measurement series are marked. Click on the
"Open" icon in the table to display a detailed view of the
parameters for each individual measurement series.
Boundary
conditions
The pull-down "Boundary conditions" table shows the
supplementary conditions of the measurement being
performed. Supplementary conditions that are not identical in
all measurement series are marked. Click the "Open" icon in
the table to display a detailed view of the supplementary
conditions for each individual measurement series.
