Commissioning

6-14

Automation System S7-400 Hardware and Installation

A5E00850741-01

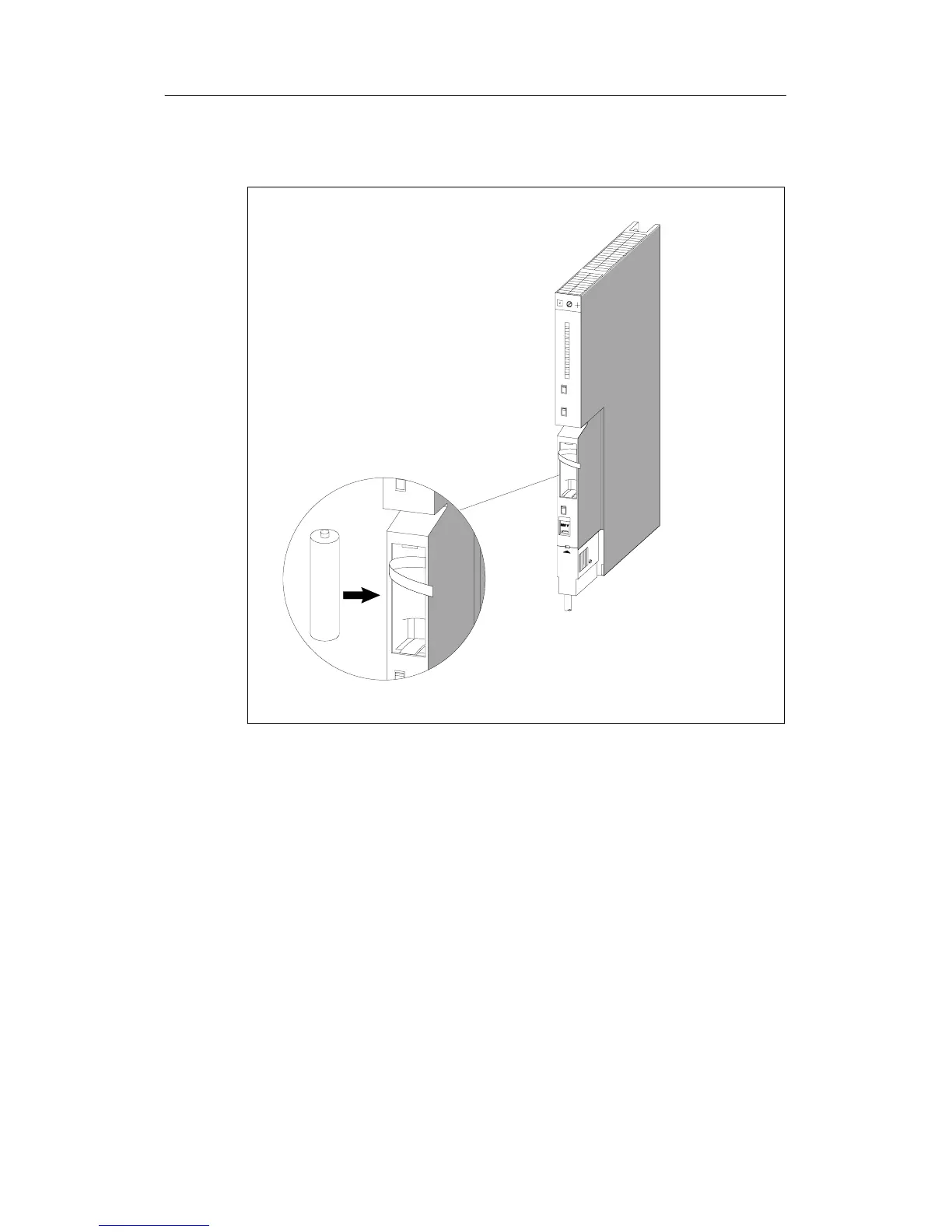

The following figure s hows how to insert a backup battery in the s ingle-width power

supply module.
