Assembling and Installing Systems
A-12
Automation System S7-400 Hardware and Installation
A5E00850741-01
Ensure the following for frame and wall mounting:
• Use special contact w ashers with painted and anodized metal parts, or remove
the insulating protective layers.
• Provide large-area, low-impedance metal-to-metal connections when securing
the shield/protective ground bar.
• Cover the AC supply conductors in a shockproof arrangement.

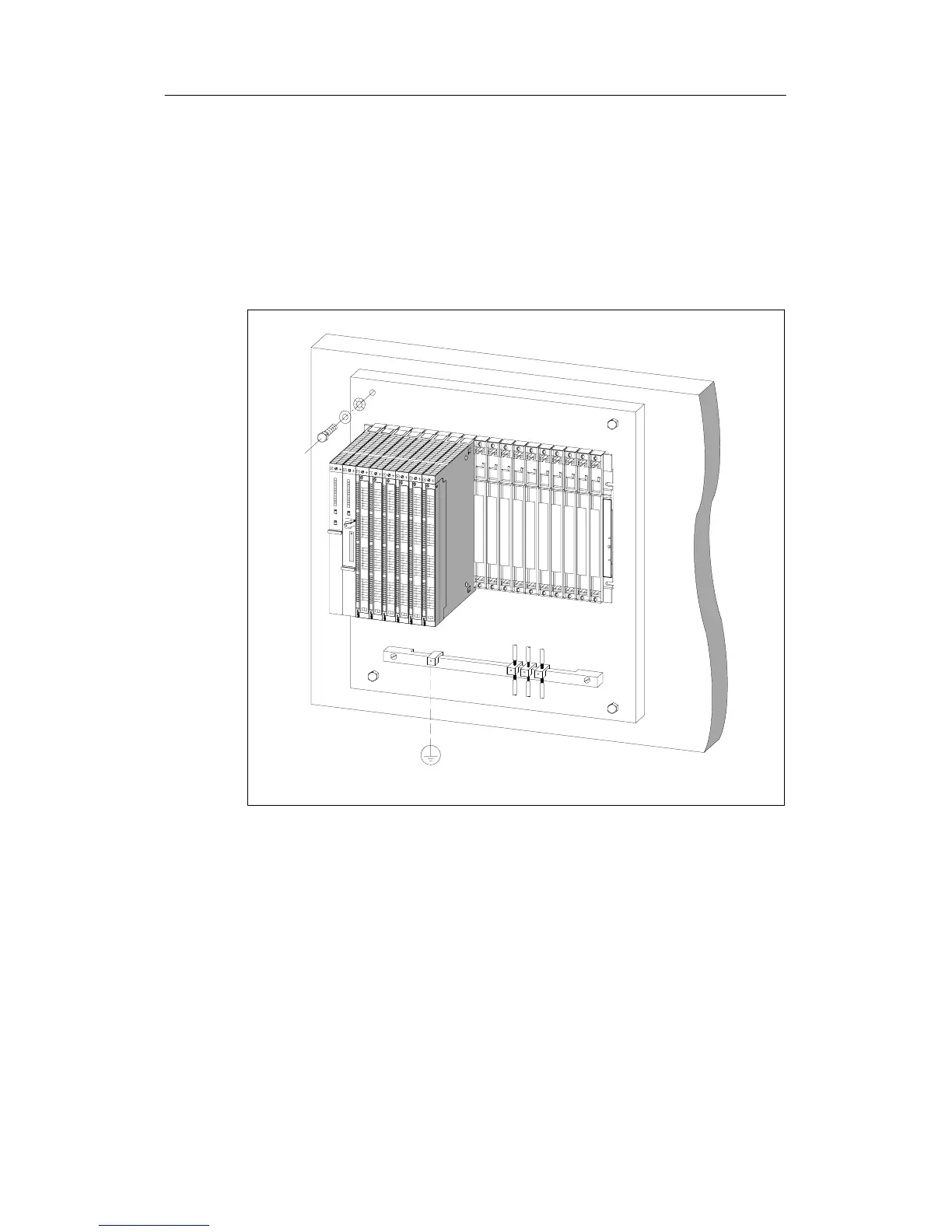

Figure A-3 shows an example of wall mounting for EMC
Figure A-3 Wall Mounting an S7-400 for EMC
