Handling the Shields
Observe the following points with regard to the shield:
• Only use cable clamps made of metal to s ecure braided shields. The clamps
must surround the shield over a large area and provide good contact.
• Connect the shield to a shield bus immediately after entry of the cable into the
cabinet. R oute the shield to the module but do not connect it there again to the
chassis ground or the shield bus.
• For installation other than in cabinets (for example, wall mounting), you can
provide contact between the cable shields and the cable duct.

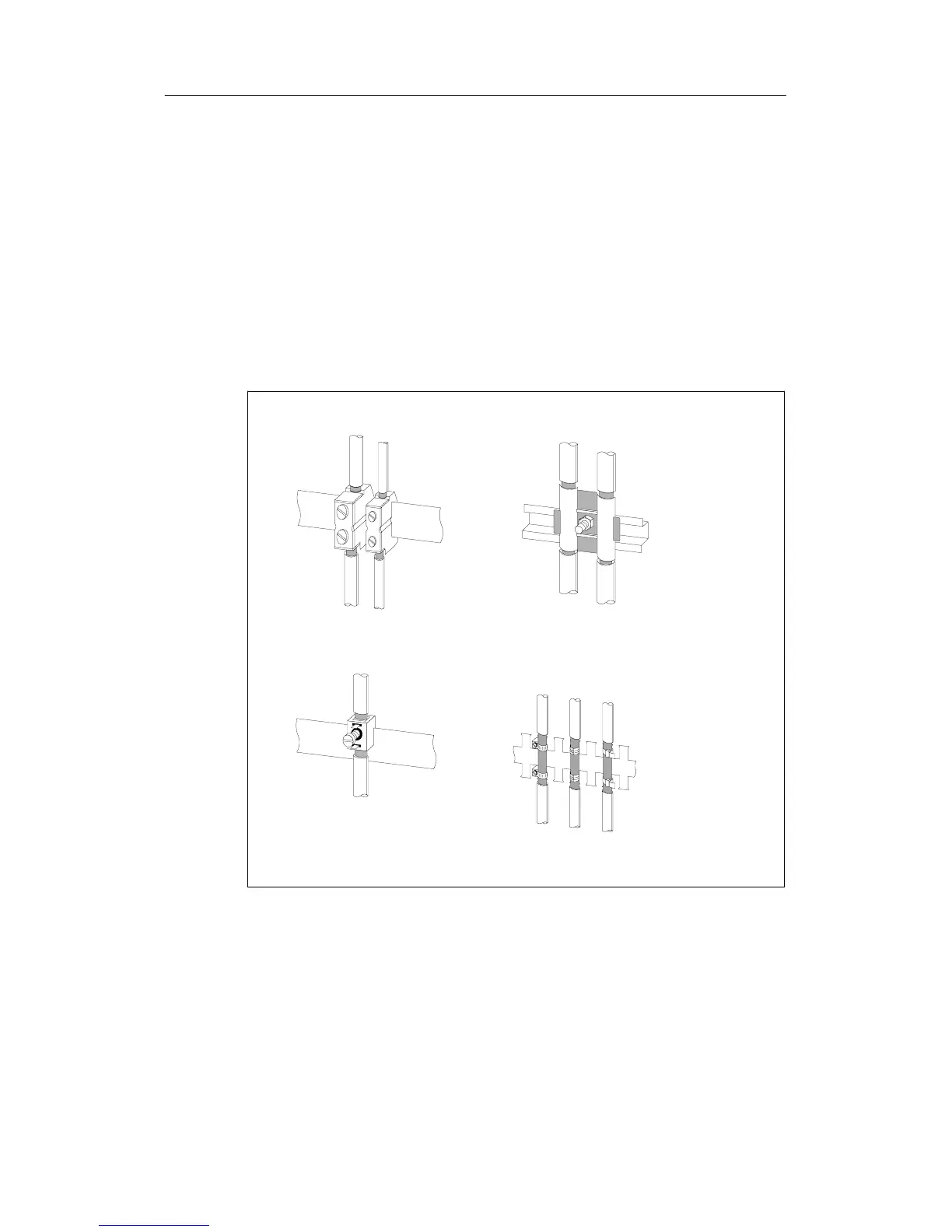

Shown in the figure A-4 are some methods of securing shielded cables with cable
clamps.
Figure A-4 Mounting Cable Shields
