Planning/Configuring
6.6 Configuring the DM-F PROFIsafe and integrating it into the fail-safe automation system using PROFIBUS/
PROFIsafe or PROFINET/PROFIsafe
48
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
Assignment of the PROFIsafe address
Each DM-F PROFIsafe fail-safe digital module has its own PROFIsafe address. You must
set the PROFIsafe address before you start up the module:
The PROFIsafe addresses (F_Source_Add, F_Dest_Add) are automatically assigned when
you configure the DM-F PROFIsafe in STEP 7. You can find the PROFIsafe address that
must be set on the DM-F PROFIsafe module in the HW Config (STEP 7 V5.x) or in the
device configuration (STEP 7 TIA Portal) under the object properties for the PROFIsafe
module; it is shown in decimal and hexadecimal notation in the F_Dest_Add parameter. After

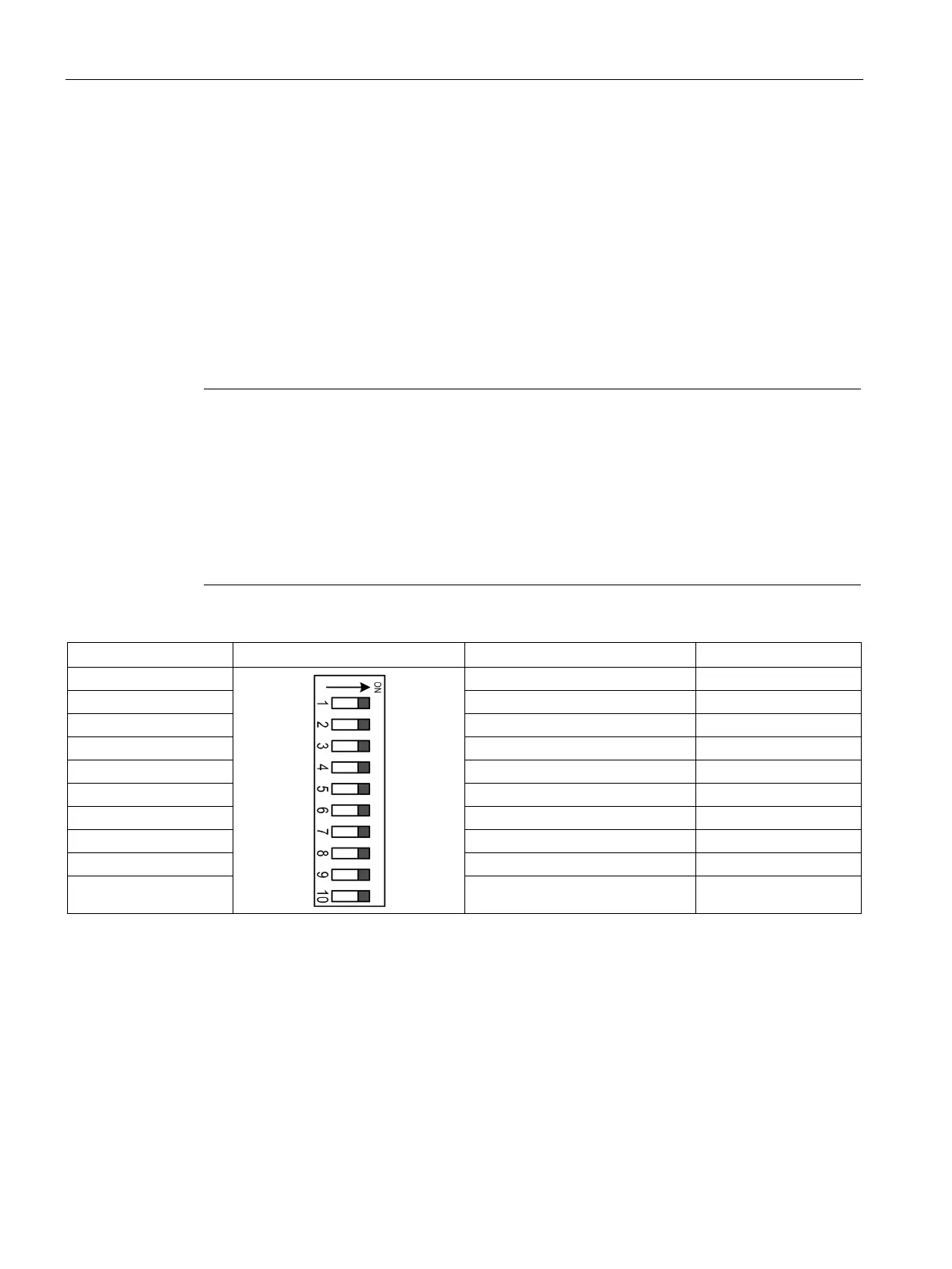

converting this address to binary notation, you can use the DIP address switch to set it and
store it on the DM-F PROFIsafe.
Note
PROFIsafe address
The v
alid range for the PROFIsafe addresses is 0 - 1022. In the delivery condition the
-F PROFIsafe has the PROFIsafe address 1023.
When commissioning the device, the PROFIsafe address must be set to the address that
was issued by the fail
-safe controller.
en commissioning a device of the DM-F PROFIsafe module with the PROFIsafe
1023, the error message "Module error" is generated.
0
1
2
3
4
5
6
7
8
10 = 2
9
10 512
