3.3.3 Balancing
As standard, the motor is balanced dynamically with a half feather key (code "H").
Vibration level "A" is standard and, if ordered as an option, vibration level B is specified on
the rating plate.
See also
Balancing (Page 51)
3.3.4 Types of construction/method of installation
The type of construction of the machine is stated on the rating plate.

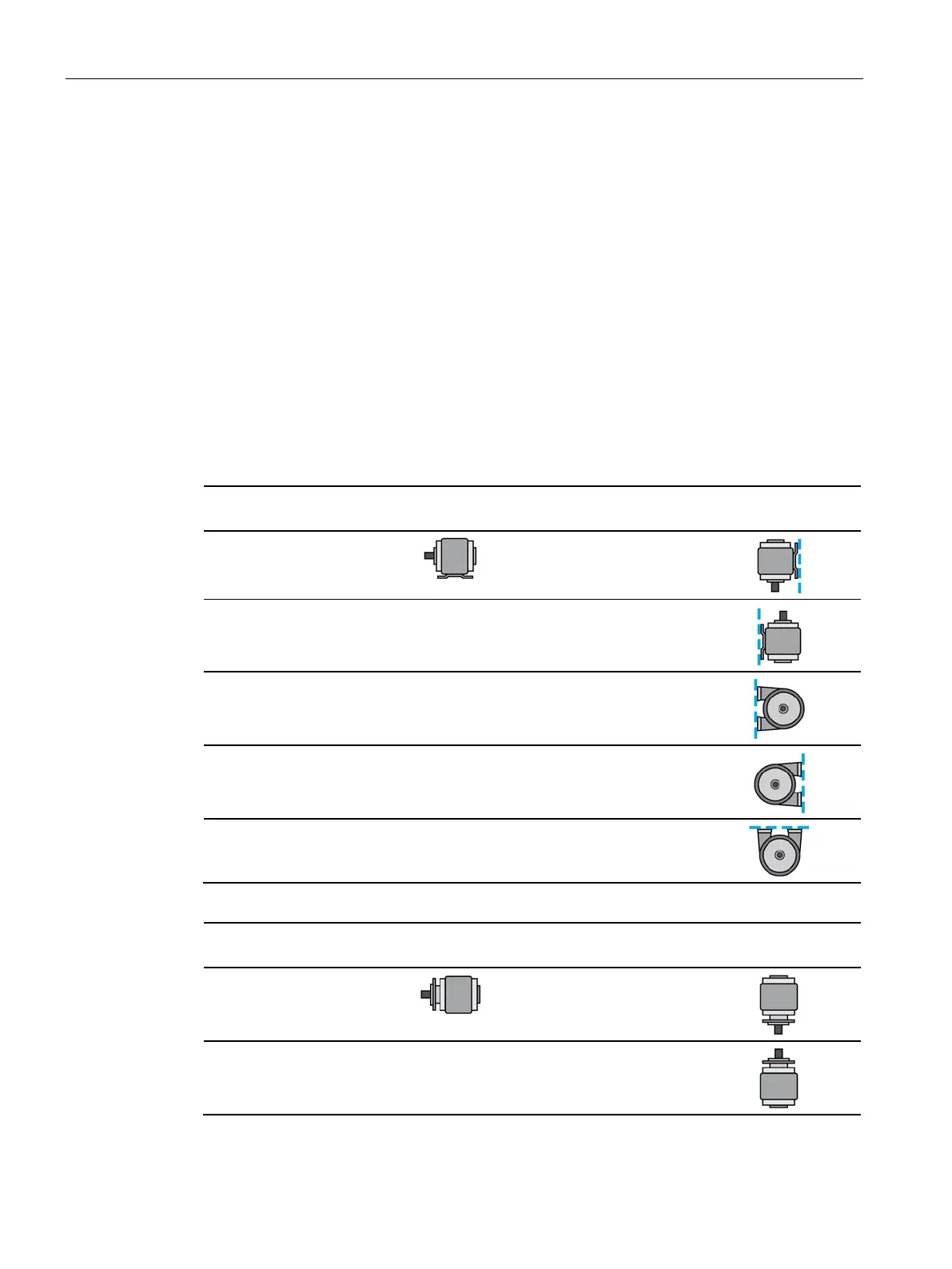

Table 3- 2 Type of construction
Basic type of construc-
tion code
Diagram
Other methods of in-
stallation
Diagram
IM B3 (IM 1001) IM V5 (IM 1011)
IM V6 (IM 1031)
IM B6 (IM 1051)
IM B7 (IM 1061)
IM B8 (IM 1071)
Basic type of construc-
tion code
Diagram
Other methods of in-
stallation
Diagram
IM B5 (IM 3001) IM V1 (IM 3011)
IM V3 (IM 3031)
