Siemens SIMOTICS GP series - Cable Glands; Mounting Position of Sheet Metal Nuts in Screw-Type Connections

Electrical connection
6.2 Connecting the machine
Standard motors SH 63 ... 355
Operating Instructions, 12/2018, A5E38483075A
67

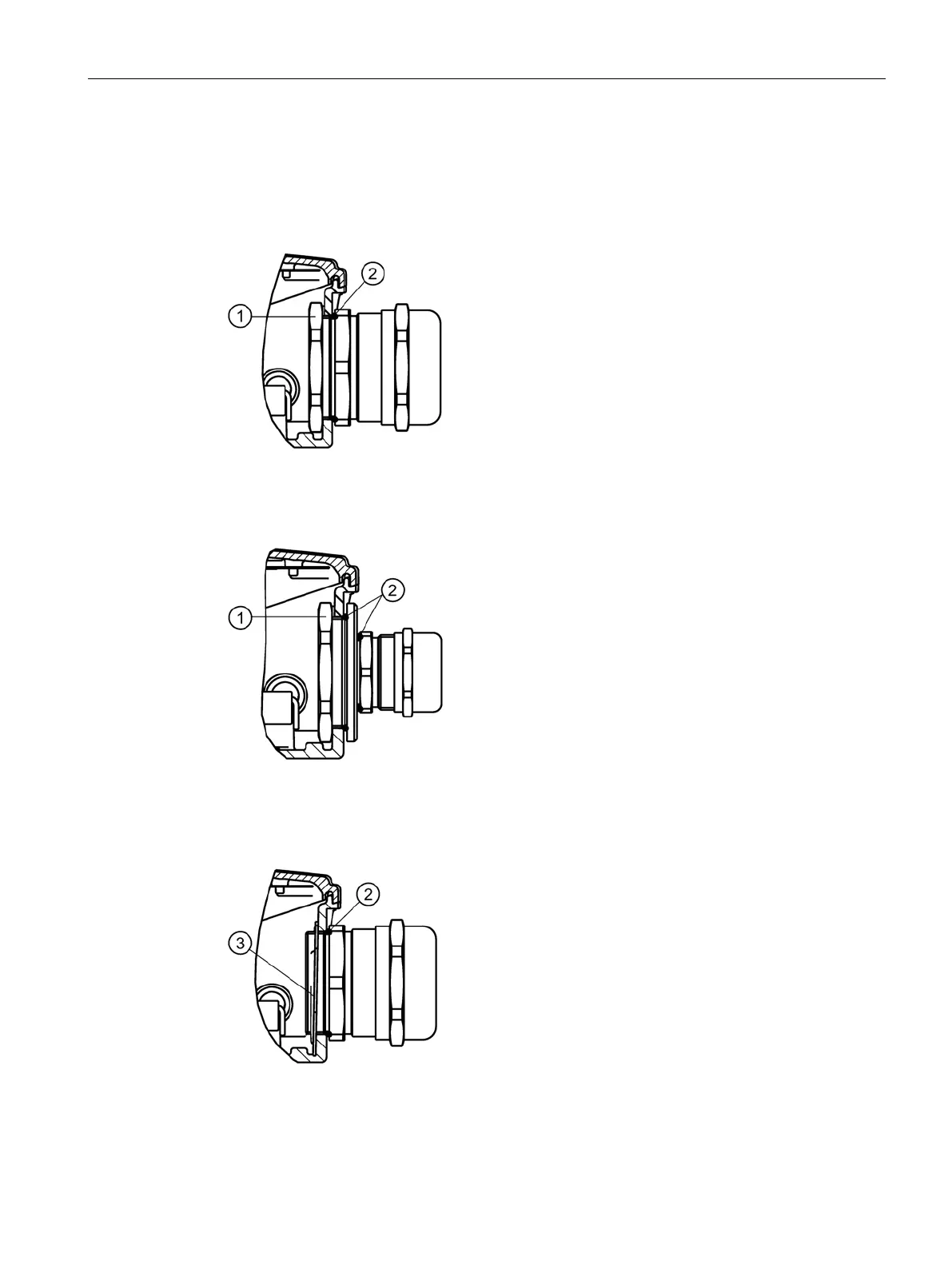

6.2.3 Cable glands
Cable glands with (sheet metal) nuts (EN 50262)
①
②
Nut
O ring
Cable glands with reductions and (sheet metal) nuts (EN 50262)
①
②
Nut
O ring
6.2.3.1 Mounting position of sheet metal nuts in screw-type connections
②
③
O ring
Mounting position of metal
-sheet
nuts
