Siemens SIMOTICS GP series - Conductor Connection; Type of Conductor Connection

Electrical connection
6.6 Conductor connection
Standard motors SH 63 ... 355
Operating Instructions, 12/2018, A5E38483075A
71
6.6 Conductor connection
Cross-sections that can be connected depending on the size of the terminal (possibly
reduced due to size of cable entries)
Table 6- 4 Max. conductor connection
Shaft height
Max. connectable conductor cross-section
[mm²]
63 ... 90 1.5
2.5 with cable lug
100 ... 112
4.0
132
6.0
160 ... 180
16.0
200
25.0
225
35.0 with cable lug
250 ... 280
120.0
315
240.0

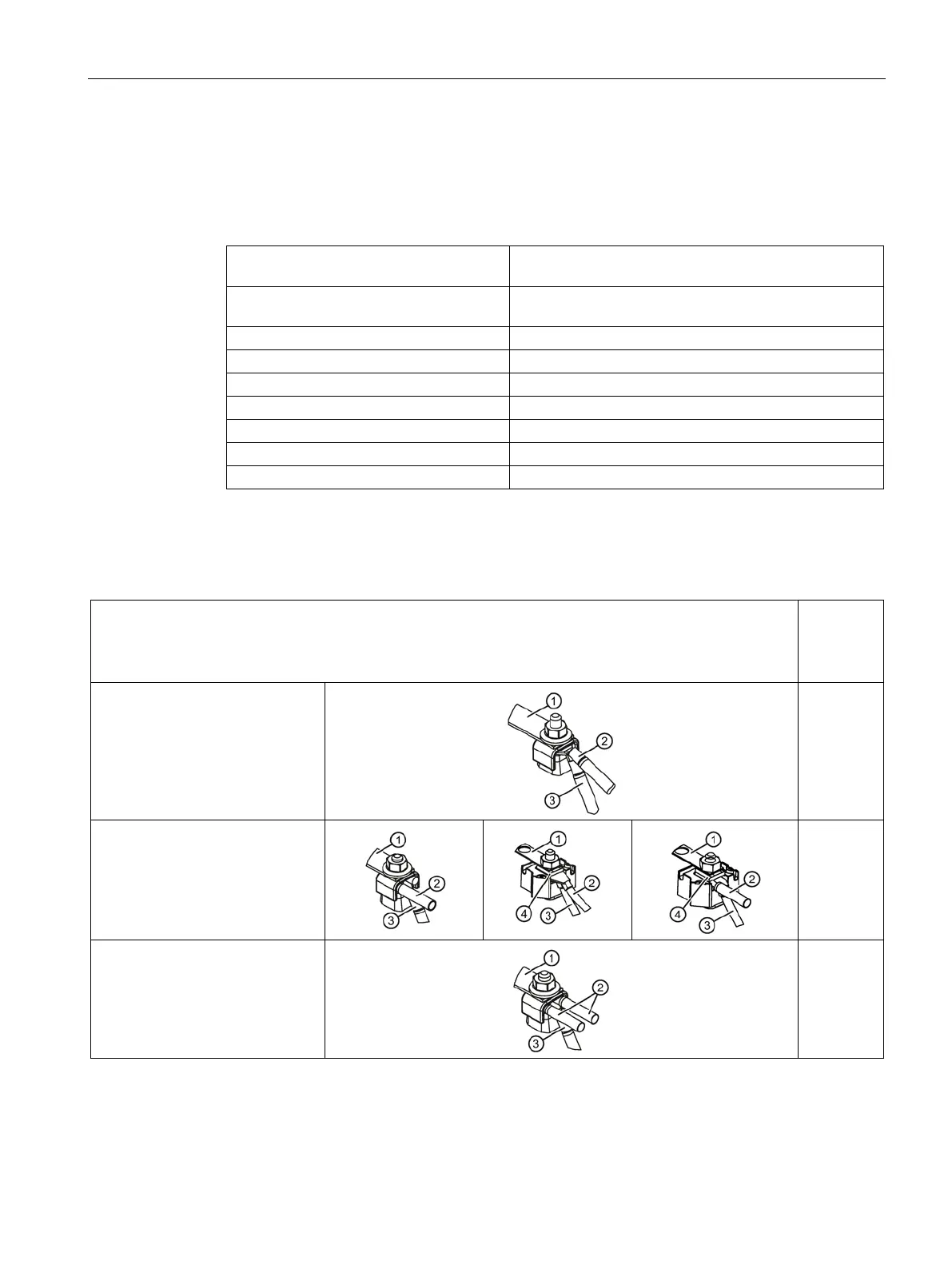

6.6.1 Type of conductor connection
Terminal board
Conductor
cross-
section
[mm²]
Connection with cable lug
DIN 46 234
Bend down the cable lug for the
connection.
... 25
Connection of an individual con-
ductor with terminal clamp
... 10
Connection of two conductors of
approximately the same thickness
with terminal clamp
... 25
①
Connecting bar
② Line supply cable
③ Motor connecting cable
④ Cover plate
