Electrical connection
8.3 System integration
S-1FT7 synchronous motors
Configuration Manual, 09/2018, A5E45099423B AA
391
Requirement for using the round connector M17
Natural cooling or water cooling
Differences in connection with round connector M17 compared to RJ45plus socket
For the motors with round connector M17, the following deviations result in comparison to
the RJ45 standard connector:
● The motor length increases by 5 mm and corresponds to the length of the motor without
DRIVE-CLiQ interface.
● The connector is implemented as a rotatable angled connector.
● The height of the obstructing contour from the center of the motor is 82 mm.

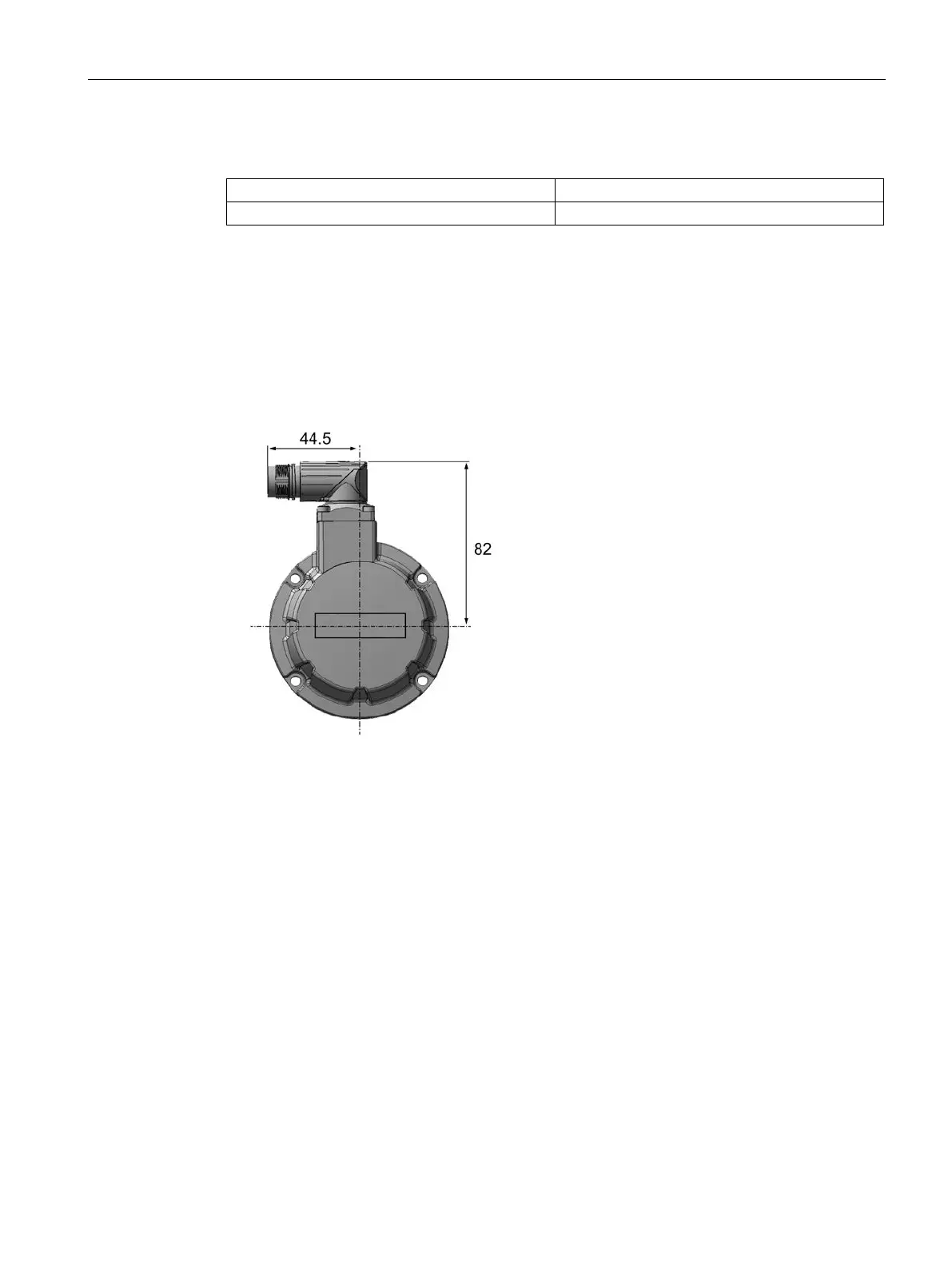

Figure 8-11 Installation dimensions encoder M17
● A signal cable that deviates from the standard is required (DRIVE-CLiQ round connector
M17, IP67)
Information on the connector pin assignment is provided in Chapter "PIN assignment of the
signal connectors (Page 393)".
