6.2 Fan/battery module
SIMOTION D4x5-2
Manual, 02/2012
97
4. Connect the cable connector of the new battery to the mating connector in the fan/battery
module and push the battery in.
&RQQHFWLRQIRUEDWWHU\FDEOH
FRQQHFWRU
%DWWHU\FDEOHFRQQHFWRU

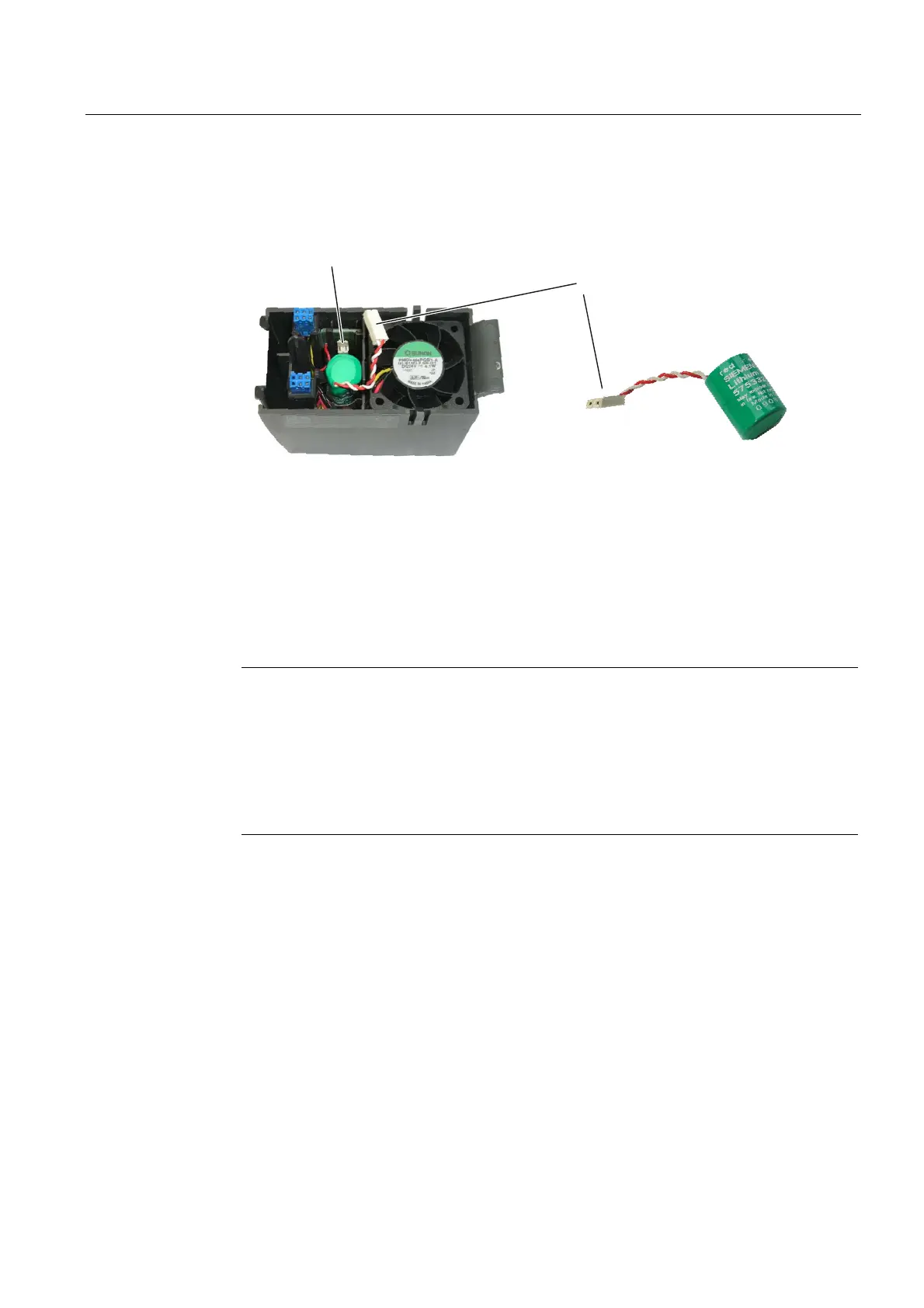

Figure 6-4 Changing the battery in the double fan/battery module
5. Hold the double fan/battery module at an angle to the front with the open side facing up
(battery visible).
6. Push the plastic lug into the cutout on the lower side of the Control Unit.
7. Tilt the double fan/battery module up until the front latch snaps into place.
The electrical connection between the double fan/battery module and the Control Unit is
made automatically.
Note
The fan/battery module should preferably be replaced in the POWER OFF state.
The battery should be replaced at least once every three years, at the latest when the
prewarning level is reached (see
SIMOTION D4x5-2
Commissioning and Hardware
Installation Manual).
Later replacement of the battery can result in a backup failure of the RTC (real-time clock)
and therefore loss of the date and time!
