Operator control (hardware)

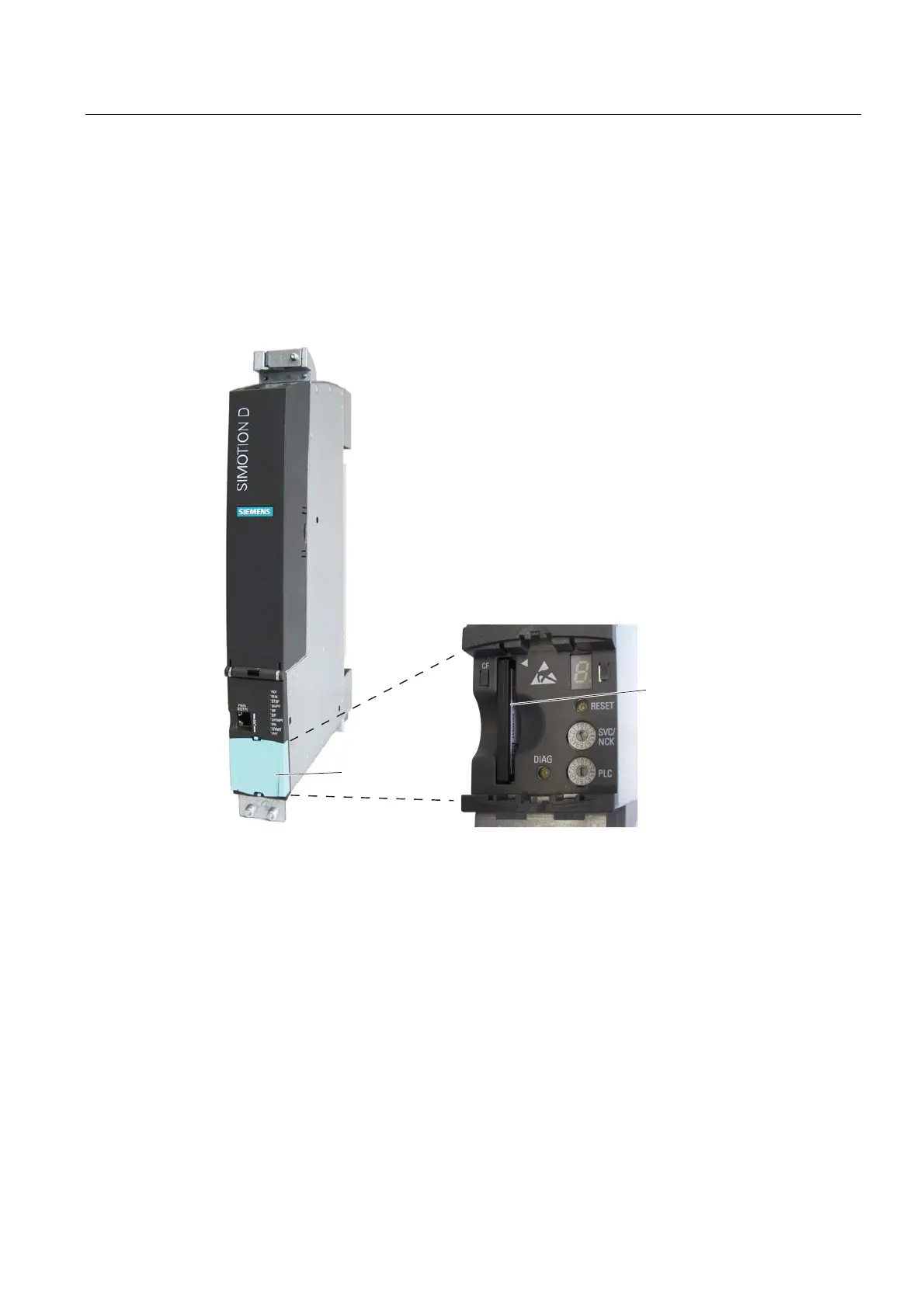

2.3 LED displays
D4x5
Manual, 03/2007 Edition
31
Meaning of the LED displays
This table describes the LEDs and their meaning.
Table 2-3 Error and status displays
LED Meaning
RDY ... indicates the state of the integrated drive.
RUN ... indicates that the user program is running.
STOP ... indicates that a user program is not running.
The technology packages are not active.
SU/PF ... indicates that the technology packages are active.
The user program is not active.
SF ... indicates an error state of the SIMOTION D4x5.
DP1 ... indicates the state of the PROFIBUS DP1 interface.
DP2 ... indicates the state of the PROFIBUS DP2/MPI interface.
OPT ... indicates the state of the option module (if available).
Note
While the SIMOTION D4x5 is ramping up, all LEDs are briefly illuminated in yellow.
Additional information
You can carry out a detailed diagnosis using a PG/PC and the Engineering System. For
information about diagnostics using LED displays, refer to the
SIMOTION D4x5
Commissioning Manual, /1/.
