Siemens SIMOTION D45 Series - DRIVE-Cliq Interfaces; Table 3-3 X100 - X103 (SIMOTION D425, D435) or X100 - X105 (SIMOTION D445)

Interfaces
3.2 DRIVE-CLiQ interfaces
D4x5
34 Manual, 03/2007 Edition
3.2 DRIVE-CLiQ interfaces
The DRIVE-CLiQ interfaces are used to connect the components assigned to the
SIMOTION D4x5 in the drive system (e.g., Active Line Module, Motor Modules, Terminal
Modules, and Sensor Modules from the SINAMICS family).
DRIVE-CLiQ has the following properties:
• Independent expansion of components possible
• Automatic detection of components by the control unit
• Standardized interfaces to all components
• Uniform diagnostics down to the components
• Complete service down to the components
• 24 V / 450 mA per DRIVE-CLiQ interface are provided for the connection of encoders and
measuring systems.
Note: The DRIVE-CLiQ cables with 24 V supply should only be used only for components
that require this (e.g., SMI).

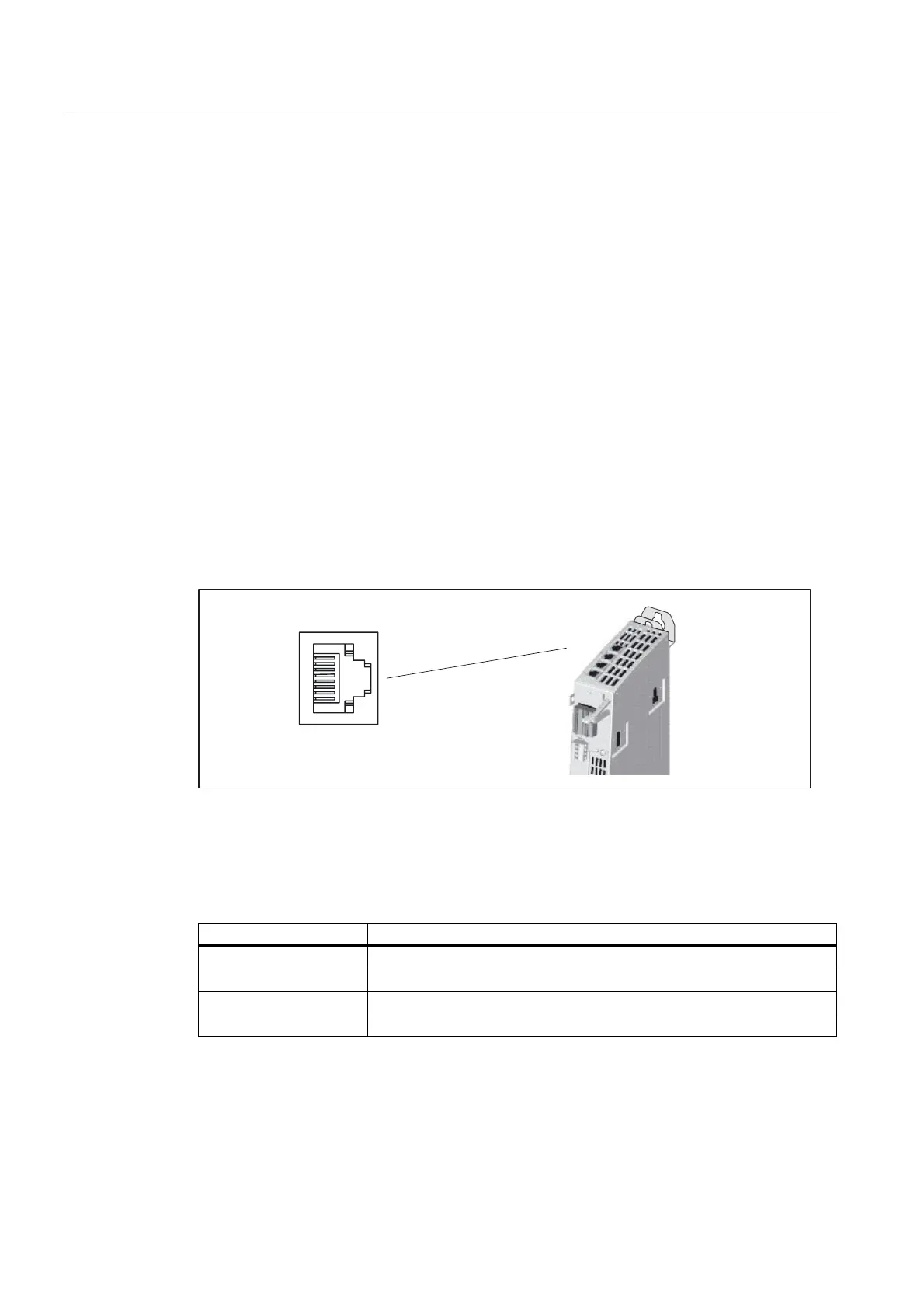

Position of connectors
B
A
8
1
Figure 3-1 DRIVE-CLiQ interface
Features
Table 3-3 X100 - X103 (SIMOTION D425, D435) or X100 – X105 (SIMOTION D445)
Features Type
Connector type DRIVE-CLiQ plug
Cable type DRIVE-CLiQ standard (inside the control cabinet)
Cable type MOTION CONNECT (outside the control cabinet)
Maximum cable length 100 m
