Siemens SIMOTION D45 Series - 4 Technical Data; Technical Data for D435 and D425; Table 4-1 Memory for System Data and the Memory Size; Table 4-2 Electrical Connection Values

D4x5
Manual, 03/2007 Edition
49
Technical Data
4

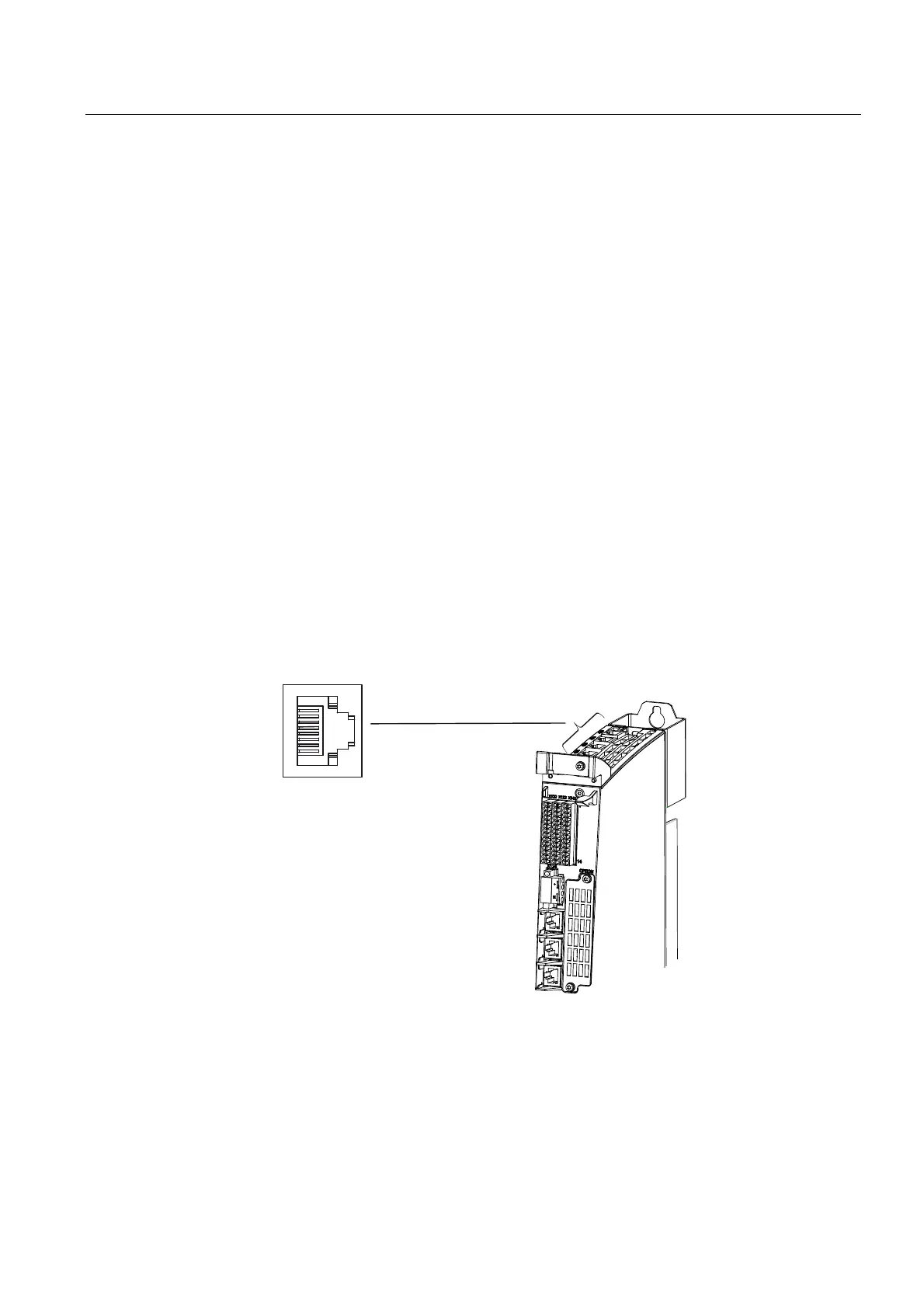

4.1 Technical data for D435 and D425
The following technical data are relevant for the D435 and D425.
Additional references
For information on system clocks and address ranges of the SIMOTION D435 and
SIMOTION D425, refer to the
SIMOTION D4x5 Commissioning Manual.
Memory for system data
Table 4-1 Memory for system data and the memory size
Data Memory size
Diagnostic buffer 200 messages
Connection values
Table 4-2 Electrical connection values
Parameters Value range
Supply voltage 24 VDC (permissible range: 20.4 to 28.8 V)
Current consumption from 24 V Typical current consumption: 0.6 A (inputs/outputs are
open; power is not being supplied to DRIVE-CLiQ I/O)
Power loss 15 W
Starting current 6 A
Dimensions and weight
Table 4-3 Dimension and weight of D435 and D425
Parameters Values
Dimensions W x H x D [mm]
• Without mounting and fan/battery module
• With mounting and fan/battery module
(max. expansion)
• 50x380x230
• 50x380x270
Weight of SIMOTION D [g] Approximately 2500
Weight of SIMOTION CF card [g] 7
