6.8 Terminal modules TM15 and TM17 High Feature
D4x5
Manual, 03/2007 Edition
65
6.8 Terminal modules TM15 and TM17 High Feature

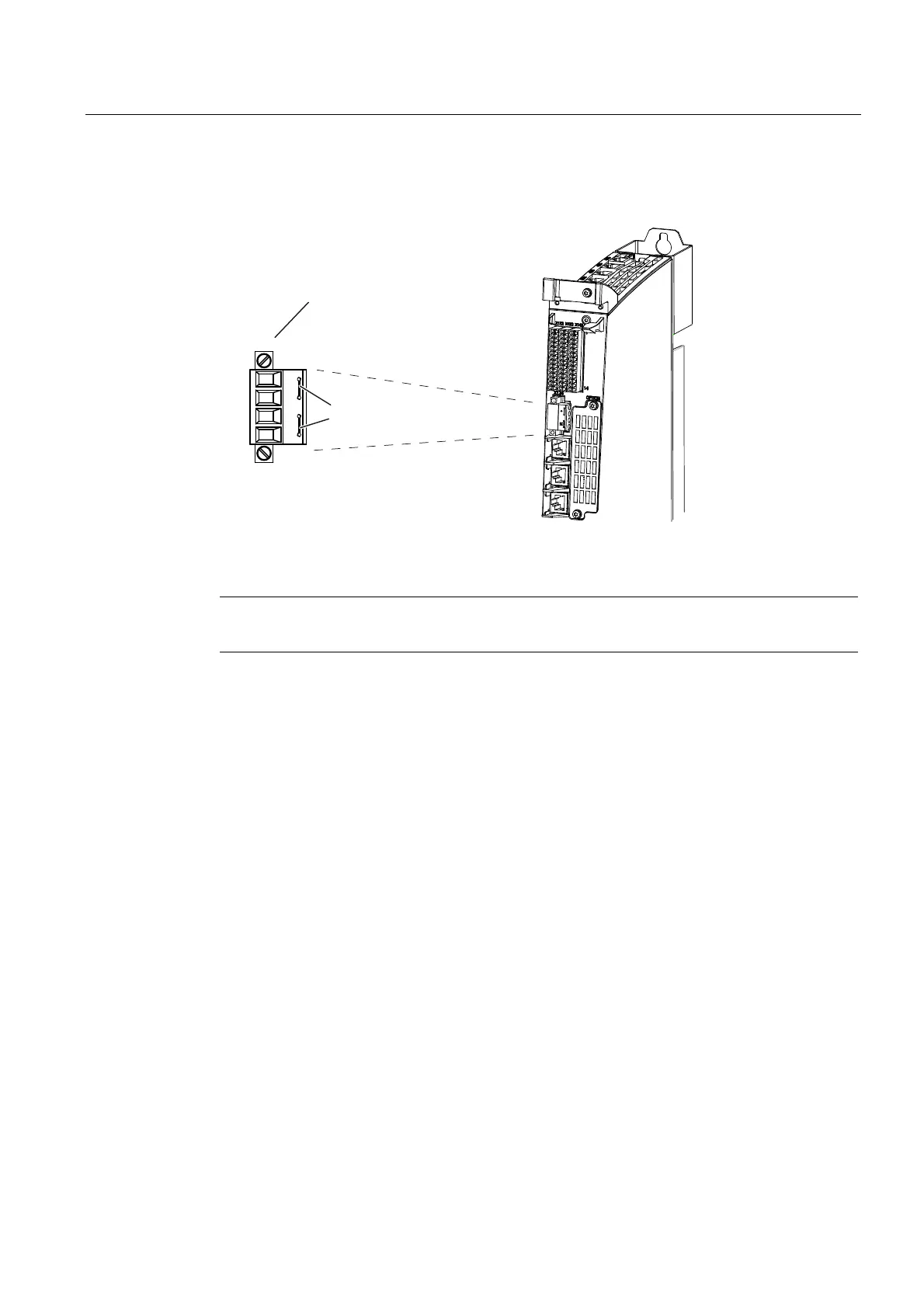

Features of TM15 and TM17 High Feature
The TM15 and TM17 High Feature Terminal Modules are used to implement inputs of
measuring inputs and outputs of output cams for SIMOTION D. In addition, these terminal
modules provide drive-related digital inputs and digital outputs with short signal delay times.
TM15 and TM17 High Feature are connected by means of DRIVE-CLiQ.
TM15
Each of the 24 electrically isolated DI/DO can be parameterized channel-by-channel as a
digital input (DI), digital output (DO), input of a measuring input, or output of an output cam.
TM17 High Feature
Each of the 16 DI/DO can be parameterized channel-by-channel as a digital input (DI), digital
output (DO), input of a measuring input, or output of an output cam.
TM17 High Feature has fewer I/O channels than TM15, but more functionality. TM17 High
Feature is distinguished by especially high resolution and accuracy as well as a
parameterizable input filter and enabling inputs (max. 6 units). Parameterized enable inputs
can enable measuring inputs or outputs of output cams (gate function). Due to their high
accuracy, the DI/DO channels of the TM17 High Feature are non-isolated.
Note
Caution
The 50 mm clearances above and below the components must be observed.
Additional references
More detailed information on the TM15 and TM17 High Feature can be found in the
Supplementary SINAMICS System Components for SIMOTION Manual and in the Terminal
Modules TM15 and TM17 High Feature
Commissioning Manual.
