2.3 LED displays
Arrangement of LED displays
The front panel of the SIMOTION D4x5 has eight LED displays arranged in two rows of four.
VHJPHQWGLVSOD\
/('GLVSOD\

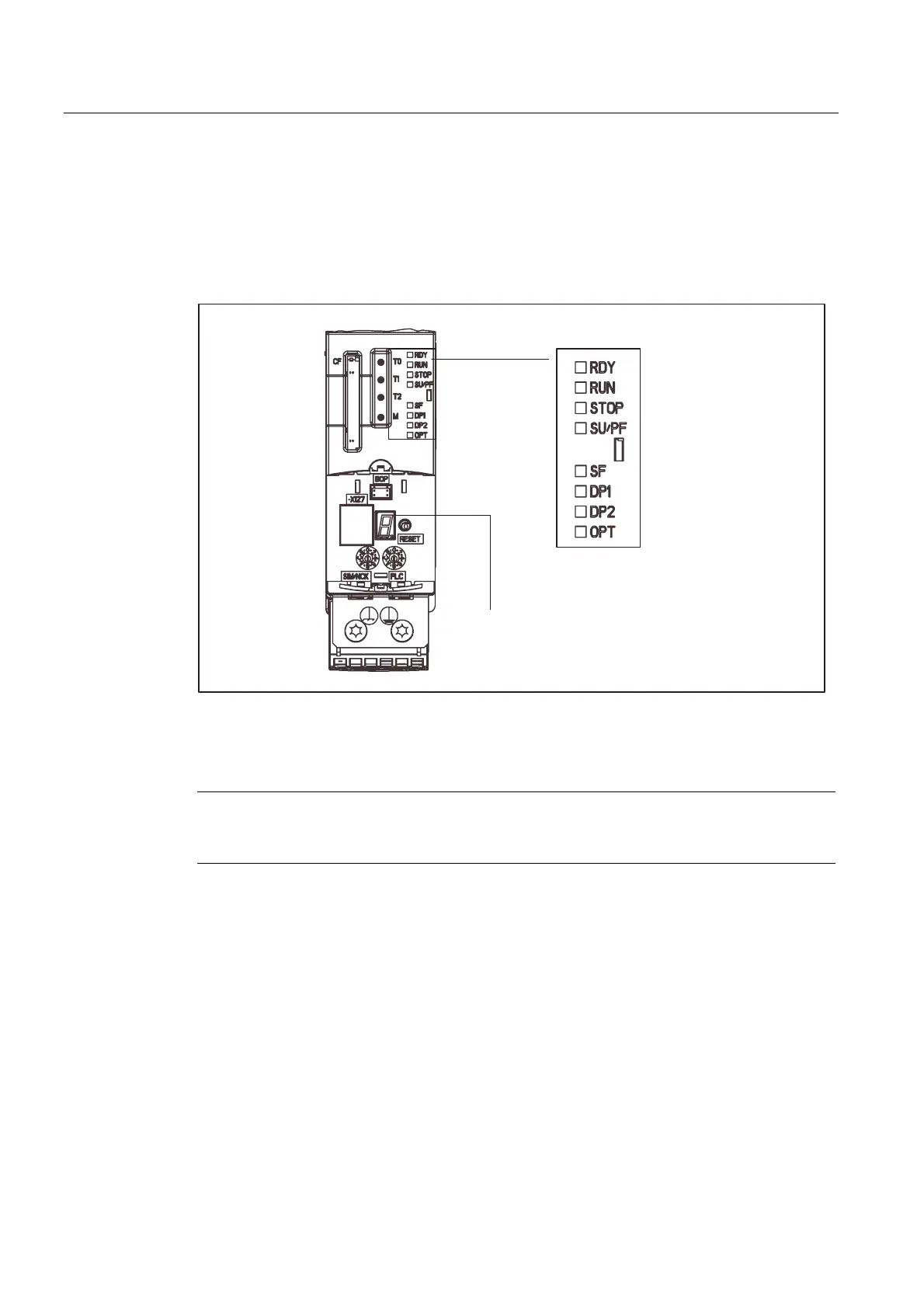

Figure 2-4 LED displays on the SIMOTION D4x5
Note
The 7-segment display is used exclusively for internal purposes and is not suitable for the
diagnostics.
